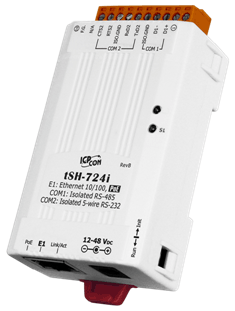

New Product Release: tSH-724i
Tiny Serial Port Converter with PoE, 1 Isolated RS-232 Port and 1 Isolated RS-485 Port
Jul. 30, 2018
-
- Introduction:
Following the success of the original tGW-700/tDS-700 modules, ICP DAS has continued to develop new functions for these products in order to provide increased support for a greater number of applications. The tSH-724i module is a serial port converter that provides a number of functions, including "Baud Rate Conversion" and "Modbus RTU/ASCII Conversion". The built-in web server provides easy configuration interface, and no console commands are required.
The tSH-724i also adds 3000 VDC isolation and +/-4 kV ESD protection component that diverts the potentially damaging charge away from sensitive circuit to protects the module and equipment from the sudden and momentary electric current.

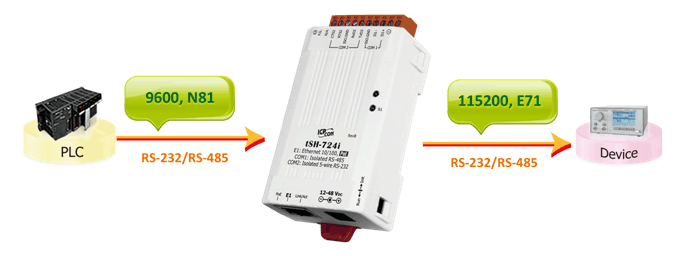

● Baud Rate Conversion: This function allows a single master device to communicate with slave devices using different baud rates and data formats. Most query-response protocols (half-duplex), e.g. DCON, are supported in the raw data mode. Full-duplex communication should also work when the data size is smaller than the built-in 512 bytes buffer on each serial port.
-

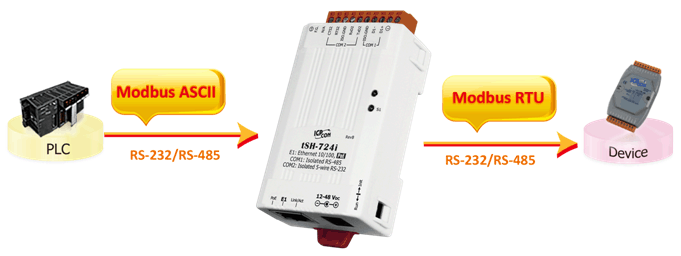

- ● Modbus RTU/ASCII Conversion: This function allows a single Modbus RTU/ASCII master device to communicate with Modbus RTU/ASCII slave devices using different protocols, baud rates and data formats.
-
-
