New Product Release: tSH-732i
tSH Product with Isolation Function

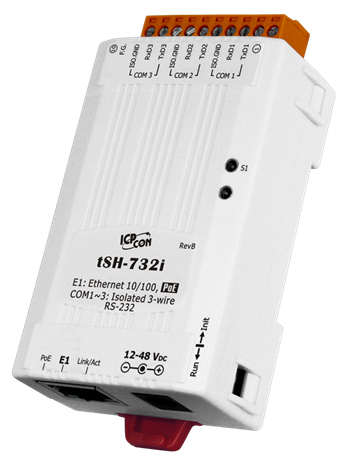

Tiny Serial Port Converter with PoE and 3 Isolated RS-232 Ports
Jun. 11, 2018
-
- Introduction:
Following the success of the original tGW-700/tDS-700 modules, ICP DAS has continued to develop new functions for these products in order to provide enhanced support for a greater number of applications. The tSH-732i module is a serial port converter that provides many functions, including "Baud Rate Conversion" and "Modbus RTU/ASCII Conversion". The built-in web server provides easy configuration interface, and no console commands are required.
The tSH-732i also adds 3000 VDC isolation and +/-4 kV ESD protection component that diverts the potentially damaging charge away from sensitive circuit to protect the modules and equipment from the sudden and momentary electric current.

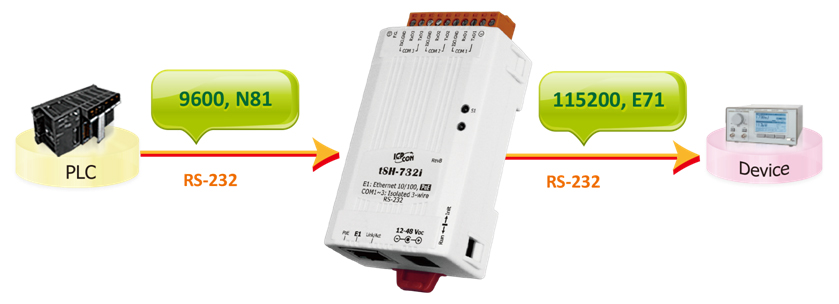

● Baud Rate Conversion: This function allows a single master device to communicate with slave devices using different baud rates and data formats. Most query-response protocols (half-duplex), e.g. DCON, are supported in the raw data mode. Full-duplex communication should also work when the data size is smaller than the built-in 512 bytes buffer on each serial port.
-

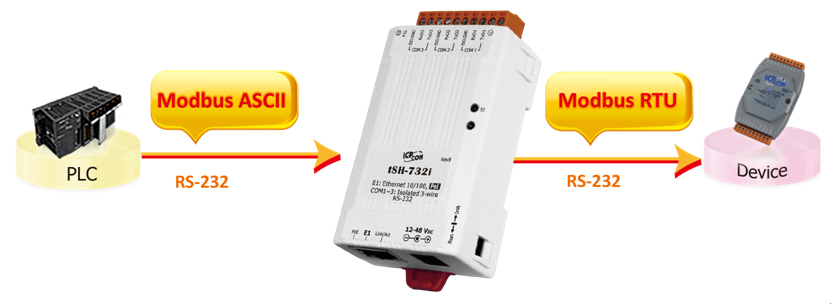

- ● Modbus RTU/ASCII Conversion: This function allows a single Modbus RTU/ASCII master device to communicate with Modbus RTU/ASCII slave devices using different protocols, baud rates and data formats.
-
-
Features:
