- New Product Release: PISO-CM200U
Two Standalone Intelligent CAN Communication Board
Jul. 11, 2017 -

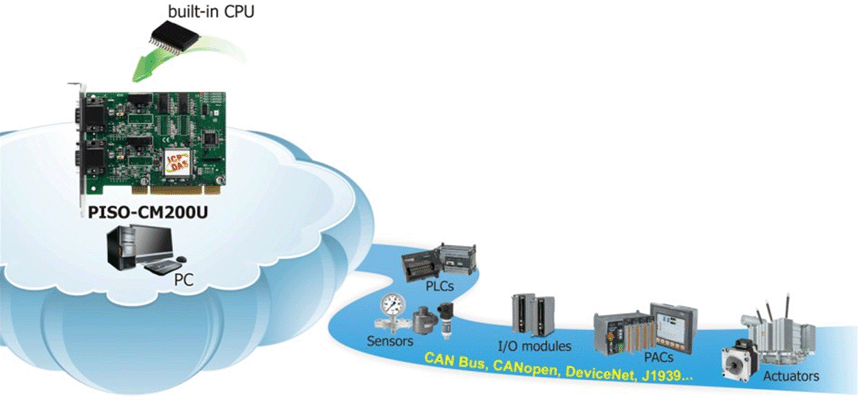

A Controller Area Network (CAN) is a serial communication system based on the CAN protocol that enables efficient distributed real-time control with high level security. The CAN protocol is especially suited for structuring "intelligent" device networks, as well as for building automatic control environments that contain sensors and actuators within a system or sub-system. The PISO-CM200U is a very powerful and economic solution for an active CAN board, it features two CAN channels and can be applied to a wide range of CAN applications. The 32-bit on-board microcontroller allows the filtering, pre-processing, storage of CAN messages (with a timestamp), and real-time transmission of CAN messages, as well as many other functions.
- Features:
- Embedded 32-bit microprocessor
- NXP 82C250 CAN transceiver
- Bosch C_CAN controller
- Supports both CAN 2.0A and CAN 2.0B specifications
- Storage Timestamp with a precision of at least ±1 ms
- Board number selectable via DIP switch
- Dual port RAM communication mechanism
- Embedded RTC (real time clock)
- Drivers provided for Windows XP/7/8.1/10
- Demos and libraries provided for C#.Net, VB.Net and VC++.Net
- Transmission/reception buffer for up to 256 CAN messages
- Allows a maximum of 5 sets of cyclic transmission messages
- Cyclic transmission message precision: ±1ms
- Intelligent PCI CAN Card Products TableModulePISO-CM200UPISO-CM100UPCM-CM100
Hardware PC Bus Interface Universal PCIUniversal PCIPCI-104On-board CPU 32-bit MCU80186, 80 MHz80186, 80 MHzCAN Interface Channel number 21CAN Transceiver NXP 82C250Baud Rate (bps) 10k ~ 1M bps and user-definedCAN Filter YesCAN Isolation 3000 VDC for DC-to-DC;
3000 Vrms for photo-couple1000 VDC for DC-to-DC; 2500 Vrms for photo-coupleTerminator Resistor Built-in 120 ΩCAN Interface Library/Demo Languages C#.Net,VB.Net, VC++.NetVB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0, C#.Net, VB.NetProtocol Windoes XP, Win7/8.1/10 (32-bit/64-bit OS)Windows 2K/XP, Win7 and Win 8.x (32-bit/64-bit OS)For more information of the products above, please refer to the following website:
http://www.icpdas.com/root/product/solutions/industrial_communication/fieldbus/can_bus/can_selection_guide.html
For more information of the PISO-CM200U, please refer to the following website:
http://www.icpdas.com/root/product/solutions/industrial_communication/fieldbus/can_bus/communication_board/piso-cm200u.html
