- Win-GRAF New Product: WP-5238
Win-GRAF based Palm-size WP-5000 PAC with WinCE 7.0 - Introduction:The Win-GRAF WP-5000 Series (WP-5238) is a new generation WinCE 7.0 based Win-GRAF PAC (Programmable Automation Controller) from ICP DAS. This series PAC is equipped with an AM3352 CPU (720 MHz) and running windows CE.NET 7.0 operating system. The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in micro SD, the Win-GRAF WP-5000 series can save application program, image file and data.
The PACs are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 or VS 2010 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical. -
Features:
- AM3352, 720 MHz CPU
- 256 MB SRAM and 256 MB Flash
- Windows CE 7.0 Professional
- Support Win-GRAF SoftLogic (IEC 61131-3)
- Ladder, FBD, ST, SFC, IL - Hard Real-Time Capability
- 64-bit Hardware Serial Number for Software Protection
- Small, Palm-size, and support to expand the I/O by inserting one XV-board
- 10/100/1000M Ethernet Port
- 4 Serial Ports (RS-232/485)
- Operating Temperature: -25 ~ +75 °C

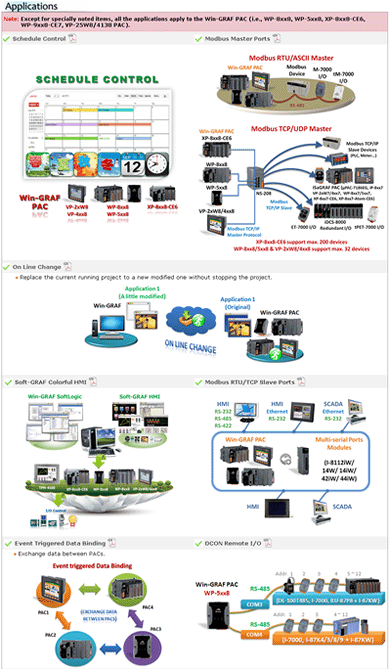

- Applications:The WP-5238 supports the following applications:
(Click the picture for more details.)
- More Win-GRAF related products:● The Win-GRAF Website:
http://www.icpdas.com/root/product/solutions/softplc_based_on_pac/win-graf/win-graf.html
● The WP-5238 Web Page:
http://www.icpdas.com/root/product/solutions/softplc_based_on_pac/win-graf/wingraf-pac/wp-5xx8.html
● The WP-5238 Data Sheet:
http://ftp.icpdas.com/pub/cd/win-graf-pac-cd/Napdos/Datasheet/wp-5xx8-english.pdf
● The WP-5238 support to expand the I/O by inserting one XV-board:
XV110, XV107, XV107A, XV110, XV110A, XV116, XV308, XV310
http://www.icpdas.com/root/product/solutions/hmi_touch_monitor/touchpad/xv-board_selection.html
