- New release: M2M 3G Remote Solution- Intelligent 3G Remote Terminal Unit- GT-540-3GWA, GT-540P-3GWA
-

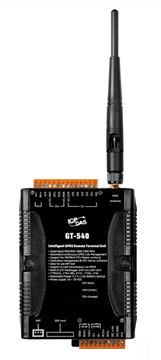

Intelligent 3G RTU Unit

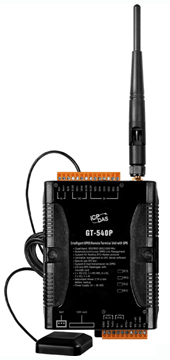

GT-540-3GWAIntelligent 3G RTU Unit with GPS
GT-540P-3GWA - ICP DAS releases new GT-540-3GWA Series which is the intelligent active 3G remote terminal unit. GT-540-3GWA series is a stand-alone with high cost-effective product and it was designed to suit most M2M 3G applications. Within high performance 32 bits CPU, it fits to harsh industrial environment. The GT-540-3GWA Series also features a 3G module, 6 Digital Inputs, 2 Digital Outputs, 1 Analog Input, 2 RS-232 ports, 1 RS-485 port and 1 micro SD interface. The GT-540P-3GWA provides additional GPS function. Besides its built-in I/O, users are allowed to add up to 3 Modbus RTU devices on RS-485 network, and transfer the local I/O, GPS, and Modbus devices’ data via WCDMA/GPRS connection with the RTU protocol defined by ICP DAS. The RTU device will automatically transfer data to remote M2M RTU Center by the defined period or DI/AI triggers. ICP DAS also provides multiple software including M2M RTU Center, M2M RTU Win32 API library and OPC server for RTU devices, so that user can easily build a system.
Other than those functions described above, the simple I/O linkage function of the GT-540-3GWA series can reach the real time control in the local field. It also has I/O data logger function which save I/O and GPS data in micro SD card. The GT-540-3GWA series also offers connection interface to external lithium battery in order to avoid the lost of the main power source.
For the software solution of GT-540-3GWA series, any remote monitoring system can be achieved easily and efficiently by using the M2M RTU API tool and M2M RTU center software. For SCADA system, the M2M.OPC server is provided to connect to SCADA by OPC interface.
Easy to Establish GPRS Network Applications

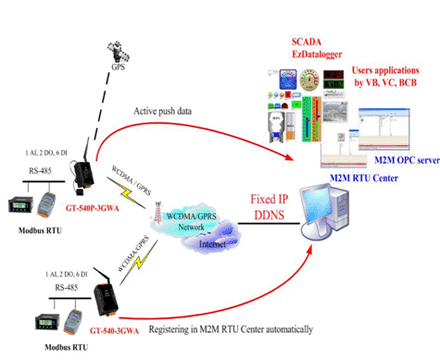

Applying the GT-540-3GWA series and M2M RTU center software, the dynamic IP addresses can be managed between them. The remote RTU product would connect to M2M RTU Center automatically. Therefore, all remote RTU devices can be managed by single centralized M2M RTU Center software with a fixed IP address.
Active data transmission
The GT-540-3GWA series with active I/O transmission mechanism can raise the communication. Unlike the traditional poll communication, it would transfer the data by the defined time, DI trigger or AI Hi/Lo alarm. In addition to improve the way of communication, that can also reduce the AP effort.
Modbus RTU device connectivity
The GT-540-3GWA series is built-in Modbus RTU protocol which allows user to add up to 3 Modbus RTU devices on it, so that Modbus RTU devices can be used in 2G/3G remote system.
Simple Local I/O link Control
There are I/O built-in RTU devices of ICP DAS. Therefore, these products can be the 2G/3G I/O devices. Expect for these local I/O data can be sent to the host PC, the I/O link function of them help users to do the simple control in local field. For example: the DI trigger or high/low AI alarm can driver the DO channel.
Built-in I/O Data Logging
RTU products provide an external micro SD interface. Users can set which built-in I/O need to record in micro SD memory card for one day in a single file.
External Power Interface
GT-540-3GWA series offers connection interface to external lithium battery in order to avoid the lost of power source.
BT12003.7V 1200 mAh Battery - ● Features:
- Support 4 GSM/GPRS frequencies 850/900/1800/1900
- Support 4 WCDMA frequencies 850/900/1900/2100
- Automatic/continuous WCDMA/GPRS Link Management
- Support Modbus RTU protocol to connect to Max 3 Modbus RTU devices via RS-485 port.
- Support M2M OPC server for SCADA system.
- Easy-to-use API tool for users to develop their applications by various program development tools
- Built-in I/O make RTU device be the 2G/3G I/O devices.
- Record I/O or GPS (GT-540P-3GWA only) data in micro SD card up to 4 GB.
- 1 RS-232, 1 RS-485, 6 DIs, 2 DOs, 1 AI, and 1 GPS (GT-540P-3GWA only)
- Support 3.7V external lithium battery.

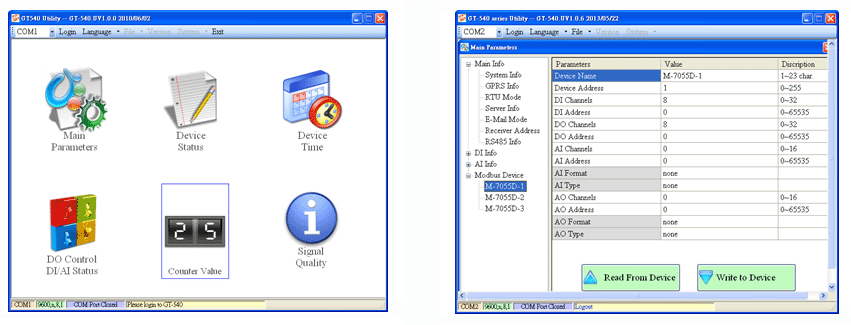

- ● GT-540-3GWA series Utility:Configuration tool with graphical user interface helps user to set up system and diagnose module easily.

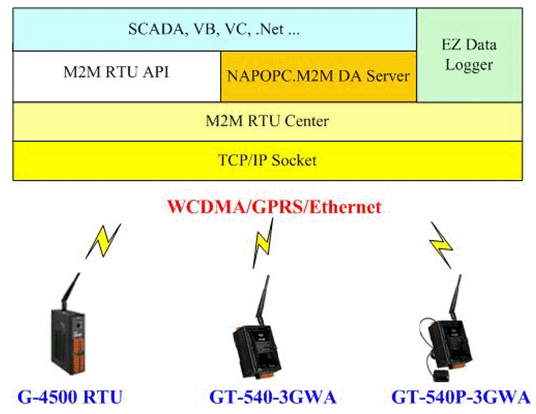

The GT-540-3GWA series Utility can be downloaded from http://ftp.icpdas.com/pub/cd/usbcd/napdos/gt-540-3gwa/software/ - ● Software solutions for GT-540-3GWA series
- ► M2M RTU management software- M2M RTU CenterThe M2M RTU Center provided by ICP DAS is a M2M (Machine to Machine) management software that has a strong core technology for handling data and lets the user save the trouble of dealing with large IO data. For detail information and downloading the software, please refer to: http://m2m.icpdas.com/m2m_rtu.html
- ► M2M RTU SDK- M2M RTU APIICP DAS M2M RTU Library is a software tool package for M2M RTU products. It provides the seamless connection with M2M RTU products (G-4500 RTU, GT-540, GT-540-3GWA…) of ICP DAS for the user-designed system. With the APIs in this library, programmer can access M2M RTU devices by public software development environments, like VC, VB, BCB, visual studio.Net…etc. It is easy to integrate these RTU devices to various applications including real the remote data, database management system.
For detail information and downloading the software, please refer to:
http://m2m.icpdas.com/m2m_rtu_api.html - ► OPC server for RTU series of ICP DAS- NAPOPC.M2M DA ServerICP DAS NAPOPC.M2M DA Server is an OPC software package operated as an OPC driver of a HMI or SCADA system. It provides seamless connection with RTU products (G-4500 RTU, GT-540, GT-540-3GWA…) from ICP DAS to SCADA system (InduSoft, Wonderware, iFix, Citec, LabView and etc) following OPC 1.0, OPC 2.0 Data Access Standards.
For detail information and downloading the software, please refer to:
http://m2m.icpdas.com/NAPOPC_M2M.html - ► EzDataloggerEZ Data Logger is a small data logger software. It can be applied to small remote I/O system. With its user-friendly interface, users can quickly and easily build a data logger software without any programming skill. EZ Data Logger support G-4500 RTU, GT-540 series and GT-540-3GWA series form version 4.3.1
For the detail and downloaded from:
http://www.icpdas.com/products/Software/ez_data_logger/ez_data_logger.html - Applications
-

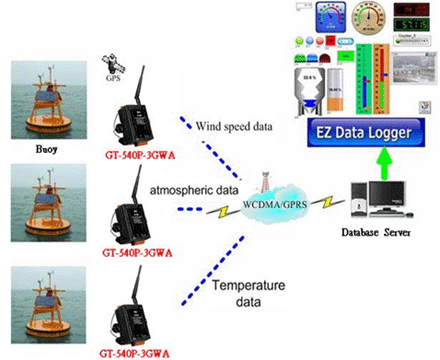

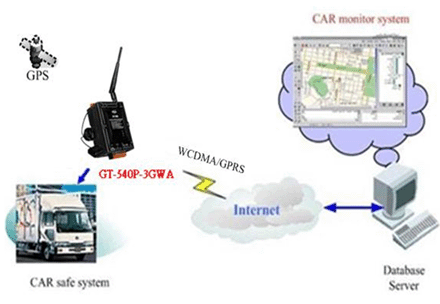

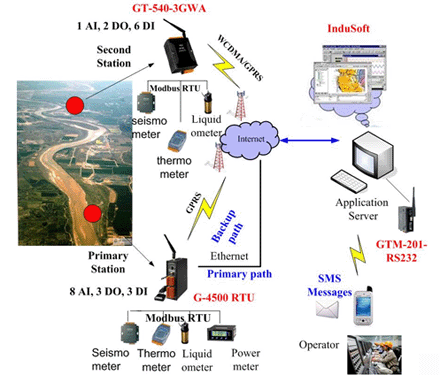

Vehicle monitoring systemRemote Environment data acquisitionHydrologic monitoring SystemApplication with GT-540-3GWA series
- Please refer to the following links for more these Products information:
GT-540-3GWA : http://m2m.icpdas.com/gt-540-3gwa.html
GT-540P-3GWA : http://m2m.icpdas.com/gt-540p-3gwa.html
Datasheet download from:
GT-540-3GWA : http://m2m.icpdas.com/datasheet/GT-540-3GWA.pdf
GT-540P-3GWA : http://m2m.icpdas.com/datasheet/GT-540P-3GWA.pdf
The related product information:
G-4500 : http://m2m.icpdas.com/g-4500_rtu.html
