home > product > solutions > pac > I/O Expansion Unit > I-87K4/I-87K5/I-87K8/I-87K9/I-87K4-G/I-87K5-G/I-87K8-G/I-87K9-G

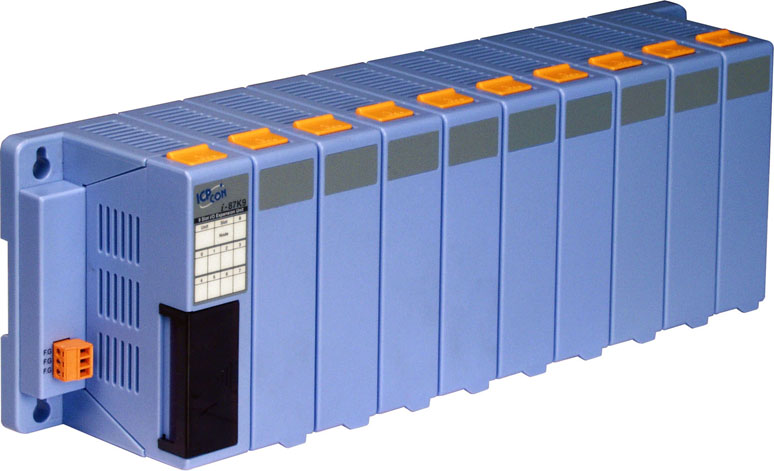

I-87K4/I-87K5/I-87K8/I-87K9
I/O Expansion Unit



Model: I-87K4 Model: I-87K8

Model: I-87K5 Model: I-87K9

  • RS-485 Port for Multi-Drop Topology
  • DCON Protocol
  • 4/5/8/9 I/O Slots for I-87K Modules
  • Operating Temperature: -25 to +75 °C

I-87Kn is an unit to expand I/O via the RS-485. It is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75°C). To simplify installation and maintenance of I/O modules.

There are more than 30 I/O modules supported with the unit, including analog input/output, digital input/output, counter, frequency I/O modules. We provide various software development kits (SDK) and demos, such as DLL, ActiveX, Labview driver, InduSoft driver, Linux driver, OPC server. The I-87K series I/O modules plugged in the I-87Kn can be easily integrated into variant software system.


Models I-87K4 I-87K5 I-87K8 I-87K9
Interface Type (RS-485)
Baud Rate 115200 bps Max.
Distance 1.2 km (4000 ft) Max.
Isolation 3000 VDC
ESD Protection +/- 4 K Contact Discharge and +/- 8 K Air Discharge
Communication Protocol DCON Protocol (ASCII format)
LED Display/Indicators
Power Yes
I/O Expansion Slots
Support Module Type Low profile I-87K module only
Slots Numbers 4 5 8 9
Mechanical
Dimensions (W x H x D, unit: mm) 230 x 75 x 111 230 x 75 x 111 354 x 75 x 111 354 x 75 x 111
Installation DIN-Rail or Wall Mounting
Environmental
Operating Temperature -25 to +75 °C
Storage Temperature -30 to +80 °C
Humidity 10 to 90 % RH (non-condensing)
Power
Input Range +10 to +30 VDC
Reverse Polarity Protection Yes
Frame Ground Yes
Consumption 2 W
Power Board Driving 20 W

I-87K4 4 slots I/O Expansion Unit
I-87K5 5 slots I/O Expansion Unit
I-87K8 8 slots I/O Expansion Unit
I-87K9 9 slots I/O Expansion Unit
I-87K4-G 4 slots I/O Expansion Unit with Gray Color
I-87K5-G 5 slots I/O Expansion Unit with Gray Color
I-87K8-G 8 slots I/O Expansion Unit with Gray Color
I-87K9-G 9 slots I/O Expansion Unit with Gray Color

KA-52F 24V/1.04A, 25 W Power Supply
DIN-KA52F 24V/1.04A, 25 W Power Supply with Din-Rail Mounting
DP-660 24V/2.5A , 5V/0.5A Dual Output Power Supply
DP-1200 24 V/5 A Power Supply
