The CAN (Controller Area Network) is a serial communication
protocol, and efficiently supports distributed real-time control
with a very high level of security. It is an especially suited
for networking "intelligent" devices as well as sensors
and actuators within a system or sub-system. In CAN networks,
there is no addressing of subscribers or stations in the conventional
sense, but instead prioritized messages are transmitted.

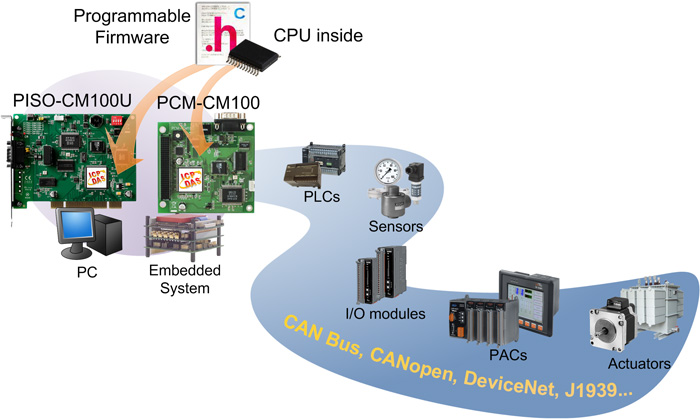

ICP DAS provides an open architecture
platform for CAN bus PCM-CM100-D. The PCM-CM100-D represents a very
powerful and economic solution of an active CAN board with one
CAN channels, covering a wide range of CAN applications. The 16-bit
on-board microcontroller allows, among many other features, the
filtering, preprocessing, and storage (with timestamp) of CAN
messages as well as the real-time transmission of CAN messages.
PCM-CM100-D also uses the new Phillips SJA1000T and Transceiver
82C250/251, which provide bus arbitration and error detection
with auto correction and re-transmission function. Under the effect
of the powerful microcontroller, this card can be made for one
CAN controller without losing data, even in systems with a high
bus load. Besides, equipped with integrated intelligence functions,
the PCM-CM100-D makes it is possible to preprocess CAN data streams,
thus relieving the PC of a considerable burden. As a result, real-time
requirements on the PC applications are drastically reduced. Due
to the state-of-the-art, it can be installed in a PCI-104 bus and supported truly ¡§Plug & play¡¨ technology.

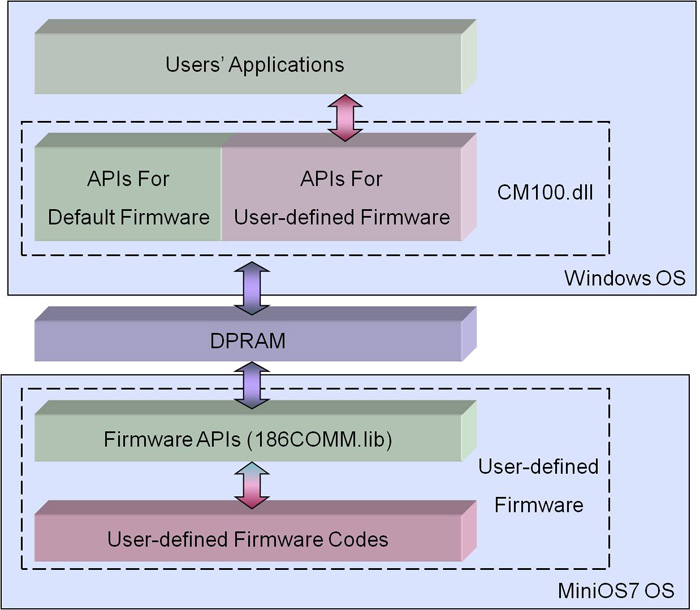

In addition,
users can develop their own CAN application by using the PCM-CM100-D

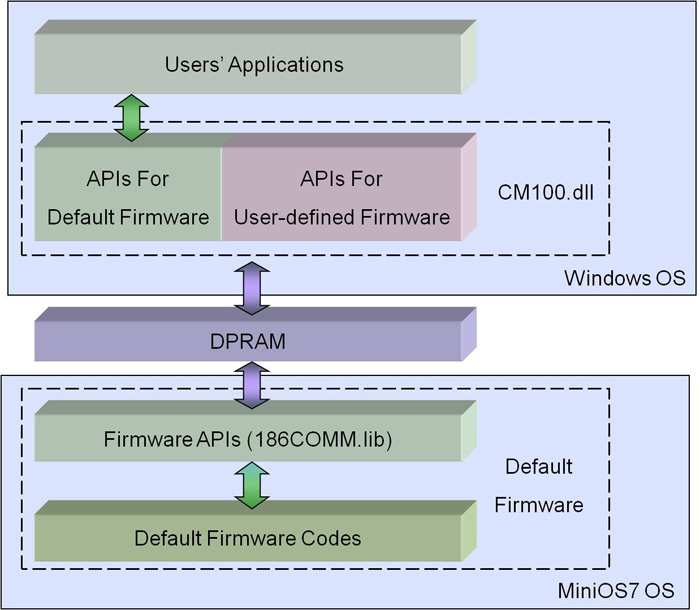

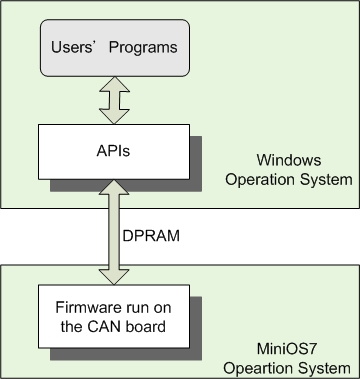

library. When the PCM-CM100-D is active, the data exchange between
users¡¦ application and can bus firmware is performed via the memory
mapping method of the PCM-CM100-D. |
