I-2534 ~ NEW ~
Industrial 4-port CAN bus Switch

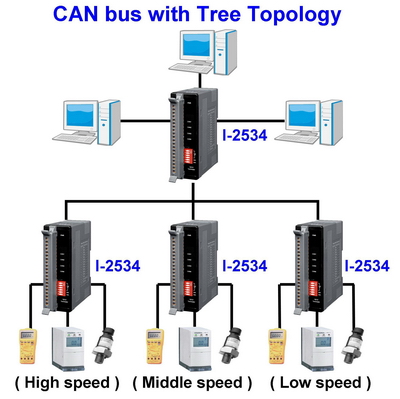

The I-2534 is one kind of CAN bus switch. There are four independent CAN channels which offer a flexible design of the start or tree network topology. This new topology could resolve the complex CAN bus application, like industrial machinery, building automation, vehicle automation, and etc. Furthermore the I-2534 integrates and exchanges data between different CAN network which has different baud rate. It helps users to extend the CAN network system. The I-2534 could increase the maximum CAN node count in a CAN network by splitting the CAN network into several subnets. In additional, the user-defined CAN baud rate and CAN filter configuration are also supported.

back

• Control System• Building Automation• Factory Automation• Distributed data acquisition

back

4 CAN communication ports
TJA1042 CAN transceiver
Compatible with CAN specification 2.0A and 2.0B
Fully compatible with the ISO 11898-2 standard
Baud rate : 5 k, 10 k, 20 k, 33.3 k, 50 k, 62.5 k, 83.3 k, 125 k, 250 k, 500 k, 800 k, 1 M bps and user-defined
CAN filter is configurable
CAN bus route path is configurable
100 data frames buffer for each CAN channel
Max. data flow up to 2500 fps (frames per second) for all CAN channels
Selectable baud rate by rotary switch
Selectable 120Ω terminator resistor by DIP switch
LED for CAN status
Utility tool for CAN filter, route path and user-defined baud rate configuration
2500 Vrms isolation on the CAN side
3 kV galvanic isolation between the power supply and CAN channel
4 kV ESD protection for each channel
Hi-Pot、Surge、EMI and EFT testing are all pass

back

Hardware
Controller	High Performance Microcontroller
RTC (Real Time Clock)	No
Watchdog	Watchdog IC
ESD Protection	4 kV Contact for each channel
CAN Interface
Transceiver	NXP TJA1042
Channel number	4
CAN Specification	ISO-11898-2, CAN 2.0A and CAN 2.0B
Baud Rate (bps)	5k, 10 k, 20 k, 33.3 k, 50 k, 62.5 k, 83.3 k, 125 k, 250 k, 500 k, 800 k, 1 M bps and user-defined
Baud Rate Selection	Selectable by rotary switch
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminator Resistor	Selectable 120Ω terminator resistor by DIP switch
Transmission Distance (m)	Depend on baud rate (for example, max. 1000 m at 50 kbps )
CAN Filter	Configurable by user
UART Interface
RS-232	1 port (for configuration)
RS-232 Connector	3-pin screwed terminal block (TxD, RxD, GND )
LED
Round LED	CAN status LED x 4 , Power LED x 1
Power
Input range	Unregulated +10 ~ +30 VDC
Power Consumption	3W
Mechanism
Installation	DIN-Rail
Casing	Flame-Resistant plastic case
Dimensions	32.3 mm x 99 mm x 77.5 mm (W x L x H)
Environment
Operating Temp.	-25 ~ 75 ℃
Storage Temp.	-30 ~ 80 ℃
Humidity	10 ~ 90% RH, non-condensing

back

2533 　　

back

I-2534

Industrial 4-port CAN bus Switch

back

CA-0910-C	9-pin Female D-sub & 3-wire CAN bus cable (1M)
SG-770	7/14 channel Surge Protector
4PCD-002	EMI Ferrite Split/Snap-On Core
M12A-5P-IP68	Field-Installation A-coded 5-pin Female
