HART
    HRT-711






    HART








HRT-711
~ Available soon ~

Modbus TCP to HART Gateway

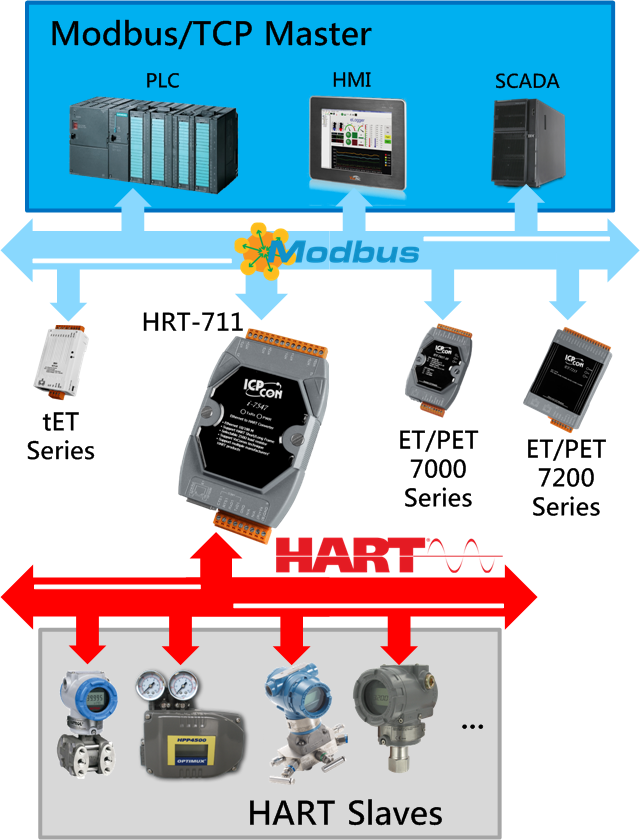

The HRT-711 Gateway is specially designed for the master device of HART protocol. It allows the Modbus master to access the HART devices. These HART devices may be a transmitter, an actuator and so forth. In addition, we also provide the utility software for users to configure the HRT-711. By using this module, users can integrate their HART devices into Modbus network easily.






  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc¡K






  • Support HART Short/Long frame
  • Support HART Burst mode
  • Allow two HART Masters
  • Working in point-to-point or multi-drop HART mode
  • Connecting up to 15 HART modules
  • Support Modbus TCP
  • Support Modbus Slave mode
  • Support firmware update via Com Port
  • Support on-line replacement of HART devices
  • Support acquire Long Frame Address automatically
  • Provide LED indicators
  • Built-in Watchdog
  • Mountable on DIN Rail






  • Provide the system and communication configuration of HRT-711
  • Provide the Modbus address table for HART command data
  • Provide the diagnostic information of HRT-711 module and HART device
  • Provide send / receive HART command to access HART device
  • Provide "Load/Save" module configuration file to apply to other HRT-711 quickly






Support the following Modbus commands.

Code Name Description
01 Read Coil Status Read the ON/OFF status of discrete outputs in the slave
02 Read Input Status Read the ON/OFF status of discrete inputs in the slave
03 Read Holding Registers Read the binary contents of holding registers in the slave
04 Read Input Registers Read the binary contents of input registers in the slave
05 Force Single Coil Write a single output to either ON or OFF in the slave
06 Preset Single Register Write an integer value into a single register in the slave
15 Force Multi. Coils Write each coil in the sequence of coils to either ON or OFF in the slave
16 Preset Multi. Registers Write a block of contiguous registers in the slave






Ethernet Interface
Controller 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
Connector RJ-45 x 1 (LED indicators)
UART Interface (For Configuration)
COM Port RS-232(3 wires)
Connector 3-pin screwed terminal block
HART Interface
HART Channel 1
HART Interface 2-pin screwed terminal block
HART Device 2-wired or 4-wired HART devices
HART Topology Point to Point or Multi-Drop
HART Data Only Digital Data
HART Frame Type Short and Long Frame
Burst Mode Supported
Max. HART Device 15
Loop Resistor 250 £[ resistor by Jumper
Isolation UL1577 Spec.
Power
Power supply Unregulated +10 ~ +30 VDC
Protection Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption 1 W
Mechanism
Installation DIN-Rail or Wall Mounting
Dimensions 72 mm x 35 mm x 121 mm (W x L x H) Detail
Environment
Operating Temp. -25 ¢J ~ +75 ¢J
Storage Temp. -30 ¢J ~ +85 ¢J
Humidity 5% ~ 95% RH, non-condensing







HRT-711 CR
Modbus TCP to HART Gateway (RoHS)
