XP-8x49-Atom-CE6 is the new generation Windows CE 6.0 based InduSoft PAC (Programmable Automation Controller) of ICP DAS. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop HMI (Human Machine Interface) and SCADA (Supervisory Control and Data Acquisition system.
XP-8000-Atom--CE6 series equips a Intel Atom Z500 Series, variant connectivity (VGA, USB, Ethernet, RS-232/RS-485), and 1/3/7 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules).
Its operating system, Windows Embedded CE 6.0 is an operating system with resource saving and real-time capability as their main features. To develop XP-8000-Atom--CE6, the time spent for development is not much especially with our SDK and pluggable IO modules.
|
| |
|
|
|
| |
|
| |
|
|
|
| |
 InduSoft Web Studio General Features |

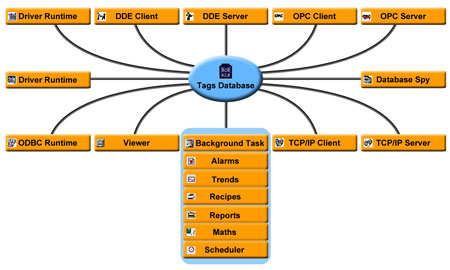

| IWS applications run on microcomputers connected in real-time to machines or processors through XP-8000-CE6 programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system. |
| |
 |
| |
| |
|
|
| InduSoft Integrated with XP-8000-Atom-CE6 |

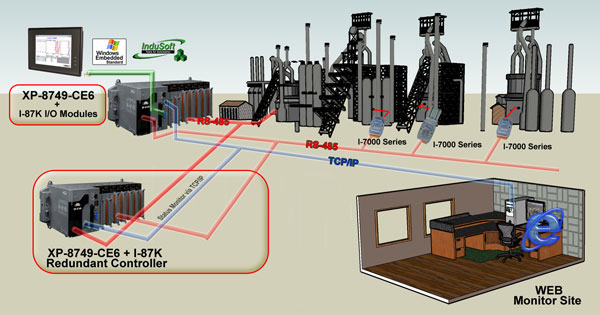

 Easy steps to accomplish your system. |
| Communication drivers are provided by ICP DAS. |
| Supports more than 200 Communication drivers such as Siemens, Omron and so forth. |
| InduSoft supports Modbus / OPC / DDE / TCP/IP / SNMP Client and Server. |
| Monitor and control system from both sites (WinPAC) and control room (PC) |
| |
 |
| |
| |
|
|

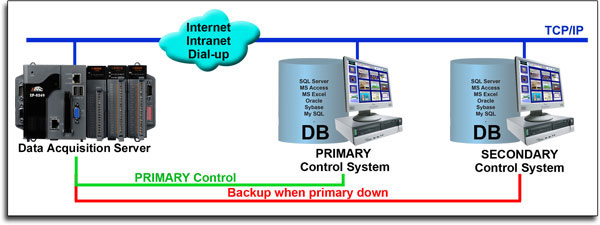

| Access Database Easily |
| Supports third-party SQL relational databases such as SQL Server, MS Access, Excel, Oracle ...etc. |
| Database connectivity from any platform supported by IWS or CEView, through the unique Studio Database Gateway. |
| Supports Secondary Database in the modes "Redundancy" or "Store and Forward" to increase the reliability of the system and avoid loss of data. |
| |
 |
| |
| |
|
|

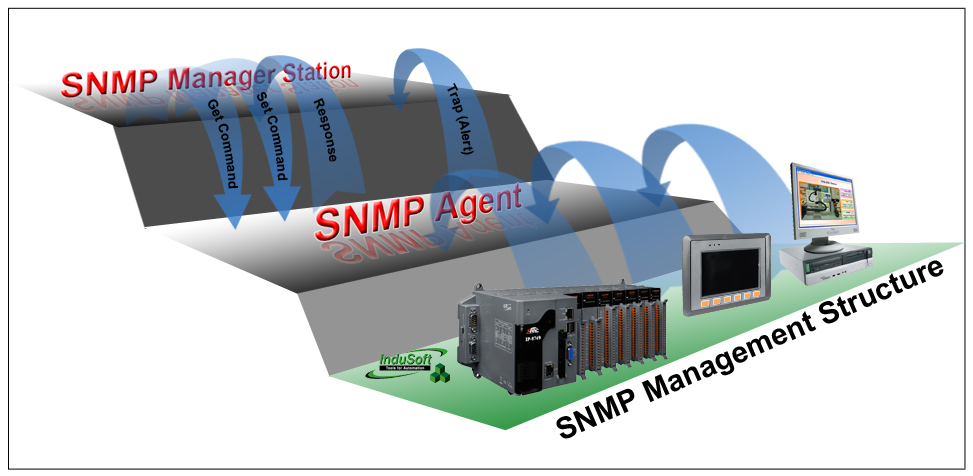

| SNMP Protocol Supported |
| I/O Status of WinPAC can be gathered via Internet by polling or inform actively(trap) mode to remote SNMP manager station. |
| WinPAC controller can be treated as a SNMP gateway to transfer the information including I/O and user-defined data to SNMP manager station. |
| Integrating I/O and Network information in SNMP manager station. |
| |
|
| |
|
|

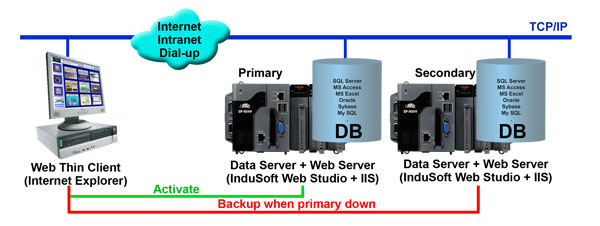

| Web Thin Clients |
| Use a regular WEB Browser (Internet Explorer) to host the application. |
| Requests online and history data from the Server where InduSoft Web Studio is running, becoming a CLIENT for the data. |
| Provide Multi-level security for applications, including the Internet and Intranet. |
| |
 |
| |
| |
|
|
| Useful Package Tool is Provided |
| ICP DAS has released a package tool for InduSoft. The package tool is integrated with several ActiveX objects and communication tools, including "GSM_ActiveX", "SHM_ActiveX", "COM_ActiveX" and "COM Port Communication Tool"...etc. |
| |
| By using ActiveX objects provided by ICP DAS in InduSoft, user can easily develop multi-function application. |
| Reduce the number of used drivers. |

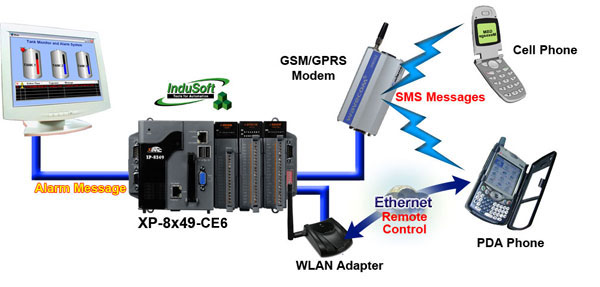

| To integrate with GSM/GPRS external modem easily. |
| |
|
|
|
|
|
|
| |
|
|
|
| |
back |
|
|
| |
-
1. |
Powerful CPU Module |
|
¡´ Intel Atom Z510 CPU (1.1 GHz) |
2. |
Memory size: |
|
¡´ DDP2 SDRAM (512 MB), Built-in Flash Disk (8 GB) |
|
¡´ EEPROM (16 KB), CF Card (2 GB) |
|
¡´ Dual Battery Backup SRAM (512 KB) |
3. |
VGA Port x 1, USB 2.0 Port x 4 |
4. |
Programmable LED indicator x 2 |
5. |
Audio with Microphone-In and Earphone-Out |
6. |
64-bit Hardware Serial Number |
7. |
Dual Watchdog Timers |
8. |
4/5 Serial Ports (RS-232/RS-485) |
9. |
Dual Giga bit Ethemet Ports (10/100/1000M) |
10. |
Redundant Power Input |
11. |
DIN-Rail or Wall Mounting |
12. |
Operating Temperature: -25 ~ +75 °C |
(¡K details) |
|
| |
|
|
|
| |
back |
|
|
| |
| Models |
XP-8141-Atom-CE6 |
XP-8341-Atom-CE6 |
XP-8741-Atom-CE6 |
| System Software |
| OS |
Windows CE 6.0 core version |
| .Net Compact Framework |
3.5 |
| Embedded Service |
FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5 |
| SDK Provided |
Dll for Visual Studio .NET 2005/2008 |
| Multilang uage Support |
English, German, French, Spanish, Russuan, Italian, Japanese, Simplified Chinese, Traditional Chinese |
| Preloaded Software |
InduSoft Web Studio V7.1 Service Pack 2(NTView Pro:300 Tags,3 Drivers,and 4 web Thin Clients) |
| CPU Module |
| CPU |
Intel Atom Z510 CPU (1.1 GHz) |
| System Memory |
512 MB DDR2 SDRAM |
| Dual Battery Backup SRAM |
512 KB (for 5 years data retain while power off) |
| Flash |
8 GB as IDE Master |
| EEPROM |
16 KB |
| Data Retention: 40 years; 1,000,000 erase/write cycles |
| CF Card |
2 GB (support up to 32 GB) |
| RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
| Programmable LED Indicator |
2 |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| Dual Watchdog Timers |
Yes |
| Rotary Switch |
Yes (0 ~ 9) |
| DIP Switch |
Yes (8 bits) |
| Audio |
Microphone-In and Earphone-Out |
| VGA & Communication Ports |
| VGA |
Yes, (resolution: 1024 x 768, 800 x 600, 640 x 480) |
| Ethernet (Giga bit) |
RJ-45 x 2, 10/100/1000 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 2.0 |
4 |
| COM 1 |
Internal communication with the high profle I-87K series modules in slots |
| COM 2 |
RS-232 (RxD, TxD and GND); non-isolated |
| COM 3 |
RS-485 |
D2+, D2-; self-tuner ASIC inside |
| Isolation |
3000 VDC |
| COM 4 |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated |
| COM 5 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated |
| I/O Expansion Slots |
| Slot Number |
1 |
3 |
7 |
| Hot Swapv* Will be available |
For High Profle I-87K Modules Only |
| Mechanical |
| Dimensions (W x L x H) |
169 mm x 132 mm x 125 mm |
231 mm x 132 mm x 125 mm |
355 mm x 132 mm x 125 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Ambient Relative Humidity |
10 ~ 90% RH, non-condensing |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
3.7 A, 5 V supply to CPU and backplane,
1.3 A, 5 V supply to I/O expansion slots,
25 W in total |
3.8 A, 5 V supply to CPU and backplane,
3.2 A, 5 V supply to I/O expansion slots,
35 W in total |
4.0 A, 5 V supply to CPU and backplane,
3.0 A, 5 V supply to I/O expansion slots,
35 W in total |
| Consumption |
16.6 W (0.69 A @ 24 VDC) |
16.8 W (0.7 A @ 24 VDC) |
18 W (0.75 A @ 24 VDC) |
|
| |
|
|
|
| |
back |
| |
|
|
|
| |
Product/License/Language |
Multi-Language |
Traditional Chinese |
|
XP-8049-Atom-CE6
|
CEView Lite Plus (Runtime) |
XP-8049-CE6-Atom-EN-300R |
XP-8049-CE6-Atom-TC-300R |
| CEView Standard (Runtime) |
XP-8049-CE6-Atom-EN-1500R |
XP-8049-CE6-Atom-TC-1500R |
|
XP-8349-Atom-CE6 |
CEView Lite Plus (Runtime) |
XP-8349-CE6-Atom-EN-300R |
XP-8349-CE6-Atom--TC300R |
| CEView Standard (Runtime) |
XP-8349-CE6-Atom-EN-1500R |
XP-8349-CE6-Atom-TC-1500R |
|
XP-8749-Atom-CE6 |
CEView Lite Plus (Runtime) |
XP-8749-CE6-Atom-EN-300R |
XP-8749-CE6-Atom-TC-300R |
| CEView Standard (Runtime) |
XP-8749-CE6-Atom-EN-1500R |
XP-8749-CE6-Atom-TC-1500R |
| ** The default InduSoft License is CEView Lite Plus (300 Tags and 3 Drivers) with 4 Web Thin Client Ends. |
|
| |
|
|
|
| |
back |
| |
|
|
|
| |
| Development and Run-Time License with Four Web Thin Client Ends |
| InduSoft-NT51200D |
Advanced Server (512,000 Tags, unlimited drivers) |
| InduSoft-NT64000D |
Control Room (64,000 Tags, 8 drivers) |
| InduSoft-NT4000D |
Operator Workstation (4000 Tags, 5 drivers) |
| InduSoft-NT1500D |
Local Interface (1500 Tags, 3 Drivers) |
| InduSoft-NT300D |
NTView PRO (1500 Tags, 3 Drivers) |
| Run-Time License with Four Web Thin Client Ends |
| InduSoft-CE1500R |
CEView standard for Windows CE Run-time (CE View)(1500 Tags, 3 drivers) |
| Additional Number of Web Thin Client End |
| InduSoft-CE |
4 (default), 8 |
|
| |
|
|
|
| |
back |
| |
|
|
|
| |
