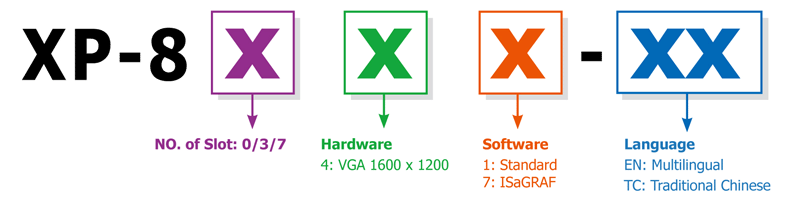

Standard XP-8000 (Windows Embedded Standard 2009 Inside)

The controller supports following software development tools:
1. DLLs of I/O modules for VS.NET 2005/2008
2. OPC server for SCADA software
Model OS Pre-Installed Software CPU Flash DDR SDRAM VGA Resolution Ethernet Port RS-232/RS-485 I/O Slot
  XP-8041 WES 2009 None LX 800
500 MHz
4 GB 1 GB 1600 x 1200 2 5 0
  XP-8341 4 3
  XP-8741 7

back


Will be available
Available soon
Will be phased out

InduSoft Based XP-8000 (Windows Embedded Standard 2009 Inside)

InduSoft Web Studio is a powerful, integrated collection of automation tools that includes all the building blocks needed to develop modern Human Machine Interfaces (HMI), Supervisory Control and Data Acquisition (SCADA) systems, and embedded instrumentation and control applications. To run InduSoft on XP-8000 controller is as simple as you are running on PC.

To know more about InduSoft, please refer to web page.
http://www.icpdas.com/products/Software/InduSoft/indusoft.htm

To know and purchase InduSoft license, please refer to InduSoft Ordering Information page.
http://www.icpdas.com/products/Software/InduSoft/order_info.html

back


Will be available
Available soon
Will be phased out

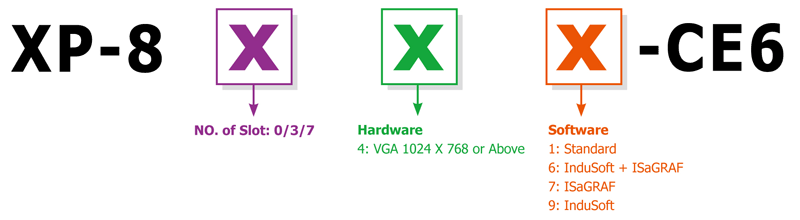

Standard XP-8000-CE6 (Windows CE6 R3 Core Inside)

The controller supports following software development tools:
1. DLLs of I/O modules for VS.Net 2003/2005/2008
2. DLLs of Modbus/RTU and Modbus/TCP for VS.Net 2003/2005/2008
3. OPC server (Quicker)
Model OS Pre-Installed Software CPU Flash DDR SDRAM VGA Resolution Ethernet Port RS-232/RS-485 I/O Slot
  XP-8041-CE6 CE 6.0 R3 Core None LX 800
500 MHz
4 GB 512 MB 1024 x 768
(or above)
2 5 0
  XP-8341-CE6 4 3
  XP-8741-CE6 7

back


Will be available
Available soon
Will be phased out

ISaGRAF Standard XP-8000-CE6 (Windows CE6 R3 Core Inside)

The controller fully supports all five of the IEC61131-3 standard PLC languages:
1. Ladder diagram,
2. Function block diagram,
3. Sequential function chart,
4. Structured text,
5. Instruction List plus flow chart.
It supports Modbus protocol and can link to distributed I/O modules with Modbus or DCON protocol via the RS-232/485 or Ethernet.
Model OS Pre-Installed Software CPU Flash DDR SDRAM VGA Resolution Ethernet Port RS-232/RS-485 I/O Slot
  XP-8047-CE6 CE 6.0 R3 Core ISaGRAF LX 800
500 MHz
4 GB 512 MB 1024 x 768
(or above)
2 5 0
  XP-8347-CE6 4 3
  XP-8747-CE6 7

back

Will be available
Available soon
Will be phased out

InduSoft Standard XP-8000-CE6 (Windows CE6 R3 Core Inside)

The controller can be used to develop following applications:
1. Human Machine Interfaces (HMI)
2. Supervisory Control and Data Acquisition System (SCADA)
3. Web server
Model OS Pre-Installed Software CPU Flash DDR SDRAM VGA Resolution Ethernet Port RS-232/RS-485 I/O Slot
  XP-8049-CE6 CE 6.0 R3 Core Indusoft LX 800
500 MHz
4 GB 512 MB 1024 x 768
(or above)
2 5 0
  XP-8349-CE6 4 3
  XP-8749-CE6 7

back

Will be available
Available soon
Will be phased out

ISaGRAF & InduSoft Based XP-8000-CE6 (Windows CE .NET 6.0 Inside)

The controller includes features of ISaGRAF and InduSoft.
Model OS Pre-Installed Software CPU Flash DDR SDRAM VGA Resolution Ethernet Port RS-232/RS-485 I/O Slot

XP-8046-CE6 CE 6.0 Indusoft + ISaGRAF LX 800
500 MHz
4 GB 512 MB 1024 x 768
(or above)
2 5 0

XP-8346-CE6 4 3

XP-8746-CE6 7

back
