WP-8139, WP-8439, WP-8839
WP-8149, WP-8449, WP-8849

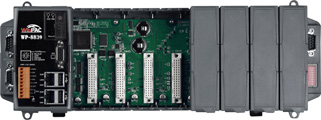

Standard WinPAC-8000 controller with InduSoft Inside. |
|
|
| |
|
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
| |
|
|
 |
|
 |
|
| |
Model: WP-8139 |
|
Model: WP-8139 |
|
Model: WP-8139 |
|
| |
|
|
|
|
|
|
| |
~NEW~ |
|
~NEW~ |
|
~NEW~ |
|
| |
|
|
 |
|
 |
|
| |

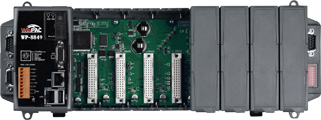

Model: WP-8149 |
|
Model: WP-8149 |
|
Model: WP-8149 |
|
| |
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
WinPAC-8xx9 Series (WP-8139/8439/8839, WP-8149/8449/8849) is the second generation Windows CE based InduSoft PAC of ICP DAS. It equips PXA270 CPU (520MHz) running a Windows CE .NET 5.0 operating system, variant connectivities (VGA, USB, Ethernet, RS-232/485) and 1/4/8 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules).
Its operating system,Windows CE 5.0, has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE 5.0 in the WinPAC-8000 gives it the ability to run PC-based Control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC ¡Ketc.
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
|
 InduSoft Web Studio General Features |
| IWS applications run on microcomputers connected in real-time to machines or processors through WinPAC programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system. |
| |
 |
| |
| |
|
|
| InduSoft Integrated with WinPAC-8000 |
 Easy steps to accomplish your system. |
| Communication drivers are provided by ICP DAS. |
| Monitor and control system from both sites (WinPAC) and control room (PC) |
| |
 |
| |
| |
|
|
| Communication Protocol |
| DCON Protocol for ICP DAS embedded controllers or I/O modules is provided. |
| Supports more than 200 Communication drivers such as Siemens, Omron and so forth. |
| InduSoft supports Modbus / OPC / DDE / TCP/IP / SNMP Client and Server. |
| |
 |
| |
| |
|
|
| Access Database Easily |
| Supports third-party SQL relational databases such as SQL Server, MS Access, Excel, Oracle ...etc. |
| Database connectivety from any platform supported by IWS or CEView, through the unique Studio Database Gateway. |
| Supports Secondary Database in the modes "Redundancy" or "Store and Forward" to increase the reliability of the system and avoid loss of data. |
| |
 |
| |
| |
|
|
| Web Thin Clients |
| Use a regular WEB Browser (Internet Explorer) to host the application. |
| Requests online and history data from the Server where InduSoft Web Studio is running, becoming a CLIENT for the data. |
| Provide Multi-level security for applications, including the Internet and Intranet. |
| |
 |
| |
| |
|
|
| Useful Package Tool is Provided |

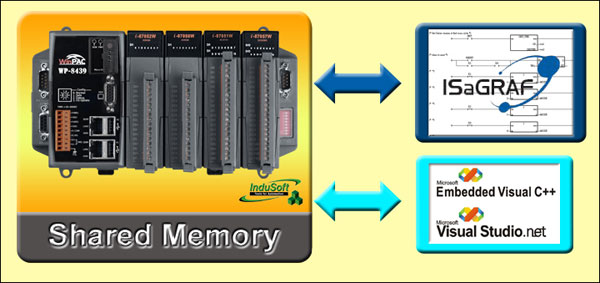

| ICP DAS has released a package tool for InduSoft. The package tool is integrated with several ActiveX objects and communication tools, including "GSM_ActiveX", "SHM_ActiveX", "COM_ActiveX" and "COM Port Communication Tool"...etc. |
| |
| By using ActiveX objects provided by ICP DAS in InduSoft, user can easily develop multi-function application. |
| Reduce the number of used drivers. |

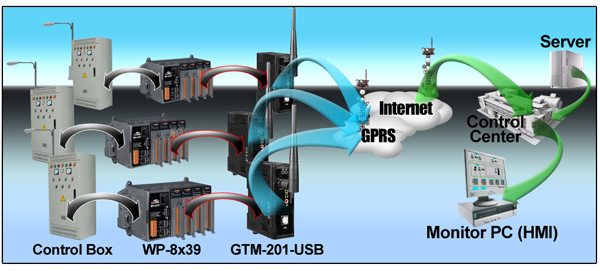

| To integrate with GSM/GPRS external modem easily. |
| |
|
| |
| Provide an easy way to exchange data between InduSoft and other Programs. |
| |
|
| |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
- Built-in VGA Port
- I/O Module Hot Swap Ability (Will be available)
(For High Profile I-87K Modules Only)
- Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
- Built-In Flash Disk (31 MB for WP-8x4x, 63 MB for WP-8x3x)
- Dual Watchdog Timer
- Dual Battery-Backup SRAM (512KB)
- Dual Ethernet Ports
- Redundant Power Input
- Ventilated Housing Design Allows Operation Between -25¢J ~ +75¢J
(¡K details) |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
| Models |
WP-8139 |
WP-8149 |
WP-8439 |
WP-8449 |
WP-8839 |
WP-8849 |
| System Software |
| OS |
Windows CE 5.0 |
| .Net Compact Framework |
2.0 |
| Embedded Service |
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK Provided |
Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Development Software |
| InduSoft Software |
InduSoft Web Studio v6.1 Service Pack 6 |
| Non-InduSoft |
Options: Microsoft EVC++4.0 or VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008) |
| Web Security |
| Web HMI |
Support Web HMI function, PC running Internet Explorer can access to the WP-8x49 via Local Ethernet or Internet or dial Modem, monitoring and control. |
| Security |
Web HMI supports three levels user name and password protection |
| CPU Module |
| CPU |
PXA270 or compatible (32-bit and 520 MHz) |
| SDRAM |
128 MB |
| Dual Battery Backup SRAM |
512 Kbytes (for 5 years data retain) |
| Flash |
WP-8x39: 128 MB (64, 63, 1) |
| WP-8x49: 96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry) |
| EEPROM |
16 Kbytes |
| Data Retention: 40 years; 1,000,000 erase/write cycles |
| microSD |
WP-8x39: with one 2 GB microSD card (can support 16 GB microSD card) |
| WP-8x49: with one 1 GB microSD card (can support 16 GB microSD card) |
| RTC (real time clock) |
Year-2000 compliance; seconds, minutes, hours, date of the month; month, year, valid up from 1980 to 2079 |
| 64-bit Hardware Serial Number |
Yes |
| Dual Watchdog Timer |
Yes |
| Programmable LED Indicator |
1 |
| Rotary Switch |
Yes (0 ~ 9) |
| DIP Switch |
- |
Yes (8 bits) |
| VGA & Communication Ports |
| VGA |
WP-8x39: resolution: 1024 x 768, 800 x 600, 640 x 480; with one extra GPU. |
| WP-8x49: resolution: 800 x 600, 640 x 480; without extra GPU. |
| Ethernet |
RJ-45 x 2, 10/100 Base-TX
(Auto-negotiating, LED indicators) |
| USB 1.1 (host) |
WP-8x39: 2 ports |
| WP-8x49: 1 port |
| COM 0 |
Internal communication with I-87K modules in slots |
| COM 1 |
RS-232 (to update firmware) (RXD, TXD and GND); Non-isolation |
| COM 2 |
RS-485 |
D2+, D2-; self-tuner ASIC inside |
| Isolation |
2500 VDC |
3000 VDC |
| COM 3 |
- |
RS-232/RS-485 (RXD, TXD, CTS, RTS and GND for
RS-232, Data+ and Data- for RS-485); Non-isolation |
| COM 4 |
- |
RS-232 (RXD, TXD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation |
| I/O Expansion Slots |
| Slot Number |
1 slot |
4 slots |
8 slots |
| (For High Profile I-87K Modules Only) |
| Hot Plug * Will be available |
I/O Module Hot Swap Ability (For High Profile I-87K Modules Only) |
| Mechanical |
| Dimensions (W x L x H) |
95 mm x 132 mm x 111 mm |
231 mm x 132 mm x 111 mm |
355 mm x 132 mm x 111 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environmental |
| Operating Temperature |
-25 ¢XC ~ +75 ¢XC |
| Storage Temperature |
-30 ¢XC ~ +85 ¢XC |
| Ambient Relative Humidity |
5% ~ 90% RH, non-condensing |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
1.0A, 5V supply to CPU and backplane, 0.6A, 5V supply to I/O expansion slots, total 8 W |
1.1A, 5V supply to CPU and backplane, 4.9A, 5V supply to I/O expansion slots, total 30 W |
1.2A, 5V supply to CPU and backplane, 4.8A, 5V supply to I/O expansion slots, total 30 W |
| Consumption |
7.3 W (0.3 A @ 24 VDC) |
9.1 W (0.38 A @ 24 VDC) |
9.6 W (0.4 A @ 24 VDC) |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| WP-8139-EN-G |
InduSoft based WinPAC-8000 with 1 I/O slots (English verison of OS) |
| WP-8439-EN-G |
InduSoft based WinPAC-8000 with 4 I/O slots (English verison of OS) |
| WP-8839-EN-G |
InduSoft based WinPAC-8000 with 8 I/O slots (English verison of OS) |
| WP-8139-TC-G |
InduSoft based WinPAC-8000 with 1 I/O slots (Traditional Chinese verison of OS) |
| WP-8439-TC-G |
InduSoft based WinPAC-8000 with 4 I/O slots (Traditional Chinese verison of OS) |
| WP-8839-TC-G |
InduSoft based WinPAC-8000 with 8 I/O slots (Traditional Chinese verison of OS) |
| WP-8139-SC-G |
InduSoft based WinPAC-8000 with 1 I/O slots (Simplified Chinese verison of OS) |
| WP-8439-SC-G |
InduSoft based WinPAC-8000 with 4 I/O slots (Simplified Chinese verison of OS) |
| WP-8839-SC-G |
InduSoft based WinPAC-8000 with 8 I/O slots (Simplified Chinese verison of OS) |
| |
| WP-8149-EN-G |
InduSoft based WinPAC-8000 with 1 I/O slots (English verison of OS) |
| WP-8449-EN-G |
InduSoft based WinPAC-8000 with 4 I/O slots (English verison of OS) |
| WP-8849-EN-G |
InduSoft based WinPAC-8000 with 8 I/O slots (English verison of OS) |
| WP-8149-TC-G |
InduSoft based WinPAC-8000 with 1 I/O slots (Traditional Chinese verison of OS) |
| WP-8449-TC-G |
InduSoft based WinPAC-8000 with 4 I/O slots (Traditional Chinese verison of OS) |
| WP-8849-TC-G |
InduSoft based WinPAC-8000 with 8 I/O slots (Traditional Chinese verison of OS) |
| WP-8149-SC-G |
InduSoft based WinPAC-8000 with 1 I/O slots (Simplified Chinese verison of OS) |
| WP-8449-SC-G |
InduSoft based WinPAC-8000 with 4 I/O slots (Simplified Chinese verison of OS) |
| WP-8849-SC-G |
InduSoft based WinPAC-8000 with 8 I/O slots (Simplified Chinese verison of OS) |
| |
| ** The default runtime license (CEView Lite Plus - 300 tags and 3 driver) is installed. ** |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| DP-665 |
AC 85~270V input, DC 24V/1.7A and 5V/0.5A output power supply |
| DP-660 |
AC 85~270V input, DC 24V/2.5A and 5V/0.5A output power supply |
| DP-1200 |
AC 85~270V input, DC 24V/5.0A output power supply |
| MDR-60-24 |
85 ~ 264VAC input, 60W Single Output Industrial DIN Rail Power Supply |
|
|
| |
|
|
|
|
|
| |
