L-8xx1 Series
|
|
| |
Selection Guide of Standard LinCon-8000 Compact Embedded Controller |
|
| |
| |
|
|
|
| |
|
|
|
| |
L-8031 |
|
|
| |
|
|
|
| |
L-8331 |
L-8341 |
|
| |
|
|
|
| |
L-8731 |

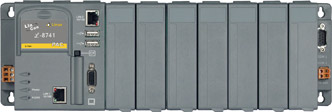

L-8741 |
|
| |
|
|
|
|
|
| |
Embedded Linux operating system is resident in the LinCon-8000 Series Embedded Controller. The Real-Time Kernel is adopted in the LinCon-8000 and therefore the control loop can be used with 1 ms in Timer. User's programs can be saved in external storage device, such as Compact Flash Card, USB device or RAM via ethernet. LinCon SDK is provided for users to develop LinCon I/O applications rapidly and easily when I-7000/8000/87k series I/O modules are used in the LinCon. Users can develop LinCon applications by using GNU C or Java Language. In the meanwhile, all kinds of servers and functions built-in make the LinCon more powerful and users will be able to operate LinCon to achieve their own project smoothly. With L-8x41 Serial, users can achieve the redundancy function and it will make the whole control system safer. |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
[ Development Environment ] |
|
LinCon SDK |
|
[ Built-in Server ] |
|
Web Server, Tomcat Server, Ftp Server, SSH Server, UPnP |
 |
[ Supported Communication ] |
|
Wireless LAN, PPP over Modem, GPRS, Ethernet, Dual LAN, VxComm, Expansion serial ports,
Support USB to Serial Converter --- 7560, 7561,7563 |
|
[ Supported Protocol ] |
|
CAN Bus Network, Industrial Modbus TCP/RTU |
|
[ Security ] |
|
Firewall, NAT, Unique Serial Number, VPN |
|
[ Java ] |
|
JVM, JIOD(Java I/O Driver) |
|
[ Interpreter ] |
|
Perl, PHP |
|
[ Database] |
|
MySQL |
|
[GUI ] |
|
GTK + Library |
|
[ Real-Time ] |
|
Real-Time Clock |
|
[ Other ] |
|
USB WebCam, RAM Disk, Resolution : 32 bit 800 x 600, 16 bit 1024 x 768, OEM LinCon Boot Logo |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
L-8031-G
L-8331-G
L-8731-G |
Standard LinCon
Series compact embedded controllers run Embedded Linux operating system
with LinCon SDK software development tools. |
L-8341-G
L-8741-G |
2-D (Dual USB,
Dual LAN) versions of LinCon, L-8x41 series support all OS features and include all software development tool as L-8x31. |
|
|
| |
|
|
| |
[ LinCon-8000 Learning Kit] |
|
| |
LINKIT
Programming LINUX applications to control I-8000 series digital and analog I/O modules.
|
| |
|
|
| |
Including: |
|
| |
| L-8731-G |
7-slot Standard Linux Embedded Controller |
| I-8017h |
14-bit 100K sampling rate 8-channel analog input module |
| I-8024 |
4-channel 14-bit analog output module |
| I-8040 |
32-channels digital input module |
| I-8041 |
32-channels digital output module |
| I-8077 |
16-channel Digital I/O Simulator Module |
| DN-37 |
I/O Connector Block with DIN-Rail Mounting and 37-Pin D-Sub Connector |
| DP-665 |
24V/1.7A 5V/0.5A Power Supply |
|
|
| |
|
|
| |
[ Optional Accessories ] |
|
| |
|
|
| |
