SST-2450 Wireless Modem Module RS-232/RS-485 Interface

SST-2450EXT is a spread spectrum radio modem with RS-232/RS-485 interface port. It is designed for data acquisition and control application between host and remote sensors. It is also useful for those applications, the cable wire is inconvenient to be installed. The SST-2450 can be used in not only peer to peer mode but also multi-point structure.

Based on direct sequence spread spectrum and RF technology operating In ISM bands. The Frequency Range is 2410.496MHz~2471.936MHz. The Channel Spacing is 4.096MHz.

Basically the SST-2450 is the same with SST-2400. The most different is the setting method. SST-2400 is set by jumper, and the SST-2450 is set by software utility. The new SST-2450 can also work together with this SST-2400 if you change the inside 8051 chip of SST-2400. Just contact us, then we will ship a new chip which is with a new firmware.

back

Press here to see the Wireless Application.

CE Certification

FCC Certification

Frequency Range: 2.4GHz (2410.496MHz ~ 2471.936MHz)
Channel Spacing: 4.096MHz
Output Power: 0.02W
Transmit power : 13dBm土2dBm
Modulation technique: GMSK
Radio technique: Direct sequence spread spectrum
Duplex Mode: TDD (for Full-duplex)
Number of channel: 16
Number of PN code: 16
PN code rate: 1.365 Mchips /sec.
Communication distance: Depend on external antenna, default is 300M
Maximum data transfer rate in asynchronous mode:
Full-duplex mode: 9.6Kbps
Half-duplex mode: 28.2K
Maximum data transfer rate in synchronous mode:
Full-duplex mode: 19.2Kbps
Half-duplex mode: 57.6K
Setting Method: Software setting

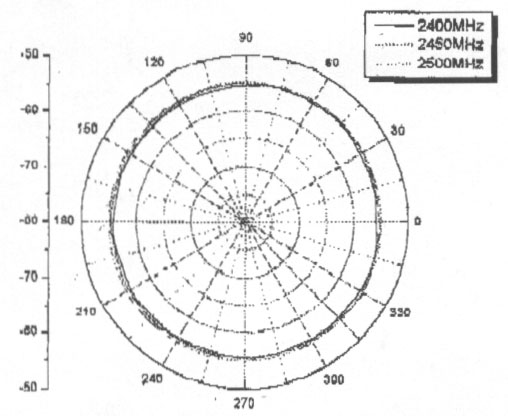

Antenna: Can bend
Antenna Connector : Reverse-Polarity SMA-Jack
Data Format: N,8,1 or E,8,1 dependent on software setting
Data bit error rate Antenna: < 1/1000@ -102dBm
Input voltage: 10~30Vdc
Input current: Typical less than 250mA
Consumption:
Transmission : 2W
Receive : 1W
Size: 106mm (L) x 76mm (W) x31mm (H)
Weight: 200g
Operating temperature: 0 ~ 50 ℃
Operating humility: 0~90%
SST-2450 can work together with SST-2400(Change the 8051 chip of SST-2400).
