8000 Series ISaGRAF based PAC(Programmable Automation controller)
The controller fully supports all five of the IEC61131-3 standard PLC languages:
1. Ladder diagram,
2. Function block diagram,
3. Sequential function chart,
4. Structured text,
5. Instruction List plus flow chart.

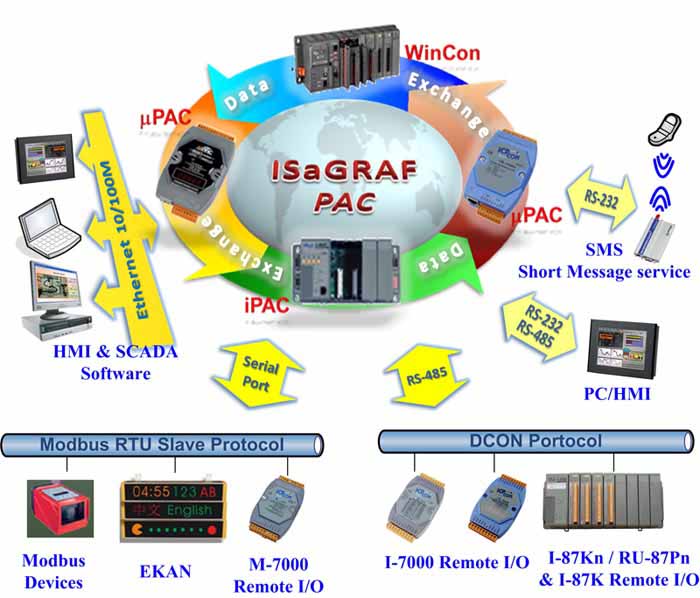

It supports Modbus protocol and can link to distributed I/O modules with Modbus or DCON protocol via the RS-232/485 or Ethernet. |
| Model |
CPU |
I/O Slot |
SRAM |
Flash |
COM1
(Note1) |
COM2
(Note2) |
COM3
(Note3) |
COM4
(Note4) |
Power
Consumption |
| I-8417 |
40M Hz |
4 |
512K |
512K |
RS-232 |
RS-485 |
RS-232/485 |
RS-232 |
3.9W |
| I-8817 |
40M Hz |
8 |
512K |
512K |
RS-232 |
RS-485 |
RS-232/485 |
RS-232 |
5.1W |
I-8437 |
40M Hz |
4 |
512K |
512K |
RS-232 |
Ethernet
(10- Base T) |
RS-232/485 |
RS-232 |
3.9W |
I-8837 |
40M Hz |
8 |
512K |
512K |
RS-232 |
Ethernet
(10- Base T) |
RS-232/485 |
RS-232 |
5.1W |
| I-8437-80 |
80M Hz |
4 |
512K |
512K |
RS-232 |
Ethernet
(10- Base T) |
RS-232/485 |
RS-232 |
3.9W |
| I-8837-80 |
80M Hz |
8 |
512K |
512K |
RS-232 |
Ethernet
(10- Base T) |
RS-232/485 |
RS-232 |
5.1W |
| iP-8447 |
80M Hz |
4 |
768K |
512K |
RS-232 |
Note5 |
RS-232/485 |
RS-232 |
6.7W |
| iP-8847 |
80M Hz |
8 |
768K |
512K |
RS-232 |
Note5 |
RS-232/485 |
RS-232 |
7.2W |
Note: The I-8437/ I-8837 has phased out on May 1, 2008. Please select the compatible I-8437-80 / I-8837-80.
Note1: RS-232: RXD, TXD, GND
Signal lines are RXD, TXD and GND
Program download port
Note2: RS-485: Data+, Data-; Self-tuner inside
Note3: RS RS-232: RXD, TXD, CTS, RTS, GND
or RS-485: Data+, Data-; Self-tuner inside
Note4: RS-232: RXD, TXD, CTS, RTS, DSR, DTR, DCD, RI, GND
Note5: iP-8447 & iP-8847 have COM2(RS-485) and dual Ethernet (10/100 Base T) |
|
|
|
