| ~NEW~ |
| |
 |
Model: I-8437-80 |
|
| |
 |
Model: I-8417 |
|
| |
 |
Model: I-8437-80-G |
|
| |
 |
Model: I-8417-G |
|
|
|
|
|
|
|
|
| |
|
| |
The speed of the ISaGRAF program running in the I-8437-80/I-8837-80 is about 2 to 4 times faster than I-8x37. |
| |
I-8x37-80 |
I-8x37 |
I-8x17 |
| CPU |
80186, 80 MHz |
80188, 40 MHz |
| SRAM |
512 KB |
| EEPROM |
2 KB |
| Ethernet port |
10 Base-T |
None |
Running Speed
(Normal PLC scan-time) |
2~25 ms, About 4 times faster |
5~100 ms |
|
| Note: The I-8437/I-8837 has phased out on May 1, 2008. Please select the compatible products I-8437-80/I-8837-80. |
| |
 for "Performance Comparison Table of ISaGRAF PACs" |
|
|
 ZigBee Wireless Solution |
 ISaGRAF PAC plus ZB-2550P and ZB-2551P RS-232/RS-485 Converters can apply wireless communication, reduce the wiring
cost, and achieve the mission of remote I/O control and data acquisition. |
| Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 110 for more information. |
| |
 |
| |
|
|
| |
| Stress Monitoring Application of Constructions |
ICP DAS releases effective VW sensor solution (Vibration Wire solution). It¡¦s useful for measuring the stress of constructions like
building, bridge, dam, etc.... |
| This solution has been successfully applied in some water dams monitoring system near the city Wuhan in China. |
| Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 091 for more information. |
| |
 |
| |
|
|
| |
| Data Acquisition Auto-Report System |
| VC++ 6.0, VB 6.0 and ISaGRAF demo programs are available. |
| ISaGRAF PACs can use UDP/IP Client protocol to auto-report acquisition data & control data to local or to remote internet PC/Server. |
| |
| Advantage: Each PAC in the different location doesn¡¦t need a fixed Internet IP. |
| Please click www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) - 065 for more information. |
| |
.png) |
| |
|
|
| |
| Communication |
The I-8xx7 can support various communication specifications. These different communication ports can provide different kinds of usage include RS-485 networking, controller to controller data-exchange, Modbus/Modbus TCP protocol, Remote I/O extension, linking with HMI/MMI, program download/upload, and debugging. |
|
| |
| |
I-8437-80/8837-80 |
I-8417/8817 |
| COM1 |
RS-232 |
RS-232 |
| COM2 |
10M Ethernet |
RS-485 |
| COM3 |
RS-232/RS-485 |
RS-232/RS-485 |
| COM4 |
RS-232 |
RS-232 |
|
| |
 |
| |

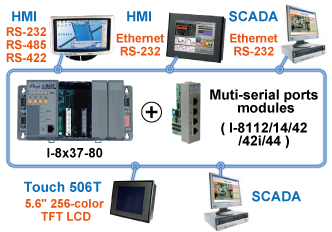

| Modbus RTU/TCP Slave Ports ( How to use ? ) |
| Modbus RTU (RS-232/485/422): max. 2 Modbus RTU Slave ports. |
| Modbus TCP/IP: max. 4 Modbus TCP Slave connections . |
| |
 |
| |
| Modbus RTU/ASCII Master Ports ( How to use ? ) |
| Modbus RTU/ASCII (RS-232/485/422): max. 2 Modbus RTU/ASCII Master ports. |
| |
 |
| |
|
|
| |
| Multi-Client Connection |
Each I-8437-80/8837-80 has an IP address and with a fixed Ethernet port No. of 502. With Modbus TCP/IP protocol, up to 4 PCs
can link to one I-8437-80/8837-80. With Modbus RTU Slave protocol, another PC or MMI can link to the COM1 (RS-232) port of the
I-8437-80/8837-80. Therefore, the maximum number of clients that can be linked is 5.
For the I-8417/8817, the maximum number of clients that can be linked is 2, one linking to COM1: RS-232 and the other linking to COM2: RS-485. |
|
| |
 |
| |
|
|
| |
|
| |
| RS-232/422/485 Expansion Modules |
|
| |
| Linking the I-7000 & I-87K Module for Remote I/O |
The I-8417/8437-80 provides 4 empty slots while the I-8817/8837-80 provides 8 empty slots on-board. There are about 100 choices of I/O local boards & remote modules.
Remote I/O modules are useful for some distributed applications. The I-8417/8817/8437-80/8837-80 can integrate with the
I-7000 and I-87K modules by linking one of its COM3 or COM4 Ports to each Remote I/O module. A max. number of 64 Remote I/O modules can be linked to one controller and max. number of 16 I/O channels for some Remote I/O modules.
( How to use ? ) |
|
| |
|
|
| |
| Data Exchange via Fbus or Ebus |
| |
| Fbus ( RS-485 Network ) |
Each I-8xx7 can use its other RS-485 port (COM3) to talk to each other via the Fbus communication mechanism. Fbus can be used to broadcast data to each controller or each controller can request to send or receive data from any other controller on the same Fbus network. |
|
| |
| Ebus ( Ethernet network) |
Each I-8437-80/8837-80 can use its Ethernet port (COM2) to talk to each other via the Ebus communication mechanism. When PC is talking with controllers via Ethernet, the controllers can
also talk to each other via the same Ethernet; It makes the configuration more flexible
and faster. |
|
| |
 |
| |
|
|
| |
| Data Log |
Data, date & time can be stored in S256, S512, and then PC can load these data via RS-232/RS-485 or Ethernet. (How to use ?) |
|
| |
 |
| |
|
|
| |
| Remotely Download Program: Modem_Link ( How to use ? ) |
The Modem_Link is a software designed by ICP DAS, which needs to be installed into the ISaGRAF software in your PC. The Modem_Link provides you a easy way to remotely download your ISaGRAF program to the I-8417/8817/8437-80/8837-80 via a general modem. And also you can monitor every I/O, data and if the program allows, you can control it via the Modem. |
|
| |
 |
| |
|
|
| |
| PWM : Pulse Width Modulation Output |
Parallel DO boards can do PWM output. Up to 8-ch for one controller. 500 Hz max. For Off=1 ms & On=1 ms. Available output square curve: Off = 1 ~ 32767 ms, On = 1 ~ 32767 ms. (How to use ?) |
|
| |
|
|
| |
| Parallel DI Counters |
Parallel DI board at slot 0 can accept counter input. Up to 500Hz with minimum pulse width > 1ms. Up to 8-ch for one controller. Counter value: 32-bit. (How to use ?) |
|
| |
|
|
| |
| Redundant Bus7000 : Redundant Communication of Remote I/O |
Two ISaGRAF PACs can link to remote I-7000 & I-87K I/O modules at the same time. Only one controller is active to control these Remote I/Os. If one is dead, the other one will take over the control of Remote I/Os. (How to use ?) |
|
| |
 |
| |
|
|
| |
| EKAN Modbus LED |
ICP DAS EKAN LED Display supports Modbus RTU (RS-485) & Modbus TCP/IP protocol. PC/HMI/SCADA and ICP DAS ISaGRAF PACs can display below message to the EKAN LED display. (How to use ?) |
|
| |
- English text
- Multi-Language in BMP format (For example, Chinese, Russian, Japanese, French, Spanish, ...)
- BMP picture (ME-122 must less than 16 x 96 pixel, while ME-124 must less than 16 x 192 pixel)
- Real and Integer data value
- Boolean value
- Regular message
- Emergency message
|
| |
 |
| |
|
|
| |

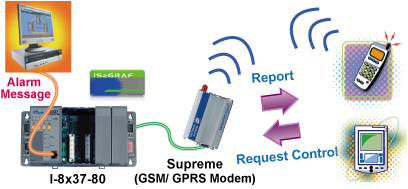

| SMS: Short Message Service |
| |
The ISaGRAF PACs can integrate with a GSM Modem to support SMS: Short Message Service. This allows user to request information or perform control tasks for the ISaGRAF PAC via his personal cellular phone. In addition, the PAC can also send information and alarms to user's cellular phone. (How to use ?) |
|
|
| |
 |
| |
|
|
| |
|
|
|
|
| Power Supply |
| Power Requirements |
10 ~ 30 VDC (unregulated), 20 W (when I/O slots are empty) |
| Protection |
Built-in power protection & network protection circuit |
| General Environment |
| Temperature |
Operating: -25 ~
+75 ¢XC ( -13 ~ +167 ¢X F) ,
Storage : -30 ~
+85 ¢XC ( -40 ~ +176 ¢X F) |
| Humidity |
5 ~ 95% RH (non-condensing ) |
| System |
| CPU |
I-8417/8817/8437/8837: 80188, 40 MHz or compatible
I-8437-80/8837-80: 80186, 80 MHz or compatible |
| Watchdog Timer |
Yes |
| RTC (Real Time Clock) |
Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079 |
| SRAM |
512 KB |
| FLASH Memory |
512 KB, Erase unit is 64 KB, 100,000 erase/write cycles |
| NVRAM |
31 bytes, battery backup, data valid up to 10 years |
| EEPROM |
2048 bytes, retention > 100 years. 1,000,000 erase/write cycles |
| SMMI |
5-Digit 7-Seg. LED, four push buttons & three LED on the front panel. lt can display message,
value, simulate input & output. |
| I/O Slots |
4 empty slots for I-8417/8437-80, 8 empty slots for I-8817/8837-80.
Accept parallel & serial I/O boards. |
| NET ID |
8-pin DIP switch to set NET ID as 1 ~ 255 |
| Serial Ports |
| COM1 |
RS-232: TxD,RxD,GND, Speed: 115200 bps max. Programs download port. |
| COM2 (for I-8417/8817) |
RS-485: D+, D-, 115200 bps max. Self-tuner ASIC inside, Programs download port. |
| Ethernet (for I-8437-80/8837-80) |
10 Mbps, NE2000 compatible, 10 Base-T, Programs download port. |
| COM3 |
Can be configured as RS-232 or RS-485, Speed: 115200 bps max.
RS-232:TxD,RxD,RTS,CTS,GND, RS-485: DATA+, DATA- |
| COM4 |
RS-232: Full modem signals, 115200 bps max.
TxD,RxD,RTS,CTS,DSR,DTR,CD,RI,GND. |
| Development Software |
| ISaGRAF Version 3 |
IEC 61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC |
| Motion Control |
I-8417/8817/8437-80/8837-80 can integrate with one I-8091(2-axis) or two I-8091(4-axis)
to do motion control. When doing motion control, I-8437-80/8837-80's Ethernet communication
is not available. |
| PWM Output |
| Pulse Width Modulation Output |
8-ch max. for one controller. 500HZ max. for Off=1 & On=1 ms
Output square curve: Off: 1 ~ 32767 ms, On: 1 ~ 32767 ms
Optional DO boards: I-8037, 8041, 8042, 8054, 8055, 8056, 8057, 8060, 8063, 8064, 8065,
8066,8068, 8069 |
| Counters |
| Parallel DI Counter |
8-ch. max. for 1 controller. Counter value: 32-bit. 500hz max. Min. pulse width > 1 ms
Optional DI boards: I-8040, 8042, 8051, 8052, 8053, 8054, 8055, 8058, 8063, 8077 |
| Serial DI Counter |
Counter input: 100Hz max. Counter value: 0 ~ 65535 (16-bit)
Optional serial I-87k DI boards: I-87051, 87052, 87053, 87054, 87055, 87058, 87063 |
| Remote DI Counter |
All remote I-7000 & I-87K DI modules support counters. 100Hz max. value: 0 ~ 65535 |
| High Speed Counter |
I-87082: 100 kHz max. 32-bit, I-8080:450 kHz max. 32-bit |
| Protocols |
| Modbus Slave Protocol |
Up to 2 COM Ports, COM1/3 for I-8x37-80 (& COM1/2 for I-8417/8817) default supports
Modbus RTU Slave protocol for connecting ISaGRAF, PC/HMI/OPC Server & MMI panels. |
Modbus TCP/IP Protocol
(for I-8437-80/8837-80) |
Ethernet port support Modbus TCP/IP Slave protocol for connecting ISaGRAF & PC/HMI. |
| Remote I/O |
One of COM3 or COM4 supports I-7000 I/O modules & (I-87K base + I-87K serial I/O boards or
RU-87P1/2/4/8 + I-87K High Profile I/O cards) as Remote I/O. Max. 64 Remote I/O module for
one controller. |
| Modbus Master Protocol |
Up to 2 COM Ports, COM1 or COM3 or COM4 ( or COM5 if multi-serial port boards are
plugged) supports Modbus Master protocol to connect to other Modbus Slave devices. |
| Fbus |
Built-in COM3 Port to exchange data between ICP DAS's ISaGRAF PACs. |
| Ebus (for I-8437-80/8837-80) |
To exchange data between ICP DAS's ISaGRAF Ethernet PACs via Ethernet port. |
| SMS: Short Message Service |
One of COM4 or COM5 can link to a GSM modem to support SMS. User can request
data/controller by cellular phone. The controller can also send data & alarms to user's cellular
phone. Optional GSM modems: GTM-201 ( 850/900/1800/1900 GSM/GPRS External Modem). |
| User-defined Protocol |
User can write his own protocol applied at COM1, COM3, COM4 (& COM5 ~ COM20 if
multi-serial port boards are plugged) by serial communication function blocks. |
| Modem Link |
Supports PC to remotely download & monitor the controller through a normal modem. |
| MMICON/LCD |
One of COM3 or COM4 supports ICP DAS's MMICON. The is featured with a 240x 64 dot LCD
and a 4 x 4 Keyboard. User can use it to display picture, string, integer, float, and input
a character, string, integer and float. |
| Redundant Bus7000 |
Two ISaGRAF PACs can link to remote I-7000 & I-87K I/O modules at the same time. Only one
controller is active to control these Remote I/Os. If one is dead, the other one will take over the control of Remote I/Os. |
| Battery Backup SRAM |
| I-8417/8817/8437-80/8837-80 can support up to 1024 retain variables with a S256/S512 plug in the socket of the back-plane. Data can also be stored in the S256/S512, and then PC can load these data via COM1 (or COM2 of I-8417/8817, or Ethernet of I-8437-80/8837-80).PC can also download pre-defined data to the S256/S512. Optional: S256: 256 KB, S512: 512 KB. |
|
| |
|
|
|
|
| I-8437-80 (blue) |
4 slots Faster CPU (80 MHz) Ethernet ISaGRAF PAC (
80186, 80 MHz, 10 Base-T) |
| I-8437-80G (gray) |
4 slots Faster CPU (80 MHz) Ethernet ISaGRAF PAC (
80186, 80 MHz, 10 Base-T) |
| I-8837-80 (blue) |
8 slots Faster CPU (80 MHz) Ethernet ISaGRAF PAC (
80186, 80 MHz, 10 Base-T) |
| I-8837-80G (gray) |
8 slots Faster CPU (80 MHz) Ethernet ISaGRAF PAC (
80186, 80 MHz, 10 Base-T) |
| I-8417 (blue) |
4 slots ISaGRAF PAC (
80188, 40 MHz) |
| I-8417-G (gray) |
4 slots ISaGRAF PAC (
80188, 40 MHz) |
| I-8817 (blue) |
8 slots ISaGRAF PAC (
80188, 40 MHz) |
| I-8817-G (gray) |
8 slots ISaGRAF PAC (
80188, 40 MHz) |
|
| |
|
|
|
|
| Development
Software |
|
| ISaGRAF-256-E |
ISaGRAF Workbench Software Ver.3 (256 I/O Tags) with One Application Book (English version) and one USB Dongle |
| ISaGRAF-256-C |
ISaGRAF Workbench Software Ver.3 (256 I/O Tags) with One Application Book (Chinese version) and one USB Dongle |
| ISaGRAF-32-E |
ISaGRAF Workbench Software Ver.3 (32 I/O Tags) with One Application Book (English version)
ReadMe
Note: Do not offer upgrade service from ISaGRAF-32 to ISaGRAF-256 |
| ISaGRAF-32-C |
ISaGRAF Workbench Software Ver.3 (32 I/O Tags) with One Application Book (Chinese version)
ReadMe
Note: Do not offer upgrade service from ISaGRAF-32 to ISaGRAF-256 |
| Application
Book |
|
| ISaGRAF Book-E |
ISaGRAF Application Book (English version) |
| ISaGRAF Book-C |
ISaGRAF Application Book (Chinese version) |
| Power Supply |
|
| DP-660 |
24 V/2.5 A , 5 V/0.5 A Dual Output Power Supply |
| DP-665 |
24 V/2.5 A , 5 V/0.5 A Dual Output Power Supply |
| ACE-540A
(DIN-540A) |
24 V/1.7 A Output Power Supply (DIN-540A: ACE-540A with DIN-Rail Mount) |
| SRAM |
|
| S256 |
256 KB battery backup SRAM |
| S512 |
512 KB battery backup SRAM |
| Ethernet Switch |
|
| NS-205 CR |
Unmanaged 5-port Industrial Ethernet Switch (RoHS) |
| NS-208 CR |
Unmanaged 8-port Industrial 10/100 Base-T Ethernet Switch (RoHS) |
| Remote I/O Unit |
|
| RU-87P1/2/4/8 CR |
Remote Intelligent I/O Expansion Unit
( It used to expand I-87K series I/O modules over the RS-485 ) |
Note1:
The I-7000 & I-87K series provides cost-effective protection and signals conversion for a wide range of valuable industrial control signals and control systems. Our product line includes RS-232 to RS-485 converter, digital I/O, timer/counter, Data Display, and application programs. I-7000 modules are good for a small amount of I/O channels, while I-87kn I/O expansion units are good for medium amount of channels. |
|
| |
|
|
|
|
