| I-7188/£gPAC-7186 £gPAC (Programmable Automation controller) Introduction |
With the high price-performance, the I-7188 series controllers £g PAC (Programmable Automation controller) is designed for palm-size embedded systems that require high reliability, PC-compatibility, and compactness. With different functional I/O boards, I-7188 series controllers will show totally different but ideal performance. Integrating I-7188 series controller to your system can shorten process from design to release, cut development costs, and minimize technical risks. Then, your system will upgrade to next level. I-7188 is our first generation product and the I-7188XA, I-7188XB and I-7188XC are all second generation products. The major differences between two generations include communication ports, digital I/O port, and user defined I/O pins. Except I-7188, all I-7188XA/XB/XC support the I/O expansion bus. |
| |
|
|
| |

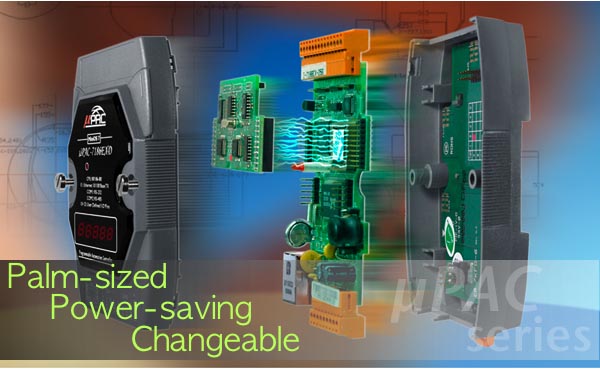

I/O Expansion Bus and Expansion Board |
|
| |
The I-7188XA, I-7188XB and I-7188XC support one I/O expansion bus which is used to implement various I/O functions ,such as D/I, D/O, A/D, D/A, Timer/Counter, UART, flash memory, battery backup SRAM, AsicKey & other I/O functions. Nearly all functions of the I/O expansion boards can be implemented by this bus but only support one daughter board.
ICPDAS supports more than 30 boards for I-7188XA/XB/XC. Then, you can select one of them to expand your controller. |
|
| |
|
|
|
|
