TPD-280-W/TPD-280U-W
TPD-283-W/TPD-283U-W |
|
|
|
|
|
|

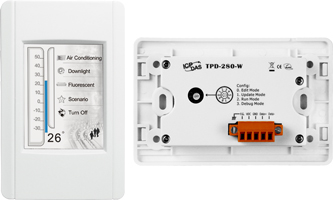

| Model: TPD-280-W/TPD-280U-W |

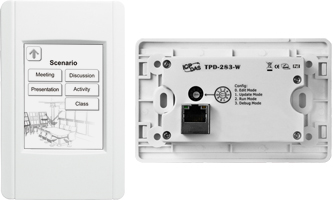

Model: TPD-283-W/TPD-283U-W |
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
|

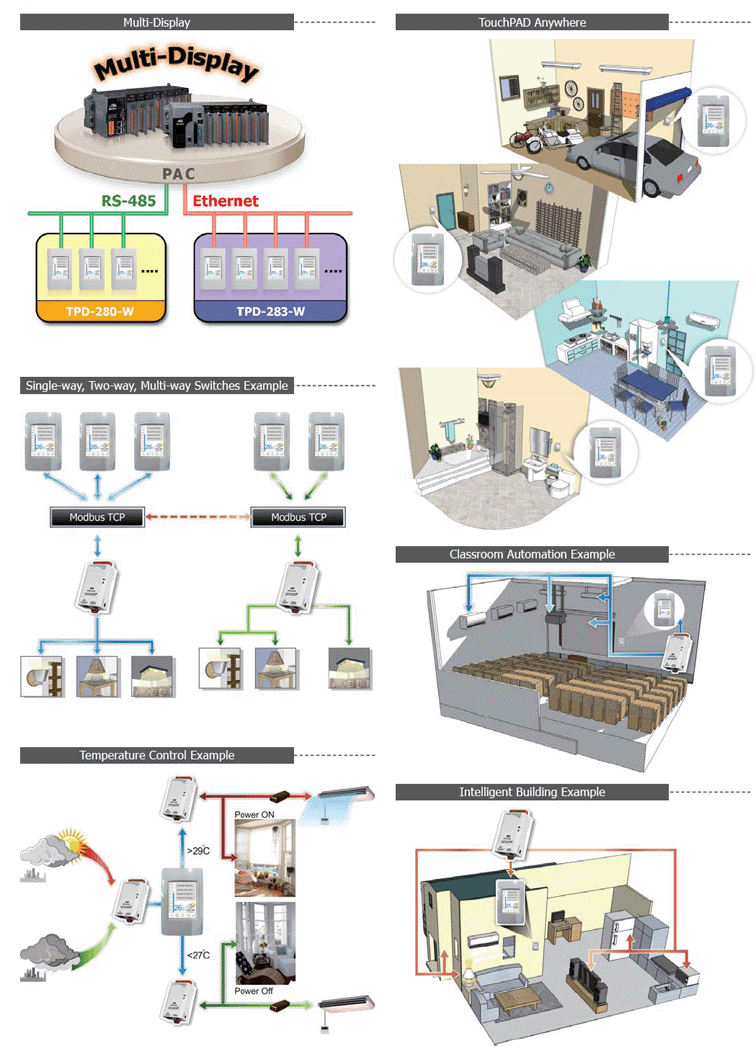

TPD-28X-W, TouchPAD, is a series of tiny touch HMI and designed for building and home automation. TPD-28X-W is equipped with high resolution TFT color touch screen and fits in with regular electrical
wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful,
fl exible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.
For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. Moreover, we provide redundant solutions in our PoE version, TPD-283, of TPD-series HMI devices. With all the features provided, TPD-series touch HMI Devices might be the most cost effective HMI Device that has been found. |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
- Excellent C/P ratio (cost/performance)
- High resolution color touch screen
- PoE, Power over Ethernet
- RS-485 (including Self-Tuner)
- RTC, Real Time Clock (RTC)
- WYSIWYG (What You See Is What You Get) GUI design
- Free development tool, HMIWorks
- Support the popular C programming language
- Support Ladder Designer

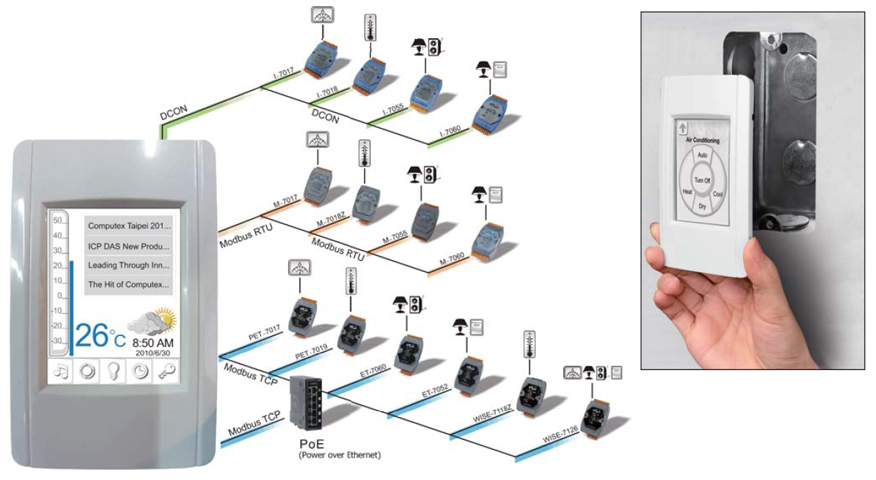

- Modbus TCP protocol to remotely control I/O modules and integrate with SCADA software
- ESD Protection: 4 kV
- Operating temperature: -20 ~ 70¢XC
|
 |
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| Models |
TPD-280-W |
TPD-280U-W |
TPD-283-W |
TPD-283U-W |
| CPU Module |
| CPU |
Lower-Power 32-bit RISC CPU |
| Memory Expansion |
- |
SDRAM 16 MB/Flash 8 MB |
- |
SDRAM 16 MB/Flash 8 MB |
| Real Time Clock (RTC) |
- |
Yes |
- |
Yes |
| Buzzer |
Yes |
| Rotary Switch (0~9) |
Yes |
| Communication Interface |
| Ethernet |
- |
RJ-45 x 1, 10/100 Base-TX |
| Serial Port |
RS-485 (including Self-Tuner) |
- |
| USB Client 1.1 |
- |
Yes |
- |
Yes |
| MMI (Main Machine Interface) |
| LCD |
2.8¡¨ TFT (Resolution 240 x 320 x 16) |
| Touch Panel |
Yes |
| Reset Button |
Yes |
| Electrical |
| Power |
+10 ~ 30 VDC |
PoE (IEEE 802.3af, Class 1) |
| Touch Panel |
1.2 W (50 mA @ 24 VDC) |
N/A |
| Mechanical |
| Dimension (W x L x H) |
76mm (W) X 119mm (L) X 31mm (H) |
| Wall Mount |
Yes |
| Environmental |
| Operating Temperature |
-20 ~ +70 ¢XC |
| Storage Temperature |
-30 ~ +80 ¢XC |
| Ambient Relative Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| TPD-280-W CR(NEW) |
2.8¡¨ touch HMI device with RS-485 (RoHS) |
| TPD-280U-W CR (Available soon) |
2.8¡¨ touch HMI device with RS-485, USB client 1.1 (RoHS) |
| TPD-283-W CR(NEW) |
2.8¡¨ touch HMI device with Ethernet (10/100 Mbps) (RoHS) |
| TPD-283U-W CR (Available soon) |
2.8¡¨ touch HMI device with Ethernet (10/100 Mbps), USB client 1.1 (RoHS) |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| NS-205PSE CR |
Unmanaged Industrial PoE (Power over Ethernet) Ethernet Switch (RoHS) |
| NS-208PSE CR |
Unmanaged Industrial PoE (Power over Ethernet) Ethernet Switch (RoHS) |
| NSM-208PSE CR |
Unmanaged Industrial PoE (Power over Ethernet) Ethernet Switch (RoHS) |
| MDR-20-24 |
24 VDC/1.0 A, 24 W Power Supply with DIN-Rail Mounting (RoHS) |
| MDR-60-24 |
24 V/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS) |
| MDR-60-48 |
48 VDC/1.25 A, 60 W Power Supply with DIN-Rail Mounting (RoHS) |
| DIN-KA52F CR |
24 VDC/1.04 A, 25 W Power Supply with DIN-Rail Mounting (RoHS) |
| DIN-KA52F-48 CR |
48 VDC/0.52 A, 25 W Power Supply with DIN-Rail Mounting (RoHS) |
| KA52F-48 CR |
48 VDC/0.52 A, 25 W Power Supply (RoHS) |
|
|
| |
|
|
|
|
|
| |
