Model: ZB-2550

ZB-2550 RS-485 / RS-232 to ZigBee Converter (Host)

The ZB-2550/ZB-2551 is a RS-485/RS-232 to ZigBee Network converter. It enables RS-232/RS-485 devices to be wirelessly and easily connected to a new or existing system.

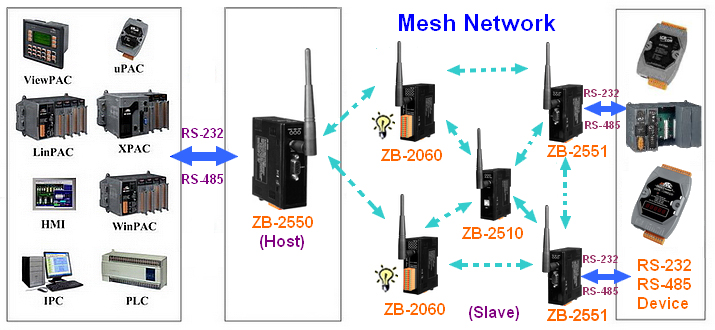

The ZB-2550 is net Host and the ZB-2551 is net Slave.It also supports various data formats and Baud Rates that can be configured via a Windows-based GUI utility. The ZB-2550 and the ZB-2551 can implement an ad-hoc, star or mesh network topology.

In some existing systems that use a RS-485/RS-232 network, it is sometimes difficult to extend the new devices due to building structure issues, wiring problems or other reasons. The ZB-2550 and the ZB-2551 can be easily added to an existing system in order to extend your network.

The typical transmission range of the ZB-2550/ZB-2551 converter is 100 m, and the ZB-2550P/ZB-2551P is 700 m. more...

back

ISM 2.4 GHz operating frequency
Fully compliant 2.4G IEEE802.15.4 / ZigBee specifications.
Wireless transmission range up to 100 m(Line of sight).
GUI configuration software (Windows version). Software Download
DIN-Rail mount.

back

Transparent: (Original data will be broken down into many small data, each small data is 50 Byte)

Modbus: (Original data won't be broken down into small data)

Addressable: (Original data won't be broken down into small data)

back

back

Core
CPU	8-bit microcontroller
Communication Interface
COM0	RS-232 (TXD, RXD and GND);D-SUB9 Female, Non-isolation
COM0	RS-485 (D+, D-; self-tuner ASIC inside); Non-isolation
LED Indicators	Power (Red), Zigbee Rx (Yellow), Zigbee Net State (Green)
COM 0 Settings
Baud Rate	1200~115200 bps
Data Bit	8
Parity Check	Even, Odd, None
Stop Bit	1
Power
Protection	Power reverse polarity protection
EMS Protection	ESD,Surge, EFT
Required Supply Voltage	+10 to +30VDC
Power consumption	0.5W
Connection	5-Pin 5.08mm Removable Terminal Block
Dimensions
Case	Plastic
Flammability	UL 94V-0 materials
Dimensions	33mm x 107mm x 78mm (W x H x D)
Installation	DIN-Rail
Operating Environment
Operating Temperature	-25°C to +75°C
Storage Temperature	-40°C to +80°C
Relative Humidity	5% to 95% Non-condensing

back

RF channels	16
Receive sensitivity	-102 dBm
Data encryption	AES-CRT/AES-128
Transmit power	9 dBm
Network Topology support	Star, Mesh and cluster tree
Antenna	2.4GHz - 3dBi Omni-Directional antenna

back

ZB-2550 CR	RS-485 / RS-232 to ZigBee Converter (Host) (RoHS)
ZB-2550/S CR	RS-485 / RS-232 to ZigBee Converter (Host) (RoHS) + GPSU06U-6 (Power Supply)
