For advanced wireless applications, repeaters and mesh are required in order to build a more flexible and reliable network. The ZB-2510P can be used to increase communication range or prevent data loss if the connection is interrupted or becomes unstable. more... |
|
|
| |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
- ISM 2.4 GHz operating frequency
- Fully compliant 2.4 G IEEE802.15.4/ZigBee specifications.
- Wireless transmission range up to 700 m (Line of sight, typical)
1 km (Line of sight, max.)
- GUI configuration software (Windows version)
- DIN-Rail mount.
|
|
|
| |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |

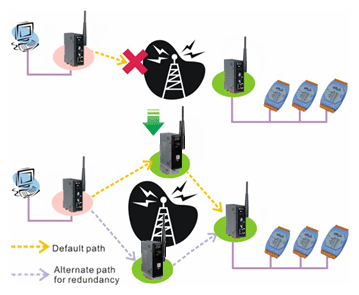

| 1.To avoid an obstacle that may be located between two wireless devices: |
 |

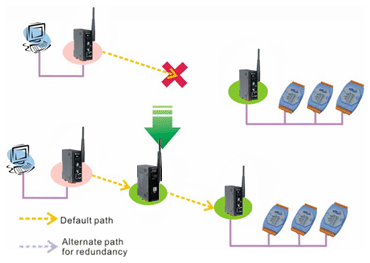

| 2. To extend the wireless transmission range: |
 |
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| Setting Interface |
| Setting Port |
B-TYPE USB Port |
Include Cable
(CA-USB18) x 1 |
USB type A connector (Type A to Type B cable provided) |
| Compatibility |
USB 1.1 and 2.0 standard |
| Driver Supported |
Windows 98/ME/2000/XP/Linux/Vista |
| Power |
| Protection |
Power reverse polarity protection |
| Frame Ground Protection |
ESD, Surge, EFT |
| Required Supply Voltage |
+10 ~ +30 VDC |
| Power Consumption |
3 W (Max.) |
| Connection |
3-pin 5.08 mm Removable Terminal Block |
| Materials And Dimensions |
| Case |
Plastic |
| Flammability |
UL 94V-0 materials |
| Dimensions |
33 mm x 107 mm x 78 mm (W x H x D) |
| Installation |
DIN-Rail |
| Operating Environment |
| Operating Temperature |
-25 ¢XC ~ +75 ¢XC |
| Storage Temperature |
-40 ¢XC ~ +80 ¢XC |
| Relative Humidity |
5 ~ 95 % RH, non-condensing |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| RF Channels |
16 |
| Receive Sensitivity |
-102 dBm |
| Transmit Power |
18 dBm |
| Network Topology Support |
Star, Mesh and Cluster Tree |
| Antenna |
2.4 GHz ¡V 5 dBi Omni-Directional antenna |
| Distance (LOS) |
700 m (Typical)
1 km (Max.) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| ZB-2510P CR |
ZigBee Repeater (RoHS) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
