PIO-DA16U/DA8U/DA4U/ PISO-DA16U/DA8U/DA4U

PIO-DA series: Universal PCI, 14-bit 16/8/4-channel Analog Output Boards
PISO-DA series: Universal PCI , 14-bit 16/8/4-channel Isolated Analog Output Boards

~NEW~

~NEW~

Model: PIO-DA16U/DA8U/DA4U

Model: PISO-DA16U/DA8U/DA4U

PISO-DA4U/DA8U/DA16U analog output boards with both high-end protection and Universal PCI interface (3.3V/5V supported). PIO-DA4U/DA8U/DA16U analog output boards with Universal PCI interface (3.3V/5V supported).These respectively equips with 4/8/16 AO channels, and each of the channel features double buffers.

The PISO-DA series add the isolation design that offer a durable ability to keep users' computers safe from unexpected surge. It is the built-in high-quality isolation components that make PISO-DA series featuring 2500VDC bus-typed isolation! For the PIO-DA series and PISO-DA series, their voltage output range is from -10V to +10V, and their current output range is from 0~20mA. In addition, PISO-DA series and PIO-DA series also features the following advantages by ICP DAS's innovation: 1. Accurate and easy-to-use calibration. ICP DAS provides the software calibration instead of the manual calibration so that no jumpers and trim-pots are required anymore. The calibration information can be saved in the EEPROM for long-term use. 2. Channel to channel configuration. In other words, every channel can be individually configured as voltage output or current output! 3. Card ID. ICP DAS provides the card ID function for PISO-DA series and PIO-DA4U/DA8U/DA16U (version 1.1 or above). Users can set a card ID for each card so that when more than two boards are used in a computer at the same moment, users can still instantly recognize them one by one.

PISO-DA series and PIO-DA series support a wide range of operating systems like Linux, DOS, Windows 98, Windows 2000, Windows NT, Windows XP 32-Bit, and Vista 32-Bit. Moreover, ICP DAS provides all the DLL and Active X for users, and sample programs covering from Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabView are also provided for intuitive and fast learning!

Note: This card need +12V power supply. It can be found in regular PC or Industrial PC.

back

Supports both +5V PCI bus for PIO-DA4/DA8/DA16
16/8/4 channels, 14-bit analog output
Voltage output range ±10V
0 ~ 20 mA current sink to ground for each converter
Two pacer timer interrupt source
Double-buffered D/A latches
Software calibration
16-channel DI, 16-channel DO
One D-Sub connector, two 20-pin flat cable connectors
Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR

[PISO-DA16U/DA8U/DA4U only]
Supports both +5V and +3.3V PCI bus
2500 VDC isolation protection.
Digital input port can be set to pull-high or pull-low
Card ID function,

[PIO-DA16U/DA8U/DA4U only]
Supports both +5V and +3.3V PCI bus
Digital input port can be set to pull-high or pull-low
Card ID function (Version 1.1 or above)

back

High speed data acquisition system
Process monitor and control.
Vibration analysis.
Digital pattern generator from digital I/O port

back

Toolkit for DOS
Toolkit for Windows 95/98
Toolkit for Windows NT
Toolkit for Windows 2000
Toolkit for Windows XP/2003/Vista 32-bit
LabVIEW toolkit for Windows

Toolkit for OCX 95/98
Toolkit for OCX NT
Toolkit for OCX 2000
Toolkit for OCX XP/2003/Vista 32-bit
Driver for LINUX
Driver for DasyLab

back

Model Name	PISO-DA4U/DA8U/DA16U	PIO-DA4U/DA8U/DA16U
Analog Outputs
Isolation Voltage	2500 V (Bus Type)	N/A
Channels	4/8/16 independent	4/8/16 independent
Resolution	14-bit
Accuracy	0.01% of FSR ± 2 LSB @ 25 °C, ± 10 V
Output Range	Voltage: +/- 10 V Current: 0 ~ 20 mA
Output Driving	+/- 5 mA
Slew Rate	0.71 V/μs
Output Impedance	0.1 Ω max.
Operating Mode	Software
Digital Inputs
Channels	16
Compatibility	5 V/TTL
Input Voltage	Logic 0: 0.8 V max. Logic 1: 2.0 V min.
Response Speed	1.0 MHz (Typical)
Digital Outputs
Channels	16
Compatibility	5 V/TTL
Output Voltage	Logic 0: 0.4 V max. Logic 1: 2.4 V min.
Output Capability	Sink: 0.8 mA @ 0.8 V Source: -2.4 mA @ 2.0 V
Response Speed	1.0 MHz (Typical)
Timer/Counter
Channels	3
Resolution	16-bit
Compatibility	5 V/TTL
Reference Clock	Internal: 4 MHz
General
Bus Type	3.3 V / 5 V Universal PCI, 32-bit, 33 MHz
Data Bus	8-bit
Card ID	Yes(4-bit)	Yes(4-bit) for Version 1.1 or above

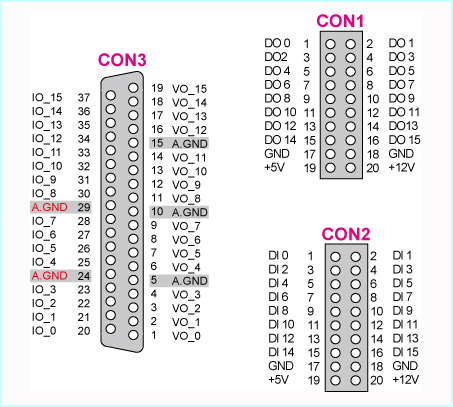

I/O Connector	Female DB37 x 1 20-pin Box header x 2
Dimensions (L x W)	180 mm x 97 mm	188 mm x 97 mm (Version 1.1 or above)
Power Consumption	2200 mA @ +5 V(PISO-DA16U) 2400 mA @ +5 V(PISO-DA16U) 3000 mA @ +5 V(PISO-DA16U)	600 mA@ +5 V(PIO-DA4U) 800 mA@ +5 V(PIO-DA8U) 1400 mA @ +5 V(PIO-DA16U)
Operating Temperature	0 ~ 60 °C
Storage temperature	-20 ~ 70 °C
Humidity	5 ~ 85% RH, non-condensing

back

Universal PCI Version
PISO-DA16U CR	Universal PCI 16-channel isolated D/A board (RoHS) Includes one CA-4002 D-Sub connector.
PISO-DA8U CR	Universal PCI 8-channel isolated D/A board (RoHS) Includes one CA-4002 D-Sub connector.
PISO-DA4U CR	Universal PCI 4-channel isolated D/A board (RoHS) Includes one CA-4002 D-Sub connector.
PIO-DA16U CR	Universal PCI 16-channel D/A board (RoHS) Includes one CA-4002 D-Sub connector.
PIO-DA8U CR	Universal PCI 8-channel D/A board (RoHS) Includes one CA-4002 D-Sub connector.
PIO-DA4U CR	Universal PCI 4-channel D/A board (RoHS) Includes one CA-4002 D-Sub connector.
OEM Version
PISO-DA16U/S	PISO-DA16U with DN-37 (RoHS) Includes one CA-3710 D-Sub cable.
PISO-DA8U/S	PISO-DA8U with DN-37 (RoHS) Includes one CA-3710 D-Sub cable.
PISO-DA4U/S	PISO-DA4U with DN-37 (RoHS) Includes one CA-3710 D-Sub cable.
PIO-DA16U/S	PIO-DA16U with DN-37 (RoHS) Includes one CA-3710 D-Sub cable.
PIO-DA8U/S	PIO-DA8U with DN-37 (RoHS) Includes one CA-3710 D-Sub cable.
PIO-DA4U/S	PIO-DA4U with DN-37 (RoHS) Includes one CA-3710 D-Sub cable.
~~PIO-DA16/S CR~~	PIO-DA16 with DN-37 (RoHS) Includes one CA-3710 D-Sub cable.
PIO-DA8/S CR	PIO-DA8 with DN-37 (RoHS) Includes one CA-3710 D-Sub cable.
~~PIO-DA4/S CR~~	PIO-DA4 with DN-37 (RoHS) Includes one CA-3710 D-Sub cable.
PCI Version
~~PIO-DA16 CR~~	PCI bus 16-channel D/A board (RoHS) Includes one CA-4002 D-Sub connector.
PIO-DA8 CR	PCI bus 8-channel D/A board (RoHS) Includes one CA-4002 D-Sub connector.
~~PIO-DA4 CR~~	PCI bus 4-channel D/A board (RoHS) Includes one CA-4002 D-Sub connector.

back

ADP-20/PCI	Extender, Extended dual 20-pin flat-cable connector to PC slot window
CA-4002	37-pin Male D-sub connector with plastic cover.
CA-3710	DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))
DB-16P	16-channel isolated D/I board
DB-16R	16-channel relay board
DB-24PR	24-channel power relay board(Using 16-channel only)
DB-24POR	24-channel PhotoMos output board(Using 16-channel only)
DB-24C	24-channel (Using 16-channel only) open-collector output board
DN-37	Screw Terminal Board For Analog I/O
