ISO-P32S32W
32-CH Optical-Isolated DI and 32-CH Optical-Isolated Open Collector Output Board
(8-CH for 500 mA and 24-CH for 100 mA Current Sinking Output, NPN) |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
ISO-P32S32W has 32 channels of optical-isolated DI and 32 channels of optical-isolated open-collector output board (8-channel for 500 mA and 24-channel for 100 mA current sinking output, NPN), arranged into four isolated banks. Each input channel use a photo-coupler to isolate the card and computer from external signal. Each digital output offers a NPN transistor and integral suppression diode for inductive load. ISO-P32S32W requires external power to drive the D/I and D/O ports.

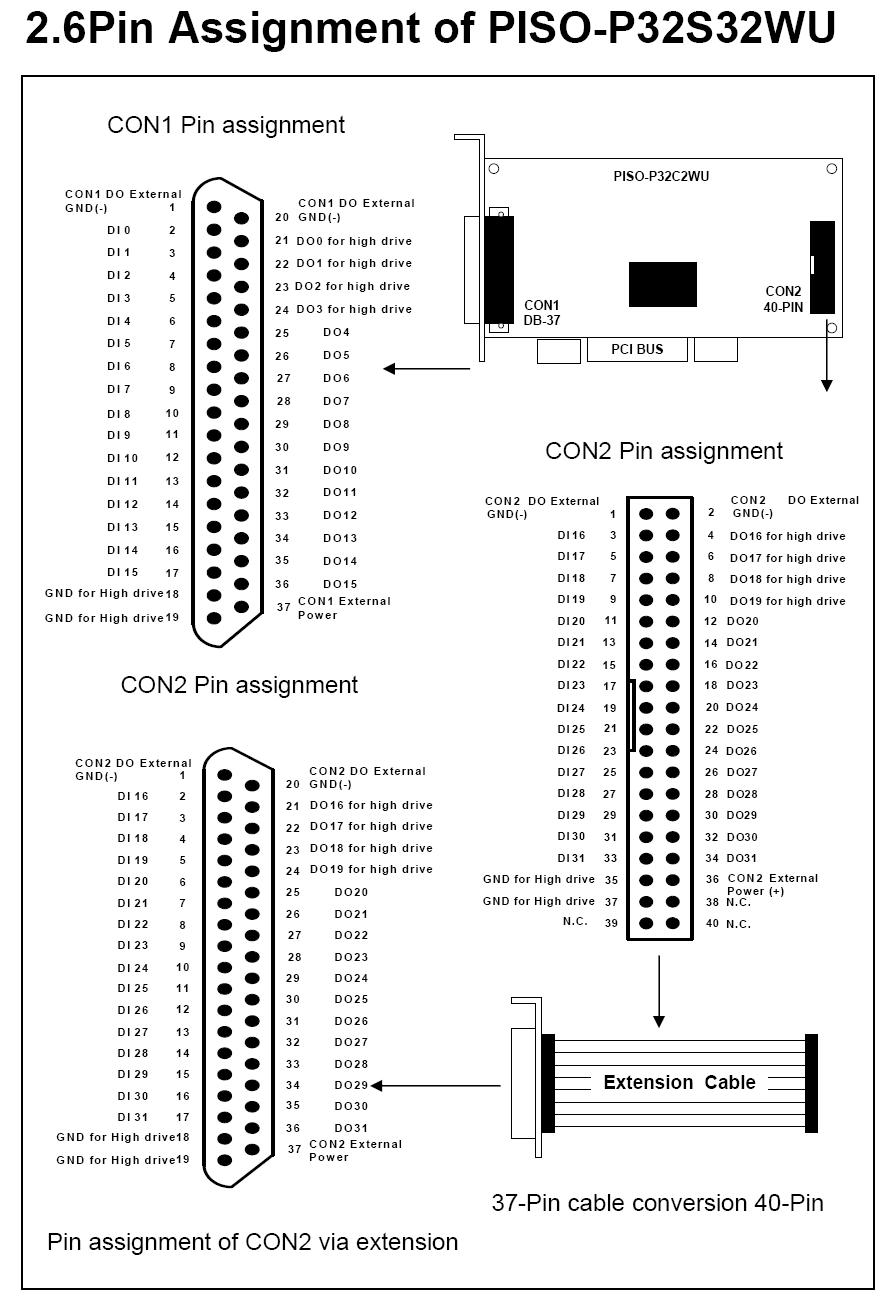

This interface board is easily installed in any PC. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. ISO-P32S32W has one 37-pin D-Sub connector and one 40-pin male header. The 40-pin to DB-37 flat cable is used to fix with the case. The user can connect the digital signal through the second D-Sub connector. Each D-Sub connector contains 16 input channels and 16 output channels. |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- 32-CH optical-isolated digital input
- 32-CH optical-isolated digital output
- Isolation Voltage: 3750 Vrms (Using external power)
- DC/DC converter build-in
- Interrupt handling
- Two Interrupt source, channel 0 and channel 16
- Open Collector: 500 mA (8-channel), 100 mA (24-channel), Current Sinking, NPN
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Factory automation
- Product test
- Laboratory automation
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- DOS sample program(with source codes)
- DLL and OCX SDK for Windows 98/NT/2000
- DLL and OCX SDK for 32-bit Windows XP/2003/Vista/7
- VB/VC/Delphi/BCB sample programs with source codes are included
- LabVIEW toolkit for Windows
- Driver for DasyLab
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Digital Input |
| Isolation Voltage |
3750 Vrms (Using external power) |
| Channels |
32 |
| Compatibility |
Photo coupler isolated |
| Input Voltage |
Logic 0: 0 ~ 1 V
Logic 1: 5 ~ 24 V |
| Input Impedance |
3 K£[, 0.5 W |
| Response Speed |
4 kHz (Typical) |
| Digital Output |
| Isolation Voltage |
3750 Vrms (Using external power) |
| Channels |
32 |
| Compatibility |
Sink, Open Collector |
| External Voltage |
5 ~ 30 VDC (max.) |
| Output Capability |
500 mA for one high driving channel @ 100% duty
500 mA for all high driving channels @ 100% duty
(The GND pins all must be connected with GND of External Power) |
100 mA for one low driving channel @ 100% duty
100 mA for all low driving channels @ 100% duty
(The GND pins all must be connected with GND of External Power) |
| Response Speed |
4 kHz (Typical) |
| General |
| Bus Type |
ISA |
| Data Bus |
8-bit |
| I/O Connector |
Female DB37 x 1
40-pin box header x 1 |
| Dimensions (L x W x D) |
163 mm x 115 mm x 22 mm |
| Power Consumption |
600 mA @ +5 V |
| Operating Temperature |
0 ~ 60 ¢XC |
| Storage Temperature |
-20 ~ 70 ¢XC |
| Humidity |
5 ~ 85% RH, non-condensing |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| ISO-P32S32W CR |
ISA Bus, 32-CH Optical-Isolated DI and 32-CH Optical-Isolated Open Collector Output Board
(8-Channel for 500 mA and 24-Channel for 100 mA Current Sinking Output, NPN, RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors. |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| ISO-P32C32 |
ISA Bus,32-CH Optical-Isolated DI and 32-CH Optical-Isolated Open Collector Output Board (Current Sinking, NPN) |
| ISO-P32C32 CR |
ISA Bus,32-CH Optical-Isolated DI and 32-CH Optical-Isolated Open Collector Output Board (Current Sinking, NPN, RoHS) |
| PISO-P32S32WU CR |
Universal PCI, 32-CH Optical-Isolated DI and 32-CH Optical-Isolated Open Collector Output Board (Current Sinking, NPN, RoHS) |
| PISO-P32C32 CR |
PCI Bus, 32-CH Optical-Isolated DI and 32-CH Optical-Isolated Open Collector Output Board (Current Sinking, NPN, RoHS) |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45¢X)) |
| CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180¢X)) |
| CA-3715DM-H |
DB-37 Male-Male Cable, 1.5 M, 180¢X. (RoHS) |
| CA-3730DM-H |
DB-37 Male-Male Cable, 3.0 M, 180¢X. (RoHS) |
| CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
| CA-3750DM-H |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
| CA-4002 |
37-pin Male D-sub connector with plastic cover |
| DB-37 |
Directly connect signal to D-sub 37-pin connector |
| DN-37 |
DIN Rail Mounting 37-pin Connector |
| DB-16P16R |
16-channel input terminal and 16-channel relay output board
Include : CA-3710D Male- Male D-sub Cable 1.0 M |
| CA-4037W |
40-pin flat & D-sub 37-pin Female cable 24 cm. |
|
|
|
|
| |
|
|
|
|
|
| |
