ISO-P32C32
32-channel Optically Isolated Digital Input and 32-channel Optically Isolated Open Collector Output |
|
|
|
|
|
|
|
|
|
|
|
|
|
|

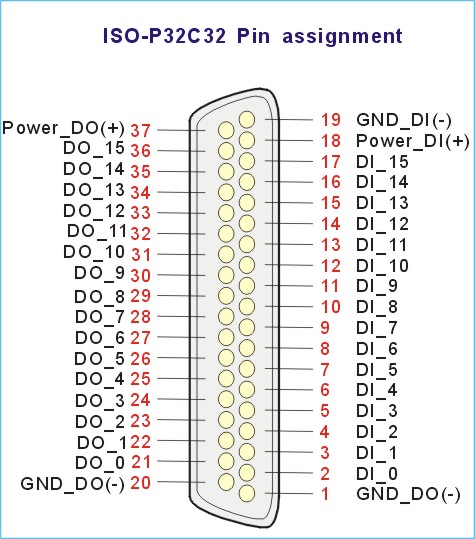

The ISO-P32C32 has 32 channels of optically isolated digital inputs and 32 channels of optically isolated digital outputs, arranged into four isolated banks. Each input channel use a photo-coupler input which allows either internal isolated power supply or external power selected by jumper. Each digital output offers a darlington transistor and integral suppression diode for inductive load. Isolated input channels 0 ~ 15 are designed into group A and channels 16 ~ 31 are designed into group B. Isolated output channels are designed into group C and group D. The power supply of the input port may use the external power or the power from the PC side using DC/DC converter. The power supply of the output port should use the external power. This interface board is easily installed in any PC. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. The ISO-P32C32 has one 37-pin D-Sub Connector and one 40-pin male header. The 40-pin to DB-37 flat cable is used to fix with the case. The user can connect the digital signal through the second D-Sub connector . Each D-Sub connector contains 16 input channels and 16 output channels.
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- 32-channel optically isolated digital input
- 32-channel optically isolated digital output/Open-collector
- DC/DC converter build-in
- 3000 Vrms isolation voltage
- Interrupt handling
- Interrupt source : channel 0 and channel 16
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- Factory Automation
- Product Test
- Laboratory Automation
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- DOS sample program(with source codes)
- DLL and OCX SDK for Windows 98/NT/2000
- DLL and OCX SDK for 32-bit Windows XP/2003/Vista/7
- VB/VC/Delphi/BCB sample programs with source codes are included
- LabVIEW toolkit for Windows
- Driver for Linux and DasyLab
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
Digital Input |
Isolation Voltage |
3750 Vrms (Using external power)
3000 Vrms (Using internal power) |
Channels |
32 |
Compatibility |
Photo coupler isolated |
Input Voltage |
Logic 0: 0 ~ 1 V
Logic 1: 9 ~ 24 V |
Input Impedance |
3 K£[, 0.5 W |
Response Speed |
4 kHz (Typical) |
Digital Output |
Isolation Voltage |
3750 Vrms (Using external power) |
Channels |
32 |
Compatibility |
Sink, Open Collector |
External Voltage |
5 ~ 30 VDC (max.) |
Output Capability |
100 mA for one channel @ 100% duty
100 mA for all channels @ 100% duty |
Response Speed |
4 kHz (Typical) |
General |
Bus Type |
ISA |
Data Bus |
8-bit |
I/O Connector |
Female DB37 x 1
40-pin Box header x 1 |
Dimensions (L x W x D) |
163 mm x 115 mm x 22 mm |
Power Consumption |
600 mA @ +5 V |
Operating Temperature |
0 ~ 60 ¢XC |
Storage Temperature |
-20 ~ 70 ¢XC |
Humidity |
5 ~ 85% RH, non-condensing |
|
|
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
ISO-P32C32 |
32-channel isolated digital I/O board
Includes one CA-4037W cable and two CA-4002 D-Sub connectors. |
ISO-P32C32 CR |
32-channel isolated digital I/O board (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors. |
|
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45¢X)) |
CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180¢X)) |
CA-3715DM-H |
DB-37 Male-Male Cable, 1.5 M, 180¢X. (RoHS) |
CA-3730DM-H |
DB-37 Male-Male Cable, 3.0 M, 180¢X. (RoHS) |
CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
CA-3750DM-H |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
CA-4002 |
37-pin Male D-sub connector with plastic cover |
CA-4037W |
40-pin flat & D-sub 37-pin Female cable 24 cm. |
DB-37 |
Directly connect signal to D-sub 37-pin connector |
DN-37 |
DIN Rail Mounting 37-pin Connector |
DB-16P16R |
16-channel input terminal and 16-channel relay output board
Include : CA-3710D Male- Male D-sub Cable 1.0 M |
|
|
|
|
|
|
|
|
|
|
|
