A-823PGH/A-823PGL
125KS/s 16-channel 12-bit Analog Input,2-channel 12-bit Analog Output with 16 Digital Input/16 Digital Output |
|
| Model: A-823PGH / A-823PGL |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The A-823PGH/L are 12-bit multifunction analog and digital I/O boards for the PC/AT compatible computer. The A-823PGH/L offer 16 single-ended or 8 differential analog inputs, plus two channels of analog output with 12-bits resolution. In addition, The A-823PGH/PGL has 16 digital input, 16 digital output , one timer/counter channel. The A-823PGH Provides gain of 0.5, 1, 5, 10, 50 ,100 , 500 , 1000 while the A-823PGL provides gains of 0.5 , 1 , 2 , 4, 8 . It has a maximum sampling rate of 125 K samples /s, DMA operation is jumper selectable for levels 1 or 3. Interrupts are jumper selectable between 3 and 15.
ICP DAS discontinue the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contacts us for OEM/ODM project if you are interested on customized version (or /NDA model).
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- 12-bit A/D converter
- 12-bit D/A converter
- 16 single-ended or 8 differential input channels
- 125 k/s sampling rate
- Two 12-bit analog output channel
- Analog Output Range : 0~5V , 0~10V
- Software programmable gain :
A-823PGL (Low Gain Version ) : 0.5 ,
1 , 2 , 4 , 8
A-823PGH(High Gain Version) : 0.5
, 1 , 5 , 10 , 50 , 100 , 500 , 1000
- Interrupt handling
- A/D Trigger modes : Software Trigger, Pacer Trigger, External Trigger , Event Trigger
- A/D data transfer modes : polling , interrupt , DMA
- 16 digital input & 16 digital output

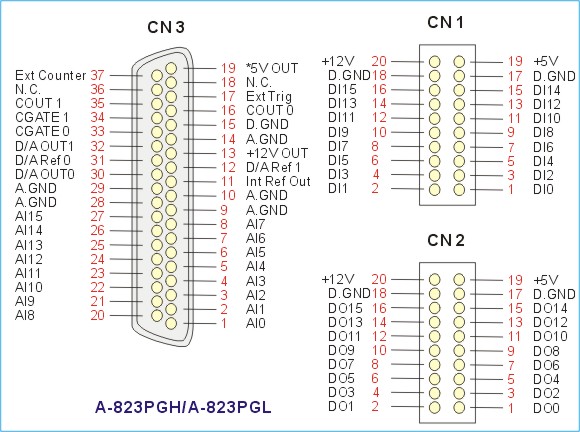

- 37 pin D-Sub connector
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Signal analysis
- Industrial automation
- Laboratory automation
- Sensor interface
|
- FFT & frequency analysis
- Transient analysis
- Production test
- Process control
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- Toolkit for Labview 95/98
- Toolkit for Labview NT
|
- Toolkit for Labview 2000/XP
- Toolkit for OCX 95/98
- Toolkit for OCX NT
- Toolkit for OCX 2000/XP
- Driver for LINUX
- Driver for DasyLab
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Analog Inputs |
Channels |
16-channel single-endded or 8-channel differential |
Resolution |
12-bit |
Conversion rate |
125K sample /sec |
Input impedance |
10,000M Ohm //6pf |
Over Voltage Protection |
+/- 35Vdc |
INL (Max) |
+/- 1-bit |
Sample & hold |
On chip |
Zero Drift |
15ppm / deg C of Full Scale |
|
| Analog Input Range |
| A-823PGH Input Range (High Gain Version) |
Gain |
0.5 |
1 |
5 |
10 |
50 |
100 |
500 |
1000 |
Bipolar(V) |
+/-10 |
+/-5 |
+/-1 |
+/-0.5 |
+/-0.1 |
+/-0.05 |
+/-0.01 |
+/-0.005 |
Unipolar(V)) |
|
0~10 |
|
0~1 |
|
0~0.1 |
|
0~0.01 |
Throughput |
125K/s |
125K/s |
80K/s |
80K/s |
10K/s |
10K/s |
1K/s |
1K/s |
|
| A-823PGL Input Range (Low Gain Version) |
Gain |
0.5 |
1 |
2 |
4 |
8 |
Bipolar(V) |
+/-10 |
+/-5 |
+/-2.5 |
+/-1.25 |
+/-0.625 |
Unipolar(V)) |
|
0~10 |
0~5 |
0~2.5 |
0~1.25 |
Throughput |
125K/s |
125K/s |
125K/s |
125K/s |
125K/s |
|
| D/A Output |
Channels |
2 independent |
Type |
12-bit double buffered |
Linearity |
0.006% FS |
Output range |
Internal reference 0~5V or 0~10V (A-822); 0~5V,0~10V,*5V,*10V (A-823) |
External reference |
max +10V or -10V |
Output Driving |
5mA |
| Digital I/O |
Inputs |
(LSTTL) : 16 |
Input low |
VIL = 0.8V max. ; IIL =-0.4mA max. |
Input high |
VIH = 2.0V min. ; IIH = 20*A max. |
Outputs |
(LSTTL) : 16 |
Output low |
VOL = 0.5V max. @IOL =8mA max. |
Output high |
VOH = 2.7V min; @IOH =-400*Amax. |
| Timer Counter |
Programmable Interval Timer |
(0.0045Hz~0.5MHz) |
Type |
82c54 |
A/D pacer |
16-bit counter (A-823PGH/L) |
Interrupt channel |
3-15 jumper selectable |
| Power |
|
|
| Environmental |
Operating temperature |
0~50¢XC |
Storage temperature |
-20~70¢XC |
Humidity |
0 to 90% non-condensing |
| Dimensions |
Dimensions |
163 mm x 124 mm |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| A-823PGL |
12-bit Low Gain Multi-function Board
Includes one CA-4002 D-Sub connector. |
| A-823PGL/S |
A-823PGL + Daughter Board DB-8225
Includes one CA-3710 D-Sub cable. |
| A-823PGH |
12-bit High Gain Multi-Function Board
Includes one CA-4002 D-Sub connector. |
| A-823PGH/S |
A-823PGH + Daughter Board DB-8225
Includes one CA-3710 D-Sub cable. |
| A-823PGL CR |
12-bit Low Gain Multi-function Board (RoHS)
Includes one CA-4002 D-Sub connector.
|
| A-823PGH CR |
12-bit High Gain Multi-Function Board (RoHS)
Includes one CA-4002 D-Sub connector. |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| CA-3710 |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(45¢X)) |
| DB-37 |
Directly connect signal to D-sub 37-pin connector |
| DN-37 |
DIN Rail Mounting 37-pin Connector |
| DB-8225 |
Screw Terminal Board For Analog I/O |
| DB-889D |
16-channel Analog Input Mux Board |
| DB-16P |
16-channel Isolated Digital Input Daughter Board |
| DB-16R |
16-channel Relay Output Daughter Board |
| DB-24C |
24-channel Open-Colllector Output Daughter Board |
| DB-24SSR |
24-channel SSR Output Daughter Board |
|
|
| |
| |
|
|
|
|
|
| |
