DB-16P

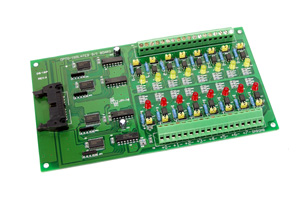

16-channel Bi-direction Isolated Input Board



Model: DB-16P

  • 16 optically isolated digital input channels Connects directly to A-82X board or any 812pg,711 series board or 720 ,726 series board and PCI Bus Multi-function Board
  • 1AC/DC signal Input
  • 1AC signal input with filter
  • 1Input buffer with voltage compactors

The DB-16P is a 16 channel isolated digital input daughter board forA-82X board or any 812pg,711 726 , 720 series board, and PCI-Bus Multi-function board.

The optically isolated inputs of the DB-16P consists of a bi-directional OPTO-coupler with a resistor for current sensing. You can use the DB-16P to sense DC signal from TTL levels up to 24V. You can also use DB-16P to sense a wide range of AC signals. You can use the board to isolated the computer from large common-mode voltages, ground loops and voltage spikes that often occur in industrial environments.

  • I/O connector Electrical Specifications:
  • Configuration : 6 optically isolated digital input channels
  • Compatibility : TTL compatible
  • Digital Input :
    Number of channels :16,each with it's own ground reference isolated from other channels
  • Maximum input voltage: 24 VDC or 24 VAC
  • Digital Logic level :
  • Input Low voltage : 0V(min) ~ +/-1V (Max)
  • Input High voltage : +-2.8V(Vrms) ~ +/- 24V(Max)
  • Input impedance : 1.2k
  • Source Current:
    5V inputs : 4 ma/channel minimum
    24V inputs : 20 ma/channel minimum
  • Response Time :20ms without filter / 2.2ms with filter
  • Power Supplies : +5V@224mA/ maximum
  • Dimension : 205mm x 114 mm
  • Operating Temperature : 0 -60°C
  • Storage Temperature :-20-70°C
  • Humidity : 5% to 90 % noncondensing
  • Power Consumption : 12V /0.53V ; 5V / 0.2A


  • Isolated digital input sensing
  • Energy management
  • Test Automation
  • Process Control

DB-16P 16-channel Bi-direction Isolated Input Board; Include : CA-2010 (20-pin Flat Cable 1m)
DB-16P CR 16-channel Bi-direction Isolated Input Board; Include : CA-2010 (20-pin Flat Cable 1m) (RoHS)

CA-2020 20-pin Flat Cable 2m
