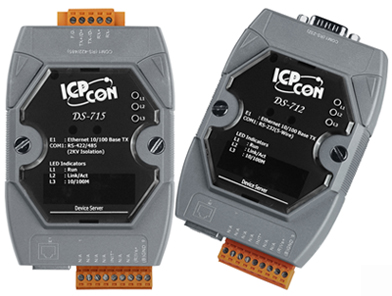

ICP DAS New Product: DS-712/DS-715
Device Server with 1-port RS-232 (RoHS) ¡V DS-712
Device Server with 1-port RS-422/RS-485 (RoHS) ¡V DS-715


DS-700, a ¡§Serial-to-Ethernet Device Server¡¨, is designed to meet most common requirements of Internet/Ethernet applications, and enables users to remotely control their serial devices through Ethernet network. Most devices are not equipped with network ports, and it is ¡§Device Server¡¨ that empowers those devices embracing the ability of Ethernet.

DS-700 works as a bridge connecting RS-232/485/422 devices and the Ethernet network. In addition, DS-700 goes with the VxComm utility, provided by ICP DAS for step-by-step configuration. The VxComm utility is able to virtually turn a DS-700¡¦s COM port into a standard PC¡¦s; in turn, you can keep your original application software unmodified, and run it directly! Since the high-efficiency OS, user-friendly setting, and portable size are in its blood, DS-700 can easily meet the demand of network-enabled applications.

¡§ESD Protection¡¨ & ¡§Frame Ground¡¨:
The DS series offer TVS diode ESD protection technology, protecting your system from being damaged by the high potential voltages.

How does TVS diode work?
Under normal operating conditions, the TVS diode presents high impedance (appears as an open circuit) to the protected component. When the voltage is beyond the limits, the TVS diode avalanches providing a low impedance path for the transient current. As a result, the transient current is diverted away from the protected components and shunted through the TVS diode. The device returns to a high impedance state after the transient threat passed..

DS-700 Features:
  • Networkable serial devices
  • ¡§Virtual COM¡¨ extend COM ports
  • Supports Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32
  • Watchdog timer suitable for use in harsh environments
  • 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator)
  • Power reverse polarity protection
  • Serial port +/-4 kV ESD protection circuit
  • Self-tuner ASIC controller on RS-485 port for DS-715
  • RoHS compliant with No Halogen
  • Built-in MiniOS7 of ICP DAS
  • DS-712: One RS-232 port(TxD, RxD, RTS, CTS, GND); Non-isolation
  • DS-715: One RS-422 port(TxD+, TxD-, RxD+, RxD-)/RS-485 port(D+, D-); Isolation
  • ODM Wanted

See videos that show what ¡§device servers¡¨ can do for you!
http://www.icpdas.com/tutorial/pds.htm

DS-700 Selection Guide
Model DI/DO COM1 COM2 COM3 COM4 COM5 COM6 COM7 COM8 Similar Product
- 5-wire RS-232 - - - - - - - I-7188E1(D)
- 2-wire RS-485
4-wire RS-422
- - - - - - -

For more information, please visit the following web site:

DS-712: http://www.icpdas.com/products/Industrial/pds/ds-712.htm
DS-715: http://www.icpdas.com/products/Industrial/pds/ds-715.htm
DS-700/PDS-700: http://www.icpdas.com/products/Industrial/pds/PDS_Series_Main_Page.htm
