DS-715/PPDS-715-MTCP  |
| Serial-to-Ethernet Device Servers |
 |
 |
 |
 |
| |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The DS-700 is a series of Serial-to-Ethernet Device Servers that are designed for linking RS-232/422/485 devices to an Ethernet network. By using the VxComm Driver/Utility, the built-in COM port of the DS-700 series can be virtualized to a standard PC COM port in Windows. By virtue of its protocol independence, a small size and flexibility, the DS-700 series meets the demands of virtually any network-enabled application.

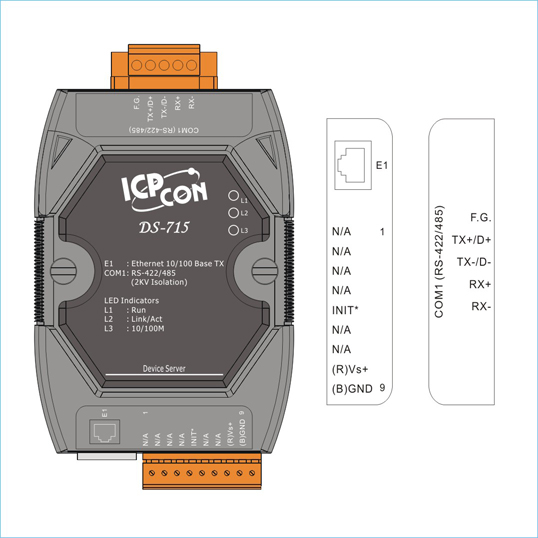

The DS-712 is equipped with a male DB-9 connector and supports a 5-wire RS-232 port, while the DS-715 is equipped with a removable terminal block connector and supports a 4-wire RS-422 port or a 2-wire RS-485 port with 2000 Vrms isolation.
The DS-700 is a non-programmable device server, while the PPDS-700-MTCP is a programmable product. The PPDS-700-MTCP series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PPDS-700-MTCP also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol. |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- Incorporate Serial Devices in an Ethernet network
- "Virtual COM" Extend COM Ports
- Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32
- High Performance Device Server
- Watchdog Timer suitable for use in harsh environments
- Power Reverse Polarity Protection
- Serial Port +/-4 kV ESD Protection Circuit
- RoHS Compliant with no Halogen
- Built-in High Performance MiniOS7 from ICP DAS
- 10/100 Base-TX Ethernet, RJ-45 Port
(Auto-negotiating, auto MDI/MDI-X, LED indicator)
- ODM Service Is Available
- Low power consumption
- Palm-Sized with multiple Serial Ports
- Made from fire retardant materials (UL94-V0 Level)
- Self-Tuner ASIC Controller on the RS-485 Port
[PPDS-715-MTCP only]
- Supports Modbus TCP to RTU/ASCII Gateway
- Supports PoE (IEEE 802.3af, Class 1)
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
- Factory Automation
- Building Automation
- Home Automation
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| Models |
DS-715 |
PPDS-715-MTCP |
| CPU |
| CPU |
80186-80 MHz or compatible |
| SRAM |
512 KB |
| Flash Memory |
Flash ROM: 512 KB |
| EEPROM |
16 KB; Data return: 40 years. |
| Built-in Watchdog Timer |
Yes |
| Communication Interface |
| Isolated(2000Vrms) |
COM1 |
RS-422 (TxD+, TxD-, RxD+,RxD-)
RS-485(D2+,D2-) |
| Ethernet |
10/100 Base-TX, RJ-45 port
(Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| PoE |
- |
IEEE 802.3af |
| COM Port Formats |
| Data Bit |
7, 8: for COM1 |
| Parity |
None, Even, Odd, Mark, Space |
| Stop Bit |
1, 2: for COM1 |
| Baud Rate |
115200 bps Max. |
| Power |
| Protection |
Power Reverse Polarity Protection |
| Required Supply Voltage |
+12 VDC ~ +48 VDC (non-regulated) |
PoE or +12 VDC ~ +48 VDC (non-regulated) |
| Power Consumption |
2.0 W |
2.2 W |
| LED Indicators |
| L1 |
Run (Red) |
| L2 |
Link/Act (Red) |
| L3 |
10/100M (Orange) |
| PoE |
- |
Green |
| Mechanical |
| Flammability |
Fire Retardant Materials (UL94-V0 Level) |
| Dimension (W x H x D) |
72 mm x 124 mm x 35 mm |
| Installation |
DIN-Rail or Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 ¢XC |
| Storage Temperature |
-40 ~ +80 ¢XC |
| Humidity |
5 ~ 90% RH, non-condensing |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| DS-715 CR |
Device Server with 1Isolated RS-422/RS-485 port (RoHS) |
| PPDS-715-MTCP CR |
Programmable Device Server with PoE, Modbus Gateway and 1 Isolated RS-422/485 port (RoHS) |
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| GPSU06U-6 |
24 VDC/0.25 A, 6 W Power Supply |
| MDR-20-24 CR |
24 VDC/1 A, 24 W Power Supply with DIN-Rail Mounting |
| NS-205 CR |
Unmanaged 5-Port Industrial Ethernet Switch (RoHS) |
| DIN-KA52F-48 |
48 VDC/0.52 A, 25 W Power Supply with Din-Rail Mounting |
| NS-205PSE CR |
Unmanaged Ethernet Switch with 4 PoE Ports and 1 RJ-45 Uplink (RoHS) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
