DS-712
Serial-to-Ethernet Device Servers

Model: DS-712


The DS-700 is a series of Serial-to-Ethernet Device Servers that are designed for linking RS-232/422/485 devices to an Ethernet network. By using the VxComm Driver/Utility, the built-in COM port of the DS-700 series can be virtualized to a standard PC COM port in Windows. By virtue of its protocol independence, a small size and flexibility, the DS-700 series meets the demands of virtually any network-enabled application.

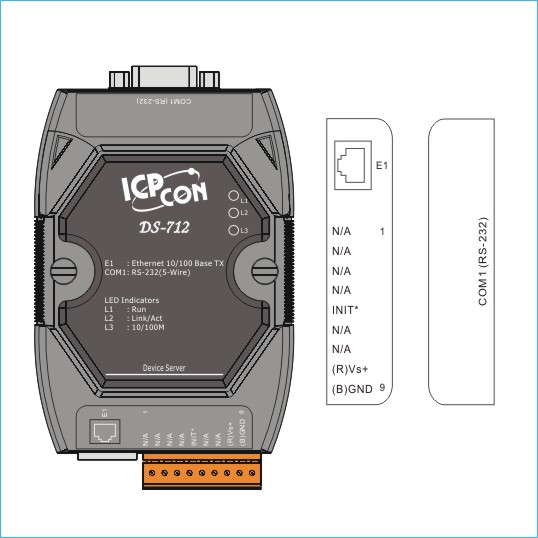

The DS-712 is equipped with a male DB-9 connector and supports a 5-wire RS-232 port, while the DS-715 is equipped with a removable terminal block connector and supports a 4-wire RS-422 port or a 2-wire RS-485 port with 2000 Vrms isolation.

  • Incorporate Serial Devices in an Ethernet network
  • "Virtual COM" Extend COM Ports
  • Virtual COM supports 32-bit and 64-bit Windows XP/2003/Vista/7/8
  • High Performance Device Server
  • Watchdog Timer suitable for use in harsh environments
  • Power Reverse Polarity Protection
  • Serial Port +/-4 kV ESD Protection Circuit
  • RoHS Compliant with no Halogen
  • Built-in High Performance MiniOS7 from ICP DAS
  • 10/100 Base-TX Ethernet, RJ-45 Port
    (Auto-negotiating, auto MDI/MDI-X, LED indicator)
  • ODM Service Is Available
  • Low power consumption
  • Palm-Sized with multiple Serial Ports
  • Male DB-9 Connector

  • Factory Automation
  • Building Automation
  • Home Automation

Model Name DS-712
CPU
CPU 80186-80 MHz or compatible
SRAM 512 KB
Flash Memory Flash ROM: 512 KB
EEPROM 16 KB; Data return: 40 years.
Built-in Watchdog Timer Yes
Communication Interface
Non-isolated COM1 RS-232 (TxD, RxD, RTS, CTS, GND)
Ethernet 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator)
PoE -
COM Port Formats
Data Bit 7, 8: for COM1
Parity None, Even, Odd, Mark, Space
None parity is required when using 8 data bits and 2 stop bits on COM1.
Stop Bit 1, 2: for COM1
Baud Rate 115200 bps Max.
Power
Protection Power Reverse Polarity Protection
Required Supply Voltage 12 VDC ~ +48 VDC (non-regulated)
Power Consumption 2.0 W
LED Indicators
L1 Run (Red)
L2 Link/Act (Red)
L3 10/100M (Orange)
PoE -
Mechanical
Flammability Fire Retardant Materials (UL94-V0 Level)
Dimension (W x H x D) 72 mm x 118 mm x 35 mm
Installation DIN-Rail or Wall mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 5 ~ 90% RH, non-condensing

DS-712 CR Device Server with 1 RS-232 port (RoHS)

GPSU06U-6 24 VDC/0.25 A, 6 W Power Supply
MDR-20-24 CR 24 VDC/1 A, 24 W Power Supply with DIN-Rail Mounting
CA-0915 9-pin Male-Female D-sub cable,1.5 M Cable
NS-205 CR Unmanaged 5-Port Industrial Ethernet Switch (RoHS)
DIN-KA52F-48 48 VDC/0.52 A, 25 W Power Supply with Din-Rail Mounting
NS-205PSE CR Unmanaged Ethernet Switch with 4 PoE Ports and 1 RJ-45 Uplink (RoHS)
DN-09-2 I/O Connector Block with DIN-Rail Mounting and Two 9-Pin Male Header.
Includes CA-0915 x 2 (9-pin Male-Female D-Sub Cable 1.5 m)
DN-09-2F I/O Connector Block with DIN-Rail Mounting and Two 9-Pin Male Header.
Includes CA-0910F x 2 (9-pin Female-Female D-Sub Cable 1.0 m)
