iSOS-309-IP65

iSOS waterproof light charging emergency call button module (Asia Only)
iSOS-309-IP65
iSOS-309-IP65
iSOS-309-IP65
iSOS-309-IP65
iSOS-309-IP65
iSOS-309-IP65
iSOS-309-IP65
iSOS-309-IP65

Features

  • Provide emergency message for help report function
  • Powered by built-in rechargeable Lithium Ion battery
  • Supports Dye-sensitized cell charging function
  • Support 433MHz Radio Frequency
  • Selectable 16 Radio Frequency Channels
  • Active online report
  • Provide wall-mounting Installation
  • IP65 rated waterproof
RoHS WEEE

Introduction

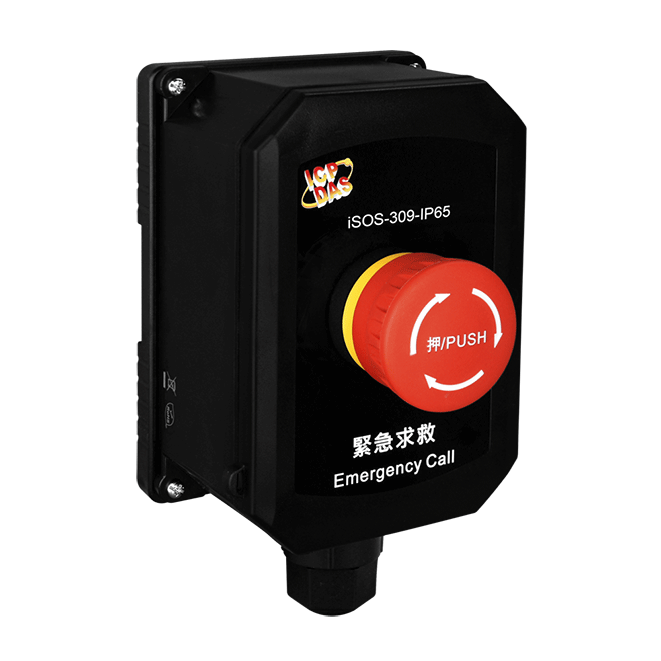

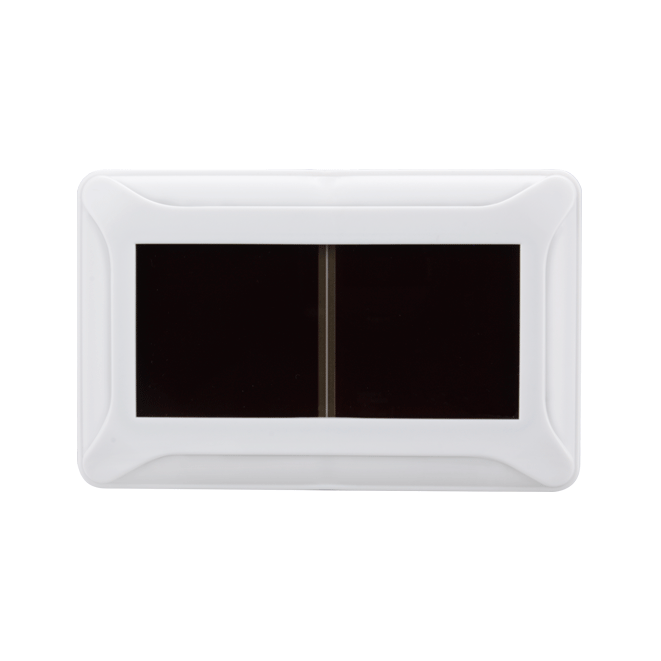

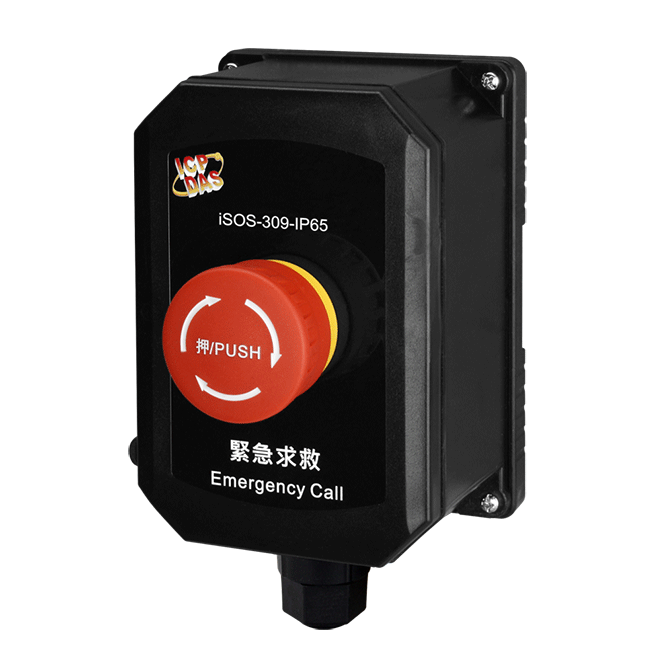

The iSOS-309-IP65 is a waterproof light charging wireless emergency call button product with a built-in rechargeable 16340 lithium-ion battery. With SP-S2-DS dye-sensitized charging module, it can be charged under indoor light conditions and can be used continuously without replacing the battery. Through the Sub-1G RF communication interface, it can approach real wireless deployment. It provides emergency help return function and improves personal safety protection. This system is very suitable for public area construction. For example, public toilets, hospitals, nursing homes, open campuses, large parking lots, etc. iSOS-309-IP65 delivers reliable electricity and reduces the cost of wiring. Realize emergency information transmission, meet low energy consumption, wireless communication, and emergency monitoring, etc., greatly reduce the time and human resources required for system construction and maintenance.

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES iSOS-309-IP65     CR DESCRIPTIONiSOS waterproof light charging emergency call button module (RoHS) (Asia Only)

*Without SP-S2-DS module
This combination include other products.

Similar Products

RF
Channels 0 ~ 15 (Selectable by DIP Switch)
Group ID 0 ~ 3 (Selectable by DIP Switch)
Radio Frequency 433.1000 ~ 434.6000 MHz
Transmission Power 9±1dBm (PA Off) / 18±1dBm (PA On)
Transmission Cycle 1 / 10 / 30 / 60 Secs. 3 / 5 / 10 / 30 Mins. (Selectable by DIP witch)
1 Sec.(Emergency Triggered Only)
Transmission Distance (LoS) 50 m
Node ID 1 ~ 31 configured by DIP switch
Antenna
Type Built-in Omni-directional antenna
Power
Consumption 0.577mAh@1 Day
Battery 16340 lithium-ion battery(3.2 VDC, 400mAh) charged by SP-S2-DS module
Mechanical
Dimensions (mm) 90 x 167 x103 (W x L x H)
Installation Wall-mount
Ingress Protection Rating IP65
Environment
Operating Temperature -25℃ ~ +60℃
Storage Temperature -30 ~ +80°C (No battery included) -20 ~ +45°C (Battery included)
Humidity 10 ~ 90% RH(Non-condensing)
