PET-AR400
PoE Ethernet High Speed Data Acquisition Module, 4-ch Accelerometer (IEPE) Inputs
Features
- 4 differential IEPE input，Excitation Current 4 mA
- 24-bit ADC
- Supports Real Sample and Hold
- Sample Rate up to 128 kS/s(One Channel)
- Continuous and N Data Sample Data Transmission Mode
- A/D Trigger Mode
- Software Trigger
- Analog Threshold Trigger
- Software Support
- Supported Operating Systems
Windows 7/8/10 and Linux - Software Compatibility
- Microsoft VC, C#, VB.NET SDK API and Demo
- NI LabVIEW Toolkit and Demo for Windows
- C/C++ library and Demo for Linux
- Supported Operating Systems
- Built-In 10/100BASE-T Auto-negotiating, Auto MDI/MDI-X Ethernet Port
- Option for External Power Supply or POE Supply
Introduction
PET-AR400 is a high speed data acquisition device with a built-in Ethernet communication port for data transfer over a network, and includes 4 high-speed 24-bit differential IEPE input channels (128 kHz sample-and-hold @ one channel).
PET-AR400 also provides 4 kV ESD protection as well as 2500 VDC intra-module isolation. In addition, the 24-bit ADC includes built-in filtering to adjust the appropriate sampling rate and filter out modulator and signal noise. The PET-AR400 is not only suitable for a wide range of mobile/portable measurement applications, but also for precision signal measurement.
The software trigger mode can command the trigger to perform continuous or N data A/D acquisition when needed, on the other hand, when the trigger mode is set to Analog Threshold Trigger mode, the A/D will start collecting N data when the analog input value is above or below a certain voltage.
Applications

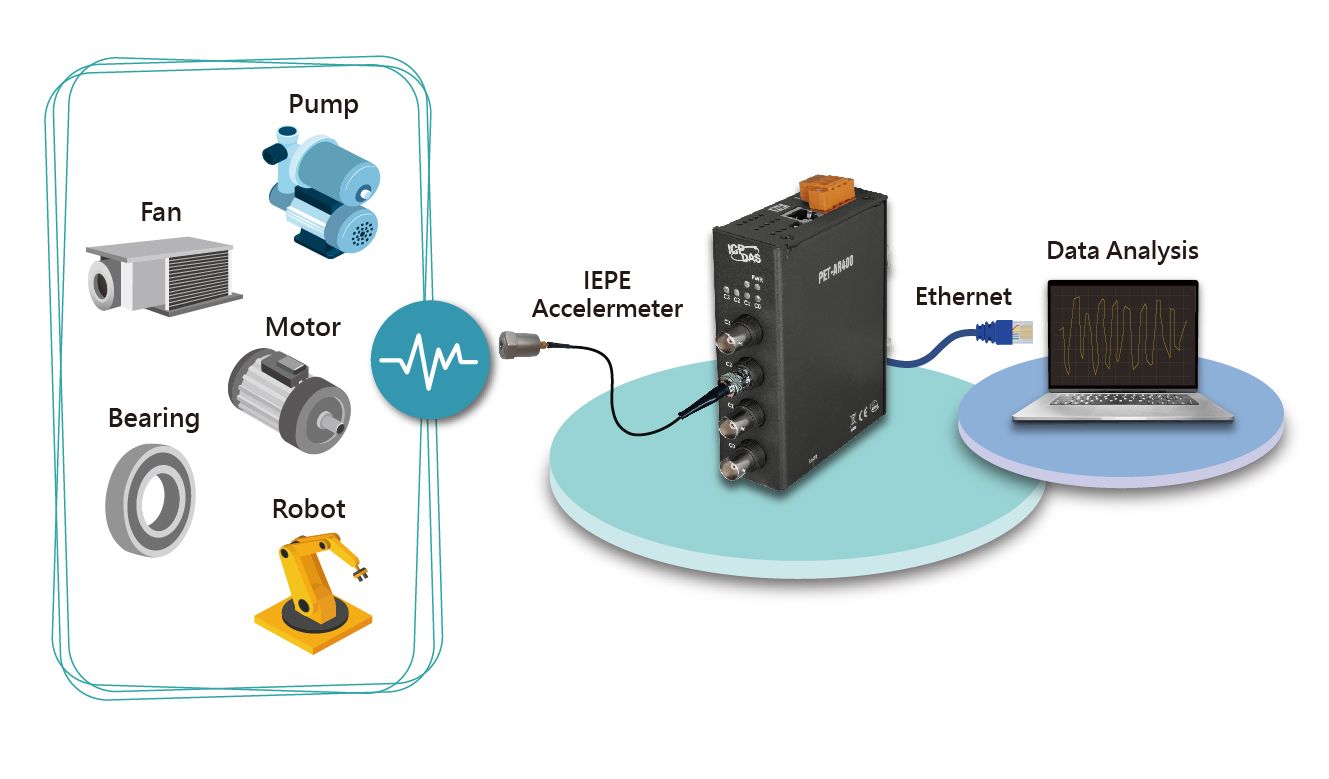

- Vibration measurement and analysis application
- Machine condition monitoring
- Predictive maintenance
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
Similar Products
| Software | |
|---|---|
| OS | Windows 7/8/10 and Linux |
| Protocol | TCP Streaming (Access data by SDK library) Modbus TCP |
| Utility | Configuration, graphically display and data logging |
| SDK | Windows 。Microsoft VC, C#, VB.NET SDK API and Demo 。Python Demo 。NI LabVIEW Toolkit and Demo Linux 。C/C++ library and Demo 。.NET library and Demo 。Python Demo |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | 1 kV for power |
| ESD (IEC 61000-4-2) | 4 kV contact for each terminal, 8 kV air for random point |
| LED Indicators | |
|---|---|
| Status | 1 x Power, 4 x Connection |
| Analog Input | |
|---|---|
| Channels | 4 Differential (Simultaneously) |
| Type | IEPE |
| Connector | BNC (Female) |
| Range | ±10 V |
| Input Common Mode Range | ±10 V |
| Input Coupling | AC Coupling/DC Coupling (Jumper Select) |
| Resolution | 24-bit |
| Accuracy | ±0.02 % FSR @ ±10 V |
| Sampling Rate | 32k Hz @ 3/4 channels 64k Hz @ 2 channels 128k Hz @ 1 channel |
| Bandwidth | 12.8k Hz (-0.1 db) @ 1/2 channel(s) 6.4k Hz (-0.1 db) @ 3/4 chhanels |
| Cut-off Frequency | 0.16 Hz |
| Input Impedance | Voltage: 2 MΩ |
| Excitation Current | 4 mA (Jumper Select) (IEPE compliance: 24 V) |
| FIFO Size | 1 k bytes, 256 Samples |
| Trigger Mode | Software, Analog Threshold Trigger |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-TX |
| PoE | IEEE 802.3af, Class 2 |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP Slave, Private TCP Raw Data |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 4.5 W |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 116 x 33 x 120 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
