Features

  • Wi‐Fi Uplink or Ethernet WAN Connection.
  • One RS-232/485 for Modbus RTU Connection.
  • IEEE 802.11a/b/g/n/ac Wi-Fi Compliance.
  • Support Wi-Fi dual bands 2.4/5 GHz
  • Two LAN Port for Linking Local Ethernet Devices.
  • One DI/One DO For Device Triggering or Event Reporting
  • Designed by solid and easy‐to‐mount metal body
RoHS WEEE

Introduction

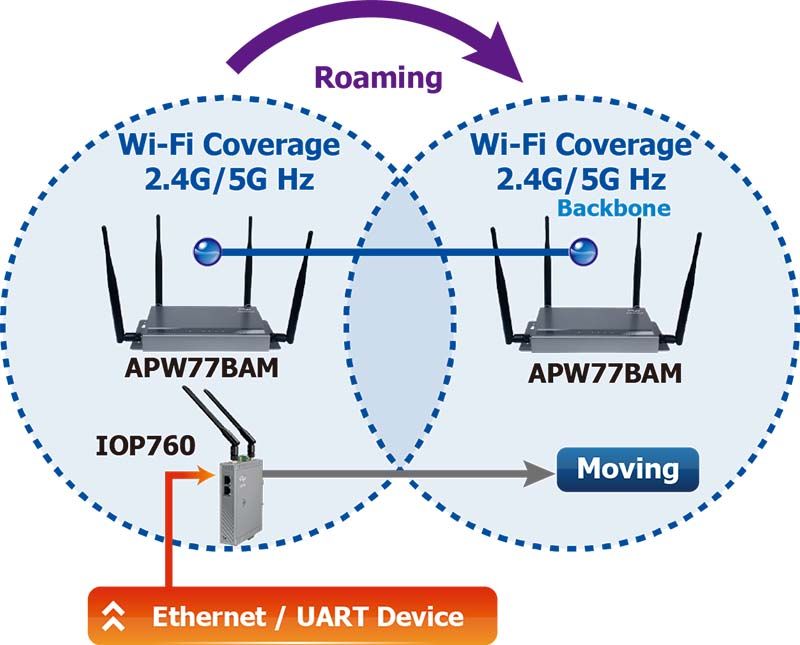

The IOP760 is absolutely the right choice for wireless M2M (Machine-to-Machine) applications. With built-in high performance IEEE802.11a/b/g/n/ac compliant Wi-Fi uplink or multi-mode access point function. IOP760 is a wireless converter. The data can be exchanged via the three different interfaces Wi-Fi, Ethernet and UART. The Wi-Fi interface supports IEEE 802.11 b/g/n/ac standard. Users can select IEEE 802.11 b/g/n for 2.4GHz connections or select IEEE 802.11 ac for 5GHz connections. When the Wi-Fi strength is lower than the threshold setting, IOP760 can connect to another stronger one via the roaming function. The IOP760 has two Ethernet interfaces that can connect to two Ethernet devices. All the Ethernet devices exchange data via the IOP760. In the UART communication, data can be sent directly or formed by Modbus protocol.

Applications








Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES IOP760     CR DESCRIPTIONEthernet/UART to Wi-Fi Converter (RoHS)(Asia Only)
This combination include other products.

Similar Products

Wi-Fi
Transmission Distance (LoS) 50 meters (LOS)
Standard IEEE 802.11a/b/g/n/ac
Encryption WEP / WPA / WPA2 / WPA-PSK / WPA2-PSK
Data Transmission Rate 2.4 GHz:300 Mbps(MIMO 2T2R)
5 GHz:866 Mbps(MIMO 2T2R)
Client Max. 10 Clients (AP mode)
Channels 2.4 GHz:1~11
5 GHz:36/40/44/48;149/153/157/161/165
Antenna 5 dBi 2.4/5 GHz
Digital Input
Channels 1
Type Wet Contact
ON Voltage Level 3.3 ~ 30 VDC
OFF Voltage Level 3 VDC Max.
Relay Output
Channels 1
Contact Rating 30V / 1A
Ethernet
Ports 2 x RJ45 FE
COM Ports
Ports 1 x RJ12( RS-232/RS-485)
Baud Rate RS-232: 9600 / 19200 / 38400 / 57600 / 115200
RS-485: 9600 / 19200 / 38400 / 57600 / 115200 / 230400 / 460800
Data Bit 8/7
Power
Input Range +9~ 48 VDC
Mechanical
Dimensions (mm) 31 x 99 x 131 (W x L x H)(without Mounting kit)
31 x 108 x 131 (W x L x H)(with DIN Rail kit)
167 x 99 x 39 (W x L x H)(with Bracket kit)
Installation DIN-Rail
Bracket
Environment
Operating Temperature -20 ℃ ~ 60 ℃
Storage Temperature -40 ℃ ~ 85 ℃
Humidity 10% ~ 95% (non-condensing)
