| WP-5231-CE7/WP-5231M-CE7 |
|
| |
| |
~ NEW ~ |
 |
 |
| Model: WP-5231-CE7 |
Model: WP-5231M-CE7 |
|
|
 |
- Cortex-A8, 1GHz CPU
- 512 MB SDRAM and 256 MB Flash
- Windows CE 7.0 Professional
- Hard Real-Time Capability
- 64-bit Hardware Serial Number for Software Protection
- I/O Expansion Bus
- 10/100/1000M Ethernet Port
- 4 Serial Ports (RS-232/485)
- Operating Temperature: -25 ~ +75°C
|
|
|
| |
 |
The WP-5231-CE7 and the WP-5231M-CE7 are equipped a Cortex-A8 CPU (1GHz) and running a windows CE 7.0 operating system. The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in Flash and microSD, The WP-5231-CE7 and the WP-5231M-CE7 can save application program, image file and data. The WP-5231-CE7 comes with a plastic casing, while the WP-5231M-CE7 comes with a metal one. |
| |
 |
 |
Windows CE 7.0 is a compact and real-time OS used to quickly create time critical and high performance applications. Using Windows CE 7.0 gives an ability to run PC-based control software such as Visual Basic .NET, Virtual C#. |
★ FTP Server
★ Web Server
★ SQL Compact Edition 3.5 |
★ .NET Compact Framework 3.5
★ Virtual CE Pro (VCEP) |
|
| |
 |
 |
| |
 |
| |
 |
| Model |
WP-5231-CE7 |
WP-5231M-CE7 |
| System Software |
| OS |
Windows CE 7.0 Professional |
| .Net Compact Framework |
3.5 |
| Embedded Service |
FTP server, Web server |
| SDK Provided |
Dll for Visual Studio.Net 2008 |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| CPU Module |
| CPU |
Cortex-A8, 1GHz |
| DDR3 SDRAM |
512 MB |
| Flash |
256 MB |
| FRAM |
64 KB |
| Expansion Flash Memory |
microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card) |
| RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| Dual Watchdog Timers |
Yes |

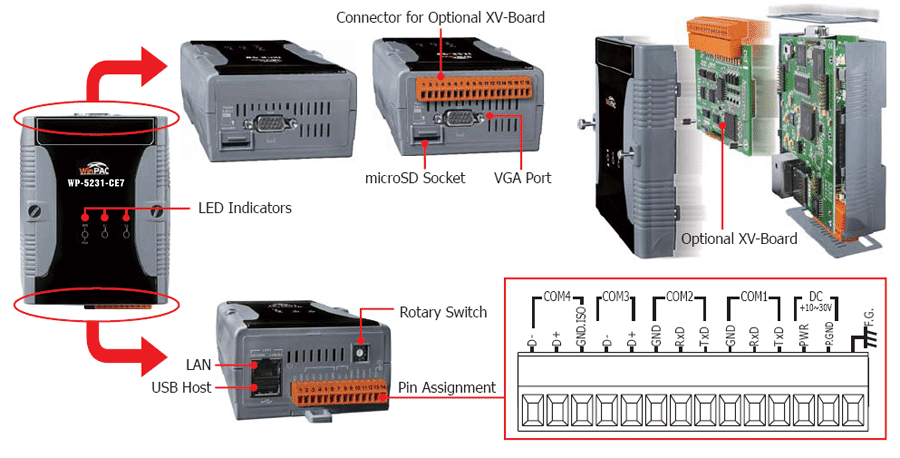

| LED Indicators |
1 LED for Power and Running; 2 LED for user defined |
| Rotary Switch |
Yes (0 ~ 9) |
| VGA & Communication Ports |
| VGA and Communication Ports |
Yes. Resolution: 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| Ethernet |
RJ-45 x 1, 10/100/1000 Based-TX ( Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 2.0 (host) |
1 |
| COM 1 |
RS-232 (RxD, TxD and GND); Non-isolated |
| COM 2 |
RS-232 (RxD, TxD and GND); Non-isolated |
| COM 3 |
RS-485 (Data+, Data-); Non-isolated |
| COM 4 |
RS-485 (Data+, Data-); 2500 VDC isolated |
| I/O Expansion Slots |
| I/O Expansion Bus |
Yes, one optional XV-board |
| Mechanical |
| Casing |
Plastic |
Metal |
| Dimensions (W x L x H) |
91 mm x 132 mm x 52 mm |
117 mm x 126 mm x 58 mm |
| Installation |
DIN-Rail Mounting |
DIN-Rail Mounting/Wall Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-40 ~ +80°C |
| Ambient Relative Humidity |
10 ~ 90% RH (non-condensing) |
| Power |
| Input Range |
+12 ~ +48 VDC |
| Consumption |
4.8 W |
|
| |
 |
| WP-5231-CE7 CR |
PAC with WinCE 7.0 and one LAN port (Plastic Case) (RoHS) |
| WP-5231M-CE7 CR |
PAC with WinCE 7.0 and one LAN port (Metal Case) (RoHS) |
|
| |
 |
|
| |
|
|
| |
|
|
