Universal IR Learning Module
Help you control all the IR devices !
Industrial Automation Technology Innovator and Enhancer.

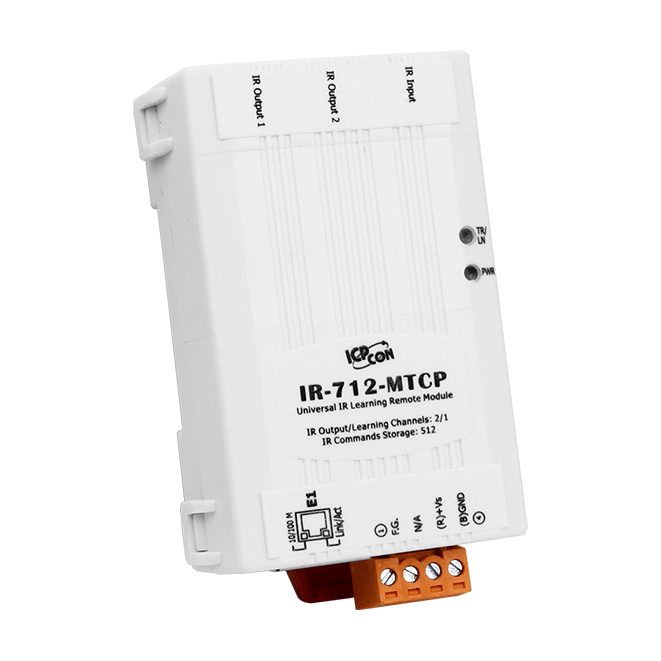

Introduction IR-712A/IR-712-MTCP
RS-485/Ethernet interface
2x IR outputs,224x IR commands
Modbus RTU/TCP protocol
Modbus RTU/TCP protocol to emit IR commands
6 learning IR carrier frequencies
33、36、37、38、40 and 56 kHz
IR-712A is a universal IR learning remote module
which can learn IR remote commands of various electronic devices.
The learning commands can be stored in the module or saved to a file. Besides, IR-712A software utility provides users with easy configuration, learning, test, and storage of IR commands.
IR-712A supplies 2 IR output channels for individual or simultaneous control on multiple devices.
As a replacement of IR remote controls, IR-712A can easily integrated with Modbus master devices (e.g. PAC, PLC, PC… etc.), IR-712A is well-suited for smart home and building automation.
Application
Home Entertainment Devices
Video Conferencing System
Surveillance System
e-Classroom service
Lighting Scenario Control
Home and Building Automation
Software
