PCIe-8620/PCIe-8622
PCI Express, 200 kS/s High-speed, 16-bit 8/16-channel Simultaneously Sampled Analog Input Board with 4/12-channel Isolated DIO |
|
| ~ NEW ~ |
|
 |
- Supports Card ID (SMD Switch)
- Digital Output Readback Function
- 16-bit AD Converter, 200kHz Sampling Rate for each channel
- Built-in 2048-sample AD FIFO
- Software Calibration
[PCIe-8620]
- Supports PCI Express x 1, Full-profile or Low-profile
- 4-channel Isolated DI and 4-channel Isolated DO
- 8-channel Synchronous Sample & Hold AD
- 8 Single-ended Analog Input Channels
[PCIe-8622]
- Supports PCI Express x 1, Full-profile
- 2-channel 16-bit Voltage Output
- 12-channel Isolated DI and 12-channel Isolated DO
- 16-channel Synchronous Sample & Hold AD
- 16 Single-ended Analog Input Channels
|
|
|
| Model: PCIe-8620 |
| |
| ~ NEW ~ |
 |
| Model: PCIe-8622 |
|
|
|
| |
 |

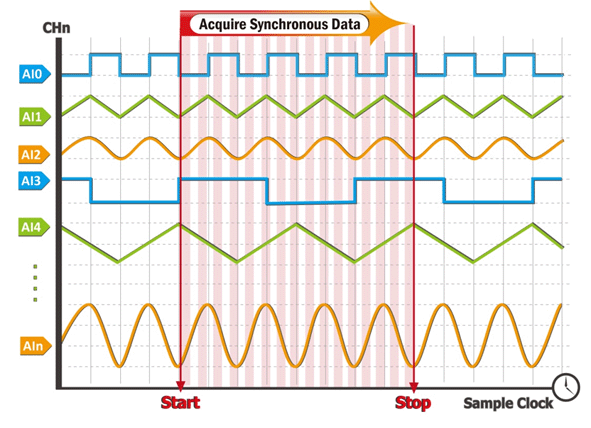

The PCIe-8620/8622 is a powerful multifunction board based on the PCI Express. With a FIFO of 2048 samples, the maximum sampling rate of PCIe-862x Series is up to 200 kS/s with 8/16 16-bit A/D converters simultaneously sampling on each channel. The PCIe-862x Series has two 16-bit voltage output (D/A) channels, 4/12 digital input channels, 4/12 digital output channels, and two PWM output channels. |
| |
 |
PCIe-8620/8622 supports more kinds of trigger modes for A/D conversion: software trigger, internal pacer trigger and external pacer trigger (for PCI-8622 only). The software trigger can acquire a sample whenever needed, while the internal pacer saves CPU loading by triggering the sampling at pre-programmed frequency. An external pacer (for PCI-8622 only) can be used for triggering by external frequency source.
The PCIe-8620/8622 also includes an onboard Card ID switch that can be used to set a unique ID for each board so that they can be instantly recognized if two or more boards are installed in the same computer.
These cards support a variety of operating systems, such as DOS, Windows 2000, 32-/64-bit Windows XP/2003/2008/Vista/7 and Windows 8. ICP DAS also provides a DLL and Active X control for the PCIe-8620/8622, together with sample programs in various languages, including Turbo C++, Borland C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW, enabling help users to quickly and easily develop their custom applications. |
| |
 |
- DLL and OCX SDK for Windows 2000.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
- VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
- LabVIEW toolkit for Windows.
|
| |
 |
| Model Name |
PCIe-8620 |
PCIe-8622 |
| Analog Input |
| Isolation Voltage |
2500 VDC (Bus-type) |
| Channels |
8 single-ended (Simultaneously) |
16 single-ended (Simultaneously) |
| A/D Converter |
16-bit, 5 µs conversion time |
| Sampling Rate |
200 kS/s |
| FIFO Size |
2048 samples |
| Over voltage Protection |
Continuous +/-35 Vp-p |
| Input Impedance |
10,000 MΩ/4pF |
| Trigger Modes |
Software, Pacer |
Software, Pacer, External |
| Data Transfer |
Polling, Interrupt, DMA |
| Accuracy |
0.05 % of FSR ±1 LSB @ 25 °C, ± 10 V |
| Input Range |
Gain: 1, 2 Bipolar Range: ±10 V, ±5 V |
| Analog Output |
| Channels |
- |
2 |
| Resolution |
- |
16-bit |
| Accuracy |
- |
± 6 LSB |
| Output Range |
- |
±5 V, ±10 V |
| Output Driving |
- |
+/- 5 mA |
| Slew Rate |
- |
2.8 V/µs |
| Output Impedance |
- |
0.1 Ω (Max.) |
| Operating Mode |
- |
Static update |
| Digital Input |
| Channels |
4 |
12 |
| Isolation Voltage |
2500 VDC |
| Compatibility |
5 V/TTL |
| Input Voltage |
Logic 0: 0.8 V (Max.)
Logic 1: 2.0 V (Min.) |
| Response Speed |
1.0 MHz (Typical) |
| Trigger Mode |
Software |
| Data Transfer |
Polling |
| Digital Output |
| Channels |
4 |
12 |
| Isolation Voltage |
2500 VDC |
| Compatibility |
5 V/CMOS |
| Output Voltage |
Logic 0: 0.4 V (max.)
Logic 1: 2.4 V (min.) |
| Output Capability |
Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V |
| DO Readback |
Yes |
| Operation Mode |
Static update |
| Response Speed |
1.0 MHz (Typical) |
| Timer/Counter |
| Channels |
- |
2 |
| General |
| Bus Type |
PCI Express x1 |
| Data Bus |
32-bit |
| Card ID |
Yes (4-bit) |
| I/O Connector |
Female DB25 x 1 |
SCSI II 68-pin x 1 |
| Dimensions (L x W x D) |
Full-profile: 107 mm x 120 mm x 22 mm
Low-profile: 107 mm x 80 mm x 22 mm |
125 mm x 120 mm x 22 mm |
| Power Consumption |
500 mA @ +3.3 V
200 mA @ +12 V |
600 mA @ +3.3 V
250 mA @ +12 V |
| Operating Temperature |
0 ~ 60 °C |
| Storage Temperature |
-20 ~ 70 °C |
| Humidity |
5 ~ 85% RH, non-condensing |
|
| |
 |
| PCIe-8620 CR |
PCI Express, 200 kS/s, 16-bit, 8-channel Simultaneously Sampled Analog Input board and 4-channel Isolated DIO. (RoHS)
Includes one CA-PC25M D-Sub Connector and One Low-profile bracket. |
| PCIe-8622 CR |
PCI Express, 200 kS/s, 16-bit, 16-channel Simultaneously Sampled Analog Input board with 2-channel 16-bit Analog Output and 12-channel Isolated DIO. (RoHS) |
|
| |
 |
| CA-2520 |
25-pin D-sub Cable, 2.0 m for PCIe-8620 |
| CA-SCSI15-H |
68-pin SCSI-II Connector Cable, 1.5m for PCIe-8622 |
| DN-25 CR |
DIN-Rail Mountable I/O Connector Block with 25/9-pin D-sub Connector for PCIe-8620 (RoHS)
Include: one CA-0920 Cable and one Ca-2520 Cable |
| DN-68A CR |
DIN-Rail Mountable I/O Connector Block with 68-pin Female SCSI II Connector for PCIe-8622 (RoHS) |
| 125Ω, 0.1% DIP Resistors |
125 Ω External Resistor for use with Current Input |
|
| |
 |
| |
 |
|
| |
|
|
| |
|
|
