XP-9000-CE6 Series
XP-9341-CE6, XP-9741-CE6 |
|
| |
| ~ Available soon ~ |
|
 |
 |
| Model: XP-9341-CE6 |

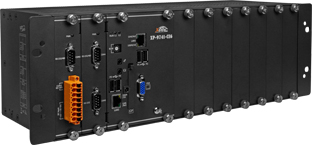

Model: XP-9741-CE6 |
|
|
| Highlight Information |
- Windows CE 6.0
- Hard Real-Time Capability
- Intel Atom Z510 CPU (1.1 GHz)
- Audio with Microphone-In and Earphone-Out
- VGA Port Output
- Support eLogger HMI
- High Performance PC Power, Open System
- Redundant Power Inputs
- Operatiog Temperature: -25 ~ +75 °C
|
|
|
| |
 |
XP-9000-CE6 Series is the new generation Windows CE 6.0 based PACs of ICP DAS. It is equipped with an Intel Atom Z500 Series CPU, various connectivity (VGA, USB, Ethernet, RS-232/485) and 3/7 I/O slots for high performance parallel I/O modules (high profle I-8K Series) and serial I/O modules (high profle I-87K series). The benefts of running Windows CE 6.0 on XPAC-Atom include hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level and achievable deterministic control. XPAC-Atom is also capable of running PC-based control software such as Visual Basic .NET, Visual C#,…. etc. It has all of the best features of both traditional PLCs and Windows capable PCs.
For software copy protection, programmers can design software based on the 64-bit hardware serial number for making software copy protected. |
| |
 |
| 1. |
Windows Compact Edition 6.0 |
| 2. |
System Rescue Mechanism |
| 3. |
ASP |
| 4. |
SQL Compact Edition 3.5 |
| 5. |
.NET CompactFrsmework 3.5 |
| 6. |
Remote Display |
| 7. |
Built-in OPC Server (Quicker) |
| 8. |
InduSoft |
| |
● HMI and SCADA development tool |
| 9. |
Rich Software Solutions |
| |
● SDK for Microsoft Visual Studio.NET 2005/2008 |
|
| |
 |
| 1. |
Powerful CPU Module |
| |
● Intel Atom Z510 CPU (1.1 GHz) |
| 2. |
Memory size: |
| |
● DDP2 SDRAM (512 MB), Built-in Flash Disk (8 GB) |
| |
● EEPROM (16 KB), CF Card (2 GB) |
| |
● MRAM (128 KB) |
| 3. |
VGA Port x 1, USB 2.0 Port x 4 |
| 4. |
Programmable LED indicator x 2 |
| 5. |
Audio with Microphone-In and Earphone-Out |
| 6. |
64-bit Hardware Serial Number |
| 7. |
Dual Watchdog Timers |
| 8. |
4/5 Serial Ports (RS-232/RS-485) |
| 9. |
Dual Giga bit Ethemet Ports (10/100/1000M) |
| 10. |
Redundant Power Input |
| 11. |
DIN-Rail or Wall Mounting |
| 12. |
Operating Temperature: -25 ~ +75 °C |
|
| |
 |
| Models |
XP-9341-CE6 |
XP-9741-CE6 |
| System Software |
| OS |
Windows CE 6.0 core version |
| .Net Compact Framework |
3.5 |
| Embedded Service |
FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5 |
| SDK Provided |
Dll for Visual Studio .NET 2005/2008 |
| Multilang uage Support |
English, German, French, Spanish, Russuan, Italian, Japanese, Simplified Chinese, Traditional Chinese |
| CPU Module |
| CPU |
Intel Atom Z510 CPU (1.1 GHz) |
| System Memory |
512 MB DDR2 SDRAM |
| MRAM |
128 KB |
| Flash |
8 GB as IDE Master |
| EEPROM |
16 KB |
| Data Retention: 40 years; 1,000,000 erase/write cycles |
| CF Card |
2 GB (support up to 32 GB) |
| RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
| Programmable LED Indicator |
2 |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| Dual Watchdog Timers |
Yes |
| Rotary Switch |
Yes (0 ~ 9) |
| DIP Switch |
Yes (8 bits) |
| Audio |
Microphone-In and Earphone-Out |
| VGA & Communication Ports |
| VGA |
Yes, (resolution: 1024 x 768, 800 x 600, 640 x 480) |
| Ethernet (Giga bit) |
RJ-45 x 2, 10/100/1000 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 2.0 |
4 |
| COM 1 |
Internal communication with the high profle I-87K series modules in slots |
| COM 2 |
RS-232/RS-485 (RxD, TxD, and GND for RS-232, Data+ and Data- for RS-485); 2500 VDC isolated |
| COM 3 |
RS-485 |
D2+, D2-; self-tuner ASIC inside; 2500 VDC isolated |
| COM 4 |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); 2500 VDC isolated |
| COM 5 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated |
| I/O Expansion Slots |
| Slot Number |
3 |
7 |
| Hot Swapv* Will be available |
For High Profle I-87K Modules Only |
| Mechanical |
| Dimensions (W x L x H) |
290 mm x 170 mm x 135 mm |
380 mm x 170 mm x 135 mm |
| Installation |
Wall Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Ambient Relative Humidity |
10 ~ 90% RH, non-condensing |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
3.8 A, 5 V supply to CPU and backplane,
3.2 A, 5 V supply to I/O expansion slots,
35 W in total |
4.0 A, 5 V supply to CPU and backplane,
3.0 A, 5 V supply to I/O expansion slots,
35 W in total |
| Consumption |
16.8 W (0.7 A @ 24 VDC) |
18 W (0.75 A @ 24 VDC) |
|
| |
 |
| XP-9341-CE6 CR |
3 I/O slot WinCE 6.0 Based Standard XPAC (OS: Multi-Language version) (RoHS) |
| XP-9741-CE6 CR |
7 I/O slot WinCE 6.0 Based Standard XPAC (OS: Multi-Language version) (RoHS) |
|
| |
 |
| DP-660 |
24 VDC/2.5 A, 60 W and 5 VDC /0.5 A, 2.5 W Power Supply with DIN-Rail Mounting |
| DP-1200 CR |
24 VDC/5.0 A, 120 W Power Supply with DIN-Rail Mounting (RoHS) |
| MDR-60-24 CR |
24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS) |
| |
| NS-205 CR |
Unmanaged 5-port Industrial 10/100 Ethemet Switch with Plastic Case (RoHS) |
| NS-208 CR |
Unmanaged 8-port Industrial 10/100 Ethemet Switch with Plastic Case (RoHS) |
|
| |
|
|
| |
|
|
