WP-5231PM-4GE-CE7/WP-5231PM-4GC-CE7

~ NEW ~


Model: WP-5231PM-4GE-CE7/WP-5231PM-4GC-CE7

Note: "WP-5231PM-4GC-CE7" only support China mobile network.

  • Cortex-A8, 1GHz CPU
  • Windows CE 7.0 Professional
  • 512 MB SDRAM and 256 MB Flash
  • 64-bit Hardware Serial Number
  • Hard Real-Time Capability
  • I/O Expansion Bus
  • 10/100/1000M Ethernet Ports
  • 3 Serial Ports (RS-232/485)
  • Operating Temperature: -25 ~ +75°C
  • Industrial Tri-band 4G module
  • 4G modem

The WP-5231PM-4GE-CE7/WP-5231PM-4GC-CE7 is equipped a Cortex-A8 CPU (1GHz) and running a windows CE 7.0 operating system. The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in Flash and microSD, the WP-5231PM-4GE-CE7/WP-5231PM-4GC-CE7 can save application program, image file and data.

The 4G module work on frequencies of WCDMA 2100/1900/900/850 MHz 、FDD LTE:B1/B3/B5/B7/B8/B20 and GSM 850/900/1800/1900 MHz. These modules utilize the 4G and 3G network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. These modules has the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of theirs, the systems can be SMS and GPRS and 4G or 3G connection applications with our PAC.

Windows CE 7.0 is a compact and real-time OS used to quickly create time critical and high performance applications. Using Windows CE 7.0 gives an ability to run PC-based control software such as Visual Basic .NET, Virtual C#.
★ FTP Server
★ Web Server
★ SQL Compact Edition 3.5		 ★ .NET Compact Framework 3.5
★ Virtual CE Pro (VCEP)
★ OPC Server (NAPOPC_CE5 DA Server))


Models WP-5231PM-4GE-CE7 WP-5231PM-4GC-CE7
System Software
OS Windows CE 7.0 Professional
.Net Compact Framework 3.5
Embedded Service FTP server, Web server
SDK Provided Dll for Visual Studio.Net 2008
Multilanguage Support English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
CPU Module
CPU Cortex-A8, 1GHz
DDR3 SDRAM 512 MB
Flash 256 MB
FRAM 64 KB
Expansion Flash Memory microSD socket with one microSD card (support up to 32 GB microSDHC card)
RTC (Real Time Clock) Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number Yes, for Software Copy Protection
Dual Watchdog Timers Yes
LED Indicators 1 LED for Power and Running; 2 LED for user defined
Rotary Switch Yes (0 ~ 9)

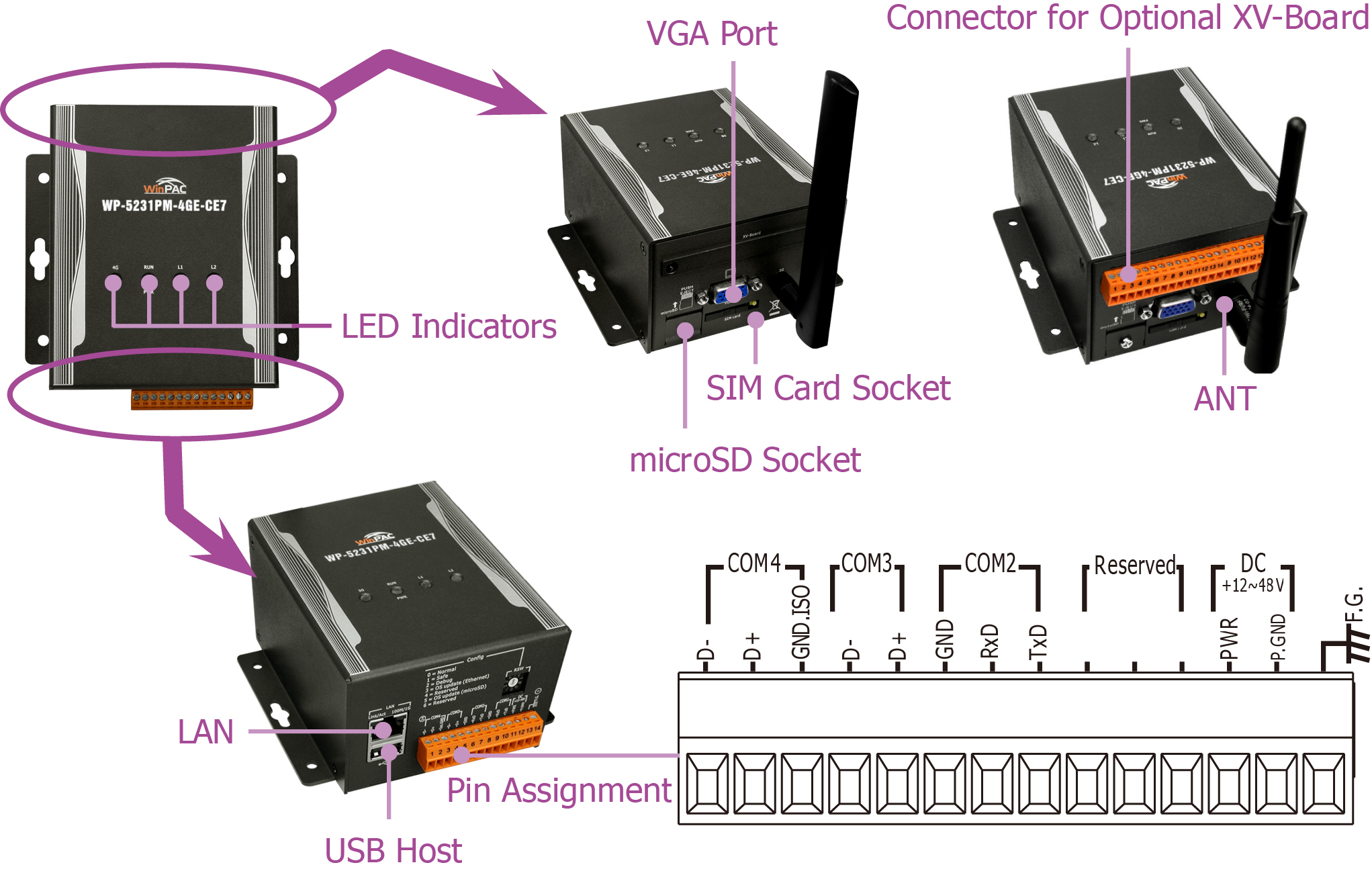

VGA & Communication Ports
VGA and Communication Ports 640 × 480, 800 × 480, 800 × 600, 1024 × 768
Ethernet RJ-45 x 1, 10/100/1000 Based-TX ( Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host) 1
COM 1 Console Reserved for OS
COM 2 RS-232 (RxD, TxD and GND); Non-isolated
COM 3 RS-485 (Data+, Data-); Non-isolated
COM 4 RS-485 (Data+, Data-); 2500 VDC isolated
I/O Expansion Slots
I/O Expansion Bus Yes, one optional XV-board
Mechanical
Casing Metal
Dimensions (W x L x H) 117 mm x 126 mm x 58 mm
Installation DIN-Rail Mounting/Wall Mounting
Environmental
Operating Temperature -25 to +75°C
Storage Temperature -40 to +80°C
Ambient Relative Humidity 10 to 90% RH (non-condensing)
Power
Input Range +12 to +48 VDC
Consumption 6.5 W
GSM System
Frequency Band GSM: 850/900/1800/1900 MHz
GPRS Connectivity GPRS class 12/10; GPRS station class B
Data GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max 42.8kbps
3G System
Frequency Band (MHz) WCDMA 850/900/2100 WCDMA 900/2100
TD-SCDMA 1900/2100
CDMA2000 (BC0) 800
Data Transmission DC-HSPA+ Download: Max. 42 Mbps; Upload: Max 5.76Mbps
TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps
CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps
4G System
Frequency Band (MHz) FDD LTE: B1/B3/B5/B7/B8/B20 FDD LTE: B1/B3/B8
TDD LTE: B38/B39/B40/B41
Data Transmission Download Max 100Mbps/Upload Max 50Mbps
GPS System (option)
Support Channels 32
Protocol Support NMEA 0183

WP-5231PM-4GE-CE7 CR PAC with WinCE 7.0、one LAN port、GPS and 4G module (Frequency Band for Europe) (Metal Case) (RoHS)
WP-5231PM-4GC-CE7 CR PAC with WinCE 7.0、one LAN port、GPS and 4G module (Frequency Band for China) (Metal Case) (RoHS)

XV-Board Add-on I/O Expansion Board
