LP-5231PM-4GE/LP-5231PM-4GC

~ NEW ~

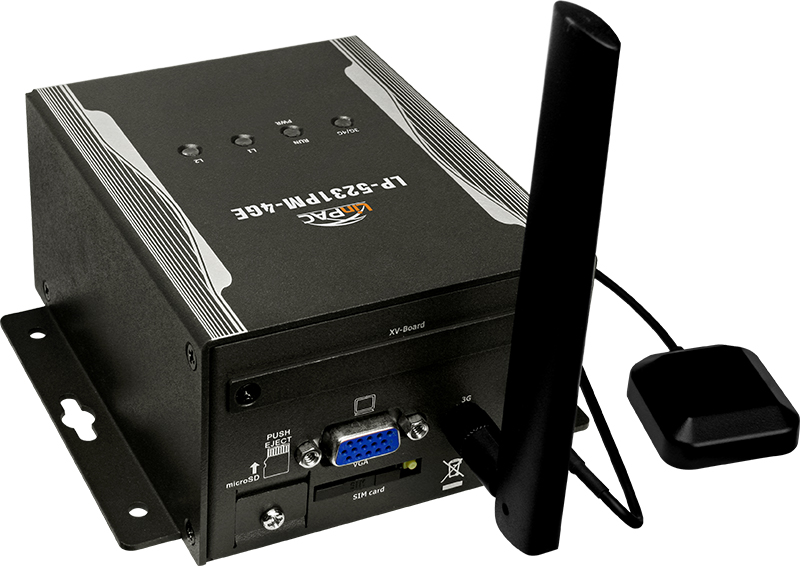

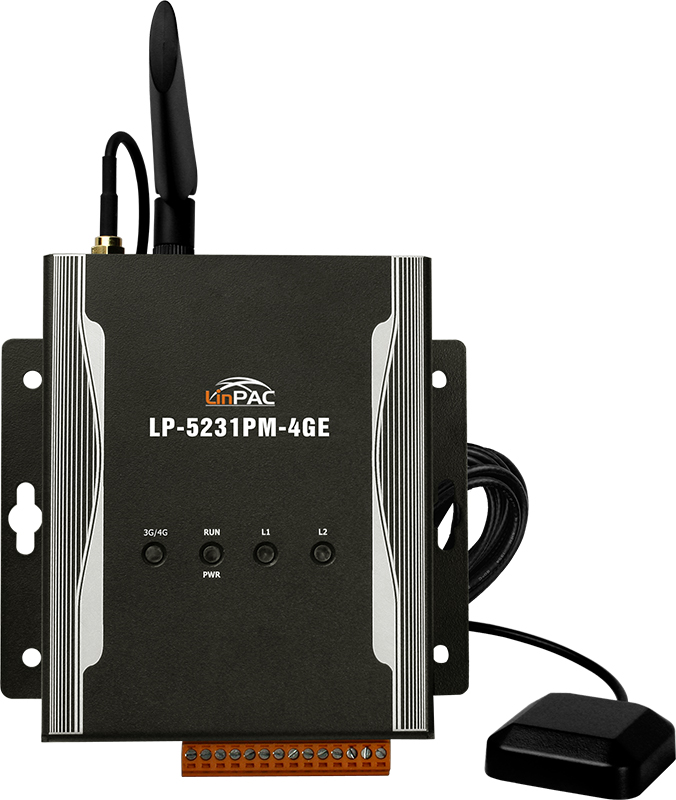

Model: LP-5231PM-4GE/LP-5231PM-4GC
Note: "LP-5231PM-4GC" only support China mobile network.


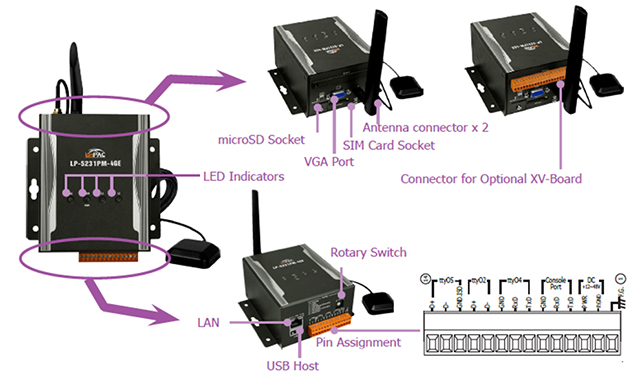

Linux kernel 3.2.14 Inside Cortex-A8 (1.0 GHz) Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server 64-bit Hardware Serial Number I/O Expansion Bus: XV-Board Redundant Power Inputs Operating Temperature: -25 ~ +75 °C Industrial Tri-band 4G module 4G Modem

The LP-5231PM-4GE/LP-5231PM-4GC is equipped a Cortex-A8 CPU (1 GHz) and using Linux OS with Linux Kernel 3.2.14 that is a compact and real-time OS used to quickly create time critical and high performance applications.

The 4G module of LP-5231PM-4GC work on frequencies of WCDMA 900/2100 MHz, TD-SCDMA 1900/2100 MHz, CDMA2000 (BC0) 800 MHz, FDD LTE:B1/B3/B8, TDD LTE: B38/B39/B40/B41 and GSM 850/900/1800/1900 MHz. The 4G module of LP-5231PM-4GE work on frequencies of WCDMA 2100/900/850 MHz, FDD LTE:B1/B3/B5/B7/B8/B20 and GSM 850/900/1800/1900 MHz. These modules utilize the 3G/4G network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. These modules has the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of theirs, the systems can be SMS and GPRS/3G/4G connection applications with our PAC.

Models	LP-5231PM-4GE	LP-5231PM-4GC
System Software
OS	Linux Kernel 3.2.14
Embedded Service	SFTP server, Web server, SSH
SDK Provided	LinPAC SDK (GCC based toolchain and LinPAC Libraries)
CPU Module
CPU	Cortex-A8, 1GHz
DDR3 SDRAM	512 MB
Flash	512 MB
FRAM	64 KB
Expansion Flash Memory	microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card)
RTC (Real Time Clock)	Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number	Yes, for Software Copy Protection
Dual Watchdog Timer	Yes
LED indicator	1 LED for Power and Running; 2 LED for user defined
Rotary Switch	Yes (0 ~ 9)
VGA & Communication Ports
VGA and Communication Ports	VGA x 1 (max. resolution up to 1280 x 1024)
Ethernet	RJ-45 x 1, 10/100/1000 Based-TX ( Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host)	1
Console Port	RS-232 (RxD, TxD and GND); Non-isolated
ttyO2	RS-485 (Data+, Data-); Non-isolated
ttyO4	RS-232 (RxD, TxD and GND); Non-isolated
ttyO5	RS-485 (Data+, Data-); 2500 VDC isolated
I/O Expansion Slots
I/O Expansion Bus	Yes, one optional XV-board
Mechanical
Casing	Metal
Dimensions (W x L x H)	117 mm x 126 mm x 58 mm
Installation	DIN-Rail Mounting/Wall Mounting
Environmental
Operating Temperature	-25 to +75°C
Storage Temperature	-30 to +80°C
Ambient Relative Humidity	10 to 90% RH (non-condensing)
Power
Input Range	+12 VDC to +48 VDC
Consumption	6.5 W
GSM System
Frequency Band	GSM: 850/900/1800/1900 MHz
GPRS Connectivity	GPRS class 12/10; GPRS station class B
Data GPRS	Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max 42.8k bps
3G System
Frequency Band (MHz)	WCDMA 850/900/2100	WCDMA 900/2100 TD-SCDMA 1900/2100 CDMA2000 (BC0) 800
Data Transmission	DC-HSPA+ Download: Max. 42 Mbps; Upload: Max 5.76Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps
4G System
Frequency Band (MHz)	FDD LTE: B1/B3/B5/B7/B8/B20	FDD LTE: B1/B3/B8 TDD LTE: B38/B39/B40/B41
Data Transmission	Download Max 100Mbps/Upload Max 50Mbps
GPS System (option)
Support Channels	32
Protocol Support	NMEA 0183

LP-5231PM-4GE CR	PAC with Linux OS, one LAN port, GPS and 4G module (Frequency Band for Europe) (Metal Case) (RoHS)
LP-5231PM-4GC CR	PAC with Linux OS, one LAN port, GPS and 4G module (Frequency Band for China) (Metal Case) (RoHS)

Add-on I/O Expansion Board

|
