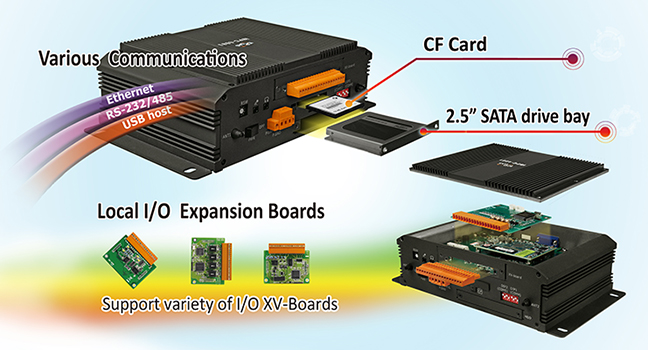

iBPC series is a fanless embedded box PC, wide operating temperature and wide range voltage capability, allow it run in the harsh environments.

iBPC series comes with the same interfaces: four RS-232/422/485 ports, VGA, HMDI, Audio, dual Gigabit Ethernet LAN ports and four high-speed USB 2.0. And there are various CPU options: iBPC-4081 is with one Intel® ATOM Quad Core 1.91Ghz Processor E3845 (with 4GB on-board memory), iBPC-4041 is with one Intel® i3-6100U processor (with one DDR4 SO-DIMM slot).

Two SMA type connector opening for antenna, optional I/O expansion board (XV-board), provides high protection I/O, +10 ~ 30 VDC power input connector, and one power switch. One 2.5" SATA HDD drive bay is also set up in the embedded computer to possess sufficient storage.

1. Powerful Hardware Design

• iBPC-4081: Intel® Atom E3845 CPU (with 4 GB on-board memory)
• iBPC-4041: Intel® i3-6100U CPU (with one DDR4 SO-DIMM slot)
• 2 × 10/100/1000M Ethernet and 4 × USB 2.0 port
• One 2.5” SATA drive bay and 1 CF socket
• Ultra-Rugged Construction and Reliable Design
• Supports VGA and HDMI dual display
• RS-232/422/485 port
• I/O Expansion Bus for XV-board
• One Mini PCI Express Card slot
• Operating Temperature: -25 ~ +70°C

2. Local I/O Expansion Board
The iBPC series can support one an I/O expansion card, which allow you implement various I/O functions.


3. Remote I/O Module and Expansion Unit
With the built-in RS-485 and Ethernet ports, the iBPC series can connect RS-485/Ethernet remote I/O units (RU-87Pn/ET-87Pn) or modules (I-7000/M-7000/ET-7000).

4. Multiple Communication Interfaces
iBPC series provides different communication interfaces, easy to expand various I/O modules or connect to external devices.

• Ethernet
• RS-232/485
• USB host
• CAN Bus

5. Various Memory Storage Options
iBPC series provides various memory storage options.

• CF card: Portable data logging applications.
• 2.5” SATA drive bay or Flash DOM (Mini-PCIe interface): Rugged storage and shock absorption.

6. Highly Reliable Under Harsh Environment
iBPC series operates in a wide range of temperature and humidity.

• Operating Temperature: -25 ~ +70°C
• Storage Temperature: -40 ~ +75°C
• Humidity 10 ~ 90% RH (non-condensing)
