IVS-255
Real-time MPEG4 Industrial Video Server



  • CPU : Intel xScale PXA-255 CPU @ 400 MHz
  • OS: Embedded Linux 2.4.19
  • Low power consumption, no fan inside
  • Hardware watch dog protection mechanism
  • Support 4-CH MPEG4 video and 4-CH audio real-time encoding
  • Support 1-CH real-time audio out
  • ActiveX Control SDK for AP developing
  • Ready for integration with InduSoft Web Studio
Model: IVS-255

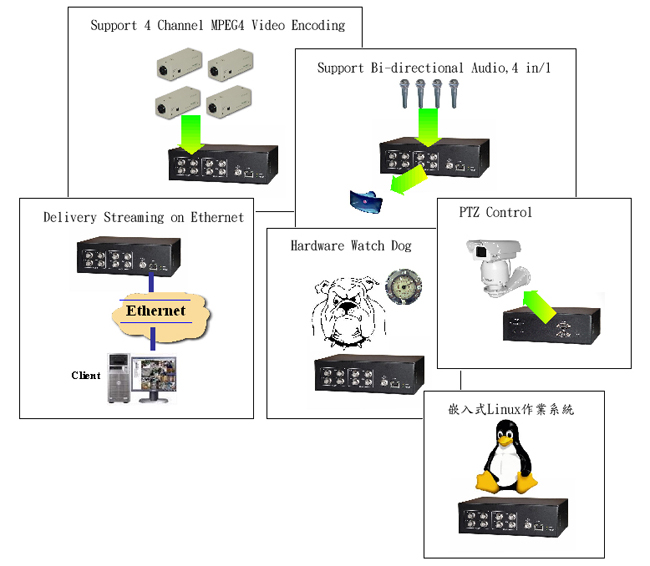

Being the first multimedia-networking product of ICPDAS, IVS-255 is a high performance standalone video server, based on Intel xScale pxa-255 CPU, 400Mhz, and embedded Linux OS. It could simultaneously perform 4Ch real-time MPEG4 video encoding, 4 CH ADPCM Audio encoding, and, 1 CH Audio play-out. All these streaming data go through Ethernet. The rugged hardware design, low power consumption, and fan-less features make this product especially suitable for industrial field application.


CPU IntelR xScaleR PXA-255 @ 400 MHz400 MHz
Memory SDRAM: 32 MB, Flash: 16 M
Power Require power input : 12 V DC
PowerConsumption : 5W
Ethernet Number of (Channels) : 1
Bit Rate : 10/100 Mbps
Video Encode Number of Channels : 4
Input video type : NTSC / PAL
Compression type : MPEG4 ISO/IEC 14496-2, SOP @LEVEL3
Performance : NTSC 320x240 @ 120fps, PAL 352x288@100fps
Audio Encode Number of Channels : 4
Sample Rate : 8 KHz, Mono
Audio compression type : ADPCM
Audio play-out Number of (Channels) : 1
Audio stream format : MP3 like streaming
Sample Rate : 44.1 KHz, Mono
RS-232 Number of Channels : 1
Connector : DB9 male
Operation temperature -15 °C ~(+) 65 °C
Storage temperature -40 °C ~(+) 85 °C
Certification EMI,CE / FCC / VCCI

IVS-255 Real-time MPEG4 Industrial Video Server
