VPD-130-H/VPD-130N-H/132-H/132N-H/133-H/133N-H

~ NEW ~ ~ NEW ~
Model: VPD-130-H Model: VPD-130N-H
~ NEW ~ ~ NEW ~
Model: VPD-132-H Model: VPD-132N-H
~ NEW ~ ~ NEW ~
Model: VPD-133-H Model: VPD-133N-H

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • RTC (Real Time Clock)
  • Serial communication interfaces
  • Supports Ethernet (VPD-133-H/133N-H)
  • Rubber Keypad (VPD-130-H/132-H/133-H)
  • GUI design
  • Free HMIWorks development tool
  • Supports C language and Lader Designer
  • Supports user-defined third party protocol (C language)
  • ESD Protection: 4 kV
  • Front Panel: IP65 Waterproof
  • I/O Expansion Boards: XV-Boards
  • Operating temperature: -20 ~ 50°C

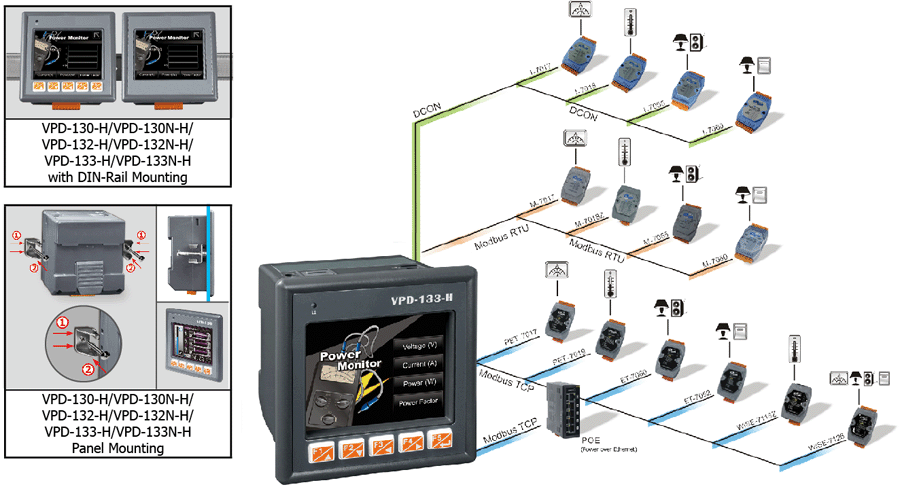

The TouchPAD VPD 3.5 inch H Series is a series of industrial touch HMI devices that features, 3.5" high resolution color touch screen LCD. With touchscreen capability, it is easy to deploy into all kinds of automation systems, and make them more intuitive and efficient. Either setup new system installations or complete system retrofits, VPD series stands out for its wide variety of communication methods. Its built-in communication ports include RS-232/RS-485, and Ethernet (for VPD-133-H/133N-H), enable integration into the system allowing users to control, monitor I/O at the remote sides. Besides, the built-in non-volatile storage makes VPD series more reliable for rugged environments.

HMIWorks, the free development software for VPD series, provides an easy-to-use environment, and powerful and intuitive programming with graphic capabilities to let users create appealing graphical interface screens in minutes. For PLC users, HMIWorks provides Ladder Designer and C language environment for IT users. Especially, it only takes no more than 30 minutes to learn how to create an application program when using Ladder Designer. With all the features provided, VPD series touch HMI devices must be the most cost effective HMI device ever been in the market.


Models VPD-130-H VPD-130N-H VPD-132-H VPD-132N-H VPD-133-H VPD-133N-H
CPU Module
CPU 32-bit RISC CPU
Memory Expansion 16 MB SDRAM/16 MB Flash
Real Time Clock (RTC) Yes
Buzzer Yes
Rotary Switch (0~9) Yes
Communication Interface
COM1 (RS-232/RS-485 including Self-Tuner) RS-485 (including Self-Tuner) +RS-232 (3-pin)
COM2 - RS-485 (including Self-Tuner)
USB 1.1 Client Firmware updates only
Ethernet - RJ-45 x 1, 10/100 Base-TX
I/O Expansion
I/O Expansion Bus Yes, XV-board
MMI (Main Machine Interface)
LCD 3.5 TFT (Resolution 240 x 320 x 16), defective pixels <= 3
Backlight Life 20,000 hours
Brightness 270 cd/m2
LED Indicator Yes - Yes - Yes -
Touch Panel Yes
Reset Button Yes
Rubber Keypad 5 keys (Programmable) - 5 keys (Programmable) - 5 keys (Programmable) -
Electrical
Powered from Terminal Block +12 ~ 48 VDC
Powered from PoE - IEEE 802.3af, Class1 (48 V)
Power Consumption 2 W
Mechanical
Dimensions (W x L x H) 103 mm x103 mm x 53 mm
Ingress Protection Front Panel: IP65
Installation DIN-Rail Mounting and Panel Mounting
Environmental
Operating Temperature -20 ~ +50°C
Storage Temperature -30 ~ +80 °C
Ambient Relative Humidity 10 ~ 90% RH, non-condensing
* The external (expanded) 8 MB flash is used only for firmware storage.

VPD-130-H CR 3.5" Touch HMI device with RS-232/RS-485 x 1, USB, RTC, Rubber Keypad and support XV-board (RoHS)
VPD-130N-H CR 3.5" Touch HMI device with RS-232/RS-485 x 1, USB, RTC and support XV-board (RoHS)
VPD-132-H CR 3.5" Touch HMI device with RS-232/RS-485 x 2, USB, RTC, Rubber Keypad and support XV-board (RoHS)
VPD-132N-H CR 3.5" Touch HMI device with RS-232/RS-485 x 2, USB, RTC and support XV-board (RoHS)
VPD-133-H CR 3.5" Touch HMI device with Ethernet, RS-232/RS-485 x 2, USB, RTC, Rubber Keypad and support XV-board (RoHS)
VPD-133N-H CR 3.5" Touch HMI device with Ethernet, RS-232/RS-485 x 2 , USB, RTC and support XV-board (RoHS)

4PCD-001 TouchPAD Accessory Package
  • Including CA-USB10 (USB to 5P Mini-USB, 28AWG, 1.5 m), 1C016 (2.4 mm Screw driver), a software CD
  • supported models: TPD-280U, TPD-430, TPD-430-EU
CA-USB10 USB to 5P Mini-USB, 28AWG, 1.5 m
MDR-60-24 CR 24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting (RoHS)
DIN-KA52F CR 24 VDC/1.04 A, 25 W Power Supply with DIN-Rail Mounting (RoHS)
tM-7561 USB to Isolated RS-485 Converter
