NUWA 104M
  Introduction




















XScale based PC-104 Embedded Board
Windows CE embedded
3.5¡¨ Xscale 400MHz CPU
PC-104 form factor

  NUWA 104M specification

UNIT Specification Note
CPU INTEL PXA255 400MHz
Memory
  • Main FLASH 32MB
  • (M-system DOC 32MB optional)
  • Data FLASH 8MB
  • SDRAM 64MB
  • SRAM 512KB
( SRAM Battery backup)
Storage Compact Flash Card
Display TFT or STN LCD 640x480 16-bit-color
Ethernet 10/100Mbps RJ-45 output
Audio AC-97' codec Line Out, MIC In
USB
  • Host 2 ports
  • Client 1 ports
Cable output
IO device
  1. debug COM port
  2. Standard UART
  3. RS-485
  4. Real Time Clock
  5. Serial Number chip
  6. EEPROM 128KBytes
  1. for debug using
  2. 3-wire RS-232
  3. isolation
Expansion port Standard PC104 slot
Power Input: 5V,12V, Power: 6W max Not include LCD



  Environmental characteristics

Temperature Operating 0¢Xc ~ 60¢Xc
Cooling Method Convection
Humidity +40¢Xc or below <91% relative humidity
41¢Xc to 55¢Xc <61% relative humidity
Altitude Operating 3000m

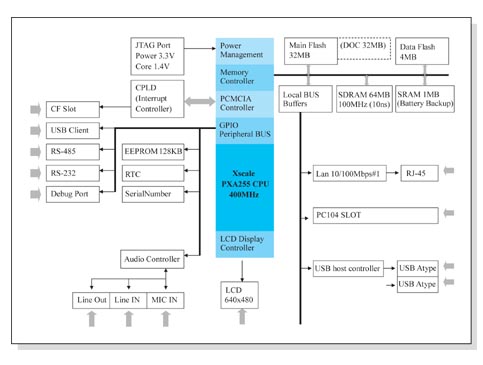

  System Block Diagram
