I-7232D
CANopen / Modbus RTU Gateway |
|
|
|
|
|
|
|
| |
|
|
| |
The I-7232D is one of ICP DAS CAN bus products. The device allows a CANopen master to access the Modbus slave devices on some Modbus RTU network. Modbus RTU protocol is a kind of application protocol based on RS485 network. Therefore, this gateway provides an easy way to connect Modbus RTU |
|
| |
devices with CANopen network. These Modbus RTU devices may be a PLC, a Modbus RTU sensor, ICPDAS M-7000 series modules and so fourth. In addition, we also provide the utility software for users to configure the I-7232D¡As parameters and build the EDS file for CANopen master interface. Users can easily apply Modbus RTU devices in CANopen applications with the I-7232D. |
|
|
|
|
|
| |
|
|
| |
|
|
| |
• Control System •
Building Automation • Factory Automation • Distributed data acquisition
 |
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
-
-
Error Control: Node Guarding protocol
-
Node ID: Setting by CAN_MRU Utility Software or LSS Protocol
-
PDO Modes: Event-triggered, remotely requested,
cyclic and acyclic SYNC
-
PDO Mapping: variable
-
No of SDOs: 1 server, 0 client
-
Emergency Message: Yes
-
CANopen Version: DS-301 v4.02
-
Device Profile: DSP-401 v2.1
-
CiA DSP-305 V1.1
-
CAN Baud Rate setting by utility: 10K, 20K, 50K, 125K, 250K, 500K, 800K, 1M bpse
-
Modbus Baud Rate setting by utility: 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200 bps
-
RUN, ERR, and OVERRUN LED indicators
-
Support max 10 Modbus RTU I/O series modules
-
Provide friendly Utility for parameters configuration
-
7-segmemt LED to show Node ID, CAN baud rate and RS-485 baud rate
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |

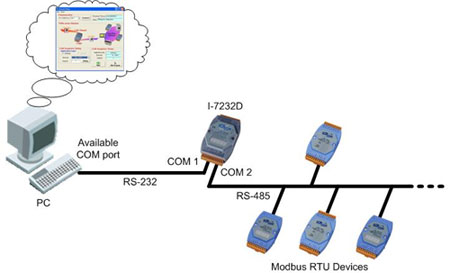

The I-7232D Utility helps users to configure the devices, and has following features:
-
Support CANopen node ID, baud
rate setting
-
Provide Modbus RTU parameters setting
-
Display Modbus RTU devices configuration
-
Show CANopen application objects configuration
-
Produce EDS file Dynamically
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
| |
|
| |
The simple steps about how to
use CPS_DCON gateway are described as follows:
- Select Modbus RTU devices for users' CANopen application
- Set the Modbus RTU devices 10 parameters into I-7232D by CAN_MRU Utility
- Configure the I-7232D and create EDS file
- Apply EDS file to CANopen application
- Implement the I-7232D in CANopen network
|
| |
|
| |
|
|
|
| |
|
| |
|
| |
Only the following Modbus RTU commands are supported by the gateway.
Code |
Name |
Description |
01 |
Read Coil Status |
Read the ON/OFF status of discrete outputs in the slave |
02 |
Read Input Status |
Read the ON/OFF status of discrete inputs in the slave |
04 |
Read Input Registers |
Read the binary contents of input registers in the slave |
06 |
Preset Single Register |
Preset an integer value into a single register |
15 |
Force Multi Coils |
Forces each coil in the sequence of coils to either ON or OFF |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
Hardware |
Watchdog |
Watchdog IC |
CAN Interface |
Controller |
NXP SJA1000T with 16 MHz clock |
Transceiver |
NXP 82C250 |
Connector |
5-pin screwed terminal block (CAN_L, CAN_H, N/A for others) |
Isolation |
1000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
Protocol |
CANopen DS-301 ver4.02, DS-401 ver2.1 |
UART Interface |
COM 1 |
RS-232 (For configuration) |
COM 2 |
RS-485 (Self-turner inside) |
Baud Rate (bps) |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
Data bit |
7, 8 |
Stop bit |
1, 2 |
Parity |
None, Even, Odd |
Protocol |
Modbus RTU |
LED |
Round LED |
MS LED, NS LED, IO LED |
5-digit 7 Segment |
Yes |
Power |
Power supply |
Unregulated +10 ~ +30 VDC |
Protection |
Power reverse polarity protection, Over-voltage brown-out protection |
Power Consumption |
3 W |
Mechanism |
Dimensions |
72mm x 122mm x 33mm (W x L x H) |
Environment |
Operating Temp. |
-25 ~ 75 ¢J |
Storage Temp. |
-30 ~ 80 ¢J |
Humidity |
10 ~ 90% RH, non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
¡@I-7232D-G |
CANopen Slave / Slave / Modbus RTU Master Gateway |
¡@I-7232D-G CR |
CANopen Slave / Slave / Modbus RTU Master Gateway (RoHS) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
