EIP-2042
~ Available soon ~
Isolated 16-ch DO EtherNet/IP module

The EIP-2000 is an industrial remote I/O module series supporting the EtherNet/IP protocol. Users can seamlessly integrate these modules into the Ethernet network from the industrial floor to the enterprise. The EIP-2000 allows daisy chain connection which permits the flexibility in locating devices, eases installation and lowers infrastructure costs. All the modules can be deployed in the network topologies such as star, line or ring. The isolation design protects the EIP-2000 against the harmful interference.

The EIP-2042 is a remote digital output module with 16 outputs. It is designed as an EtherNet/IP adapter. Users can obtain the output status as well as the connection status of the EIP-2042 by the LEDs indication. In addition, ICPDAS provides software utility to easily configure and test the EIP-2000 modules via Ethernet.

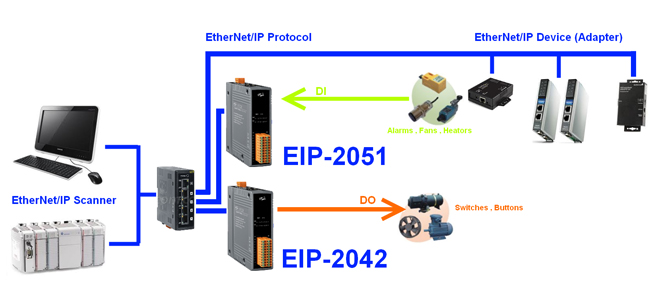

Building Automation
Factory Automation
Machine Automation
Remote Maintenance
Remote diagnosis
Testing Equipment

back

General Features:

Transfer protocol: EtherNet/IP

Powerful 32-bit MCU handles efficient network traffic

10/100 Base-TX Ethernet, RJ-45 x 2 (Auto-negotiating, auto MDI/MDIX, LED Indicators)

Support ARP,TCP, UDP, ICMP, DHCP, BOOTP and TFTP protocols

Easy firmware update via Ethernet

Removable terminal block connector

LED display to indicate the I/O status

Built-in I/O

DO: 16 Channels

Power-On-Value

Safe-Value

RoHS compliant

back

ICP DAS provides the EIP-2000 configuration utility for Windows 2K/XP/Vista and Win 7.

Network parameters configuration
Functions configuration such as Power-On-Value and Safe-Value
Easy test to transmit/receive the I/O status by EtherNet/IP
Setting files management.

back

Digital Output
Channels	16
Isolation Voltage	3750 VDC
Type	Open Collector
Sink/Source(NPN/PNP)	Sink
Load Voltage	+3.5 ~ +50 V
Max. Load Current	700mA per channel
Communication Interface
Connector	10/100 Base-TX, 8-pin RJ-45 x 2 Support daisy chain connection.
Standard Supported	IEEE 802.3 Ethernet/IP
Power
Input Voltage Range	10V ~ 30V
Power Consumption	1.6W
Mechanism
Installation	DIN-Rail
Dimensions	110mm x 90mm x 33mm (H x W x D)
Environment
Operating Temperature	-25℃ ~ +75℃
Storage Temperature	-30℃ ~ +80℃

back

EIP-2042 CR

Isolated 16-ch DO EtherNet/IP Module (RoHS)
