WP-8136, WP-8436, WP-8836 ~NEW~ |
|
|
| |
|
| |
|

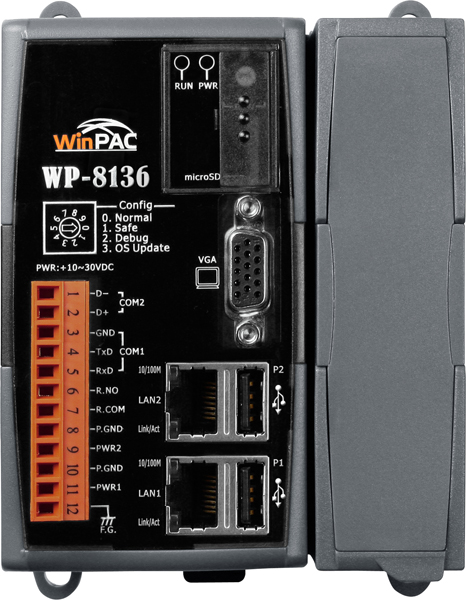

| Model: WP-8136 |

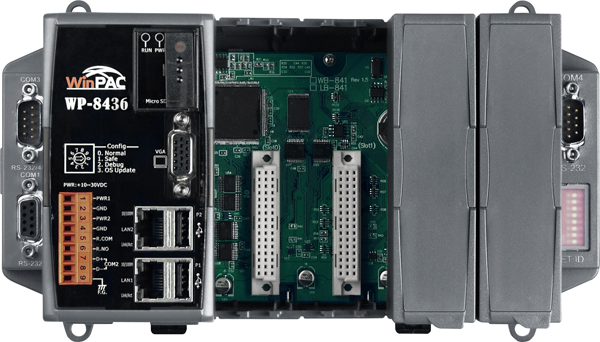

Model: WP-8436 |
|

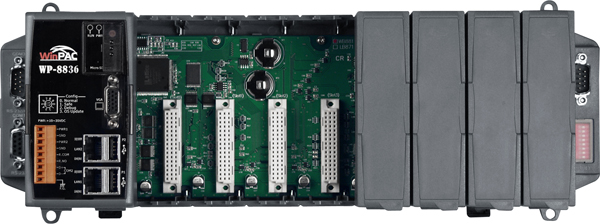

| Model: WP-8836 |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
 |
|
|
| |
|
|
| |
|
|
| |
ICP DAS WinPAC-8x36 Series (WP-8136/8436/8836) is the new generation WinCE based PAC (Programmable Automation
|
|
| |
Controller). It features with the powerful InduSoft Web Studio and ISaGRAF. InduSoft is the most powerful, integrated collection of e- |
|
| |
automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Super- |
|
| |
visory Control and Data Acquisition (SCADA) systems. ISaGRAF is a PLC-like software and supports all five IEC61131-3 languages |
|
| |
(LD, ST, FBD, SFC, FC). |
|
| |
WinPAC-8x36 equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 Operating System, variant connectivity (10/100 Base- |
|
| |
TX dual Ethernet, RS-232, RS-485, VGA, and USB ports) and 1/4/8 slots for high performance Parallel-type I/O modules |
|
| |
(High Profile I-8K series) and Serial-type I/O modules (Hot-Swap High Profile I-87K I/O modules). Memories come with 128 MB |
|
| |
SRAM, 512 KB dual battery backup SRAM, 128 MB FLASH & 16 GB microSD. For redundant supporting: dual Watchdog Timers, |
|
| |
redundant power inputs, dual battery backup SRAM, dual Ethernet Ports. WinPAC-8x36 Series will upgrade your system! |
|
| |
|
|
| |
 WinPAC-8000 Application Videos |
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
 WinPAC-8000 Software Features |
 Windows CE.NET 5.0 |
| Remote Maintenance via FTP Server and VCEP software |
| Built-in OPC Server (Quicker) |
| Rich Software Solutions (VS.NET 2003/2005/2008 and eVC) |
| Upgrading applications from WinCon-8000 to WinPAC-8000 just Copy and Play |
| |
 |
| |
| for more information. |
| |
|
|
| |
| WinPAC-8000 Hardware Features |
| Built-in VGA Port |
| I/O module HotSwap Ability (only for high profile I-87K modules) |
| Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN) |
| built-in Flash Disk (96MB) |
| Dual Watchdog Timer, Battery-Backup (512KB), and Ethernet Port |
| Redundant Power Input |
| |
| for more information. |
|
|
| |
| InduSoft Web Studio General Features |
| IWS applications run on microcomputers connected in real-time to machines or processors through WinPAC programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system. |
| |
| Intuitive script language with more than 100 standard functions is provided. |
| Conform to industry standards such as Microsoft.NET, OPC, DDE, ODBC, XML. |
| Full-Featured WinCE-based run-time environment (CE View). |
| Dynamic library of symbols - customizable. |
| ActiveX container (Windows NT/2000/XP/CE). |
| Automatic e-mail (SMTP) and dial-up connection interface supported. |
| Provide multi-level security for applications, including the Internet and Intranet. |
| |
 |
| |
| |
|
|
| ISaGRAF General Features |
| Support five IEC61131-3 languages, LD,ST, FBD, SFC, IL plus FC. |
| Modbus RTU/TCP protocol to integrate to SCADA software and HMI |
| Controller to Controller Data Exchange via Ethernet: Ebus. |
| All I-7000 & I-87K series I/O modules can be integrated as remote I/O modules. |
| Auto-scan I/O : Automatically scan I/O boards & declare I/O variables. |
| Motion: Motion control is available when I-8091 boards integrated. |
| Web HMI: Monitoring and control the local or remote controller via the Internet Explorer running on your PC. |
| |
 |
| |
|
|
|
|
|
| |
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
| System Software |
|
OS |
Windows CE 5.0 |
.Net Compact Framework |
2.0 |
Embedded Service |
FTP Server, Web Server |
| Development Software |
|
| InduSoft Software |
InduSoft Web Studio v6.1 |
| ISaGRAF Software |
ISaGRAF Version 3 : IEC 61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC |
| Others |
Options: Microsoft EVC++4.0 or VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008) |
| Web Service |
|
| Web HMI |
Support Web HMI function, PC running Internet Explorer can access to the WP-8x36 via Local Ethernet or Internet or dial Modem, monitoring and control. |
| Security |
Web HMI supports three levels user name and password protection |
| Power Supply |
|
| Input Range |
+10 ~ +30 VDC (unregulated) |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Protection |
WP-8136: 1.0 A, 5 V supply to CPU and backplane; 0.6 A, 5 V supply to I/O expansion slots, total 8 W
WP-8436: 1.1 A, 5 V supply to CPU and backplane; 4.9 A, 5 V supply to I/O expansion slots, total 30 W
WP-8836: 1.2 A, 5 V supply to CPU and backplane; 4.8 A, 5 V supply to I/O expansion slots, total 30 W |
| Consumption |
WP-8136: 7.3 W (0.3 A @ 24 V);
WP-8436: 9.1 W (0.38 A @ 24 V);
WP-8836: 9.6 W (0.4 A @ 24 V); |
| General Environment |
|
| Temperature |
Operating: -25 ¢XC ~ +75 ¢XC ( -13 ¢X F ~ +167 ¢X F) ,
Storage : -30 ¢XC ~ +85 ¢XC ( -40 ¢X F ~ +176 ¢X F) |
| Humidity |
5 % ~ 95 % RH (non-condensed) |
| System |
|
| CPU |
CPU: PXA270, 32-bit and 520 MHz or compatible |
| Dual Watchdog Timer |
Watchdog: Dual Watchdog Timer |
| RTC (Real Time Clock) |
Gives hour, minute, sec, day of week, day of month, month & year, valid up from 1980 ~ 2079 |
| SRAM |
128 MB |
Dual Battery Backup SRAM |
512 KB (for 5 years data retain while power off) |
| FLASH |
96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry) |
Expansion Flash Memory |
microSD socket with 1 GB flash card |
| EEPROM |
16 KB, Data retention: 40 years. 1,000,000 erase/write cycles |
| I/O Slots |
WP-8136: 1 slot (slot0); WP-8436: 4 slots (slot0 ~ slot3); WP-8836: 8 slots (slot0 ~ slot7);
Accept High Profile I-8K Parallel & High Profile I-87K Serial I/O boards
I/O Module Hot Swap Ability: for High Profile I-87K only |
| Rotary Switch |
Yes (0~9) |
| DIP Switch |
WP-8436 & WP-8836: Yes, 8 bits DIP Switch; WP-8136 : no DIP Switch |
| LED, NET ID |
1 programmable LED indicator. NET ID: From 1 ~ 255, set by software |
| Unique Serial Number |
Yes,64-bit hardware unique serial number |
| Serial Ports |
|
| VGA Port |
1 VGA port with an extra GPU (resolution: 1024x768, 800x600, 640x480) |
| USB Port |
2 ports |
COM0 |
Internal communication with the I-87K High Profile modules in slots |
| COM1 |
RS-232 (RxD, TxD, and GND); Non-isolation; Speed: 115200 bps max. |
| COM2 |
RS-485 (D2+, D2-; self-tuner ASIC inside); 2500 VDC isolation for 1 slot controller and 3000 VDC isolation for 4/8 slots controller; Speed: 115200 bps max. |
| COM3 |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232,
DATA+ and DATA- for RS-485); Non-isolation;
Speed: 115200 bps max. (WP-8136 has no COM3 & COM4.) |
| COM4 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation;
Speed: 115200 bps max. (WP-8136 has no COM3 & COM4.) |
Dual Ethernet Ports |
2 Ethernet Ports: LAN1 & LAN2, 10/100 Base-TX Ethernet Controller
(Auto-negotiating, Auto MDI/MDI-X, LED indicator)
Please use NS-205/NS-208 Industrial Ethernet Switch. |
|
|
| |
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
| WP-8136-EN |
InduSoft and ISaGRAF based WinPAC-8000 with 1 I/O slot (English version of OS) |
| WP-8436-EN |
InduSoft and ISaGRAF based WinPAC-8000 with 4 I/O slots (English version of OS) |
| WP-8836-EN |
InduSoft and ISaGRAF based WinPAC-8000 with 8 I/O slots (English version of OS) |
| WP-8136-TC |
InduSoft and ISaGRAF based WinPAC-8000 with 1 I/O slot (Traditional Chinese version of OS) |
| WP-8436-TC |
InduSoft and ISaGRAF based WinPAC-8000 with 4 I/O slots (Traditional Chinese version of OS) |
| WP-8836-TC |
InduSoft and ISaGRAFbased WinPAC-8000 with 8 I/O slots (Traditional Chinese version of OS) |
| WP-8136-SC |
InduSoft and ISaGRAF based WinPAC-8000 with 1 I/O slot (Simplified Chinese version of OS) |
| WP-8436-SC |
InduSoft and ISaGRAFbased WinPAC-8000 with 4 I/O slots (Simplified Chinese version of OS) |
| WP-8836-SC |
InduSoft and ISaGRAFbased WinPAC-8000 with 8 I/O slots (Simplified Chinese version of OS) |
| WP8-GUP-17000 |
Upgrade the WP-8xx1 to become WP-8xx7 (or Upgrade the WP-8xx9 to become WP-8xx6) |
** The default runtime license (CEView Lite Plus - 300 tags and 3 driver) is installed. ** |
|
|
| |
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
ISaGRAF
Development Software |
|
ISaGRAF Workbench Software Ver.3 (256 I/O Tags) with One Application Book (English version) and one USB Dongle |
|
ISaGRAF Workbench Software Ver.3 (256 I/O Tags) with One Application Book (Chinese version) and one USB Dongle |
|
ISaGRAF Workbench Software Ver.3 (32 I/O Tags) with One Application Book (English version)
ReadMe
Note: ISaGRAF-32 cannot upgrade to become ISaGRAF-256 |
|
ISaGRAF Workbench Software Ver.3 (32 I/O Tags) with One Application Book (Chinese version)
ReadMe
Note: ISaGRAF-32 cannot upgrade to become ISaGRAF-256 |
InduSoft
Development Software |
InduSoft-NT512000D |
Advanced Server for Windows NT/2000/XP (512,000 Tags, unlimited drivers) |
InduSoft-NT64000D |
Control Room for Windows NT/2000/XP (64,000 Tags, 8 drivers) |
InduSoft-NT4000D |
Operator Workstation for Windows NT/2000/XP (4,000 Tags, 5 drivers) |
InduSoft-NT1500D |
Local Interface for Windows NT/2000/XP (1500 Tags, 3 drivers) |
InduSoft-NT300D |
NTView PRO for Windows NT/2000/XP (300 Tags, 3 drivers) |
InduSoft
Runtime License |
InduSoft-CE1500R |
CEView standard for Windows CE Run-time (CE View)(1500 Tags, 3 drivers) |
| InduSoft-CE300R |
CEView Lite Plus for Windows CE Run-time (300 Tags, 3 drivers) |
|
|
| |
|
|
|
|
| |
|
|
| |
|
|
|
|
|
| |
| NS-205 CR |
Unmanaged 5-port Industrial Ethernet Switch (RoHS) |
| NS-208 CR |
Unmanaged 8-port Industrial 10/100 Base-T Ethernet Switch (RoHS) |
| RU-87Pn |
Remote Intelligent I/O Expansion Unit ( It used to expand I-87K series I/O modules over the RS-485 ) |
| ADP-1080T-R |
8" Color Industrial Display Monitor with Sealed Touch Screen, RS-232 Interface. |
| Touch 500 |
Touch LCD Monitor (RS-232/RS-485) |
| DP-660 |
24 V/2.5 A , 5 V/0.5 A Dual Output Power Supply |
| DP-665 |
24 V/2.5 A , 5 V/0.5 A Dual Output Power Supply |
| DP-1200 CR |
24 V/5 A Power Supply (RoHS) |
Note1:
The I-7000 & I-87K series provides cost-effective protection and signals conversion for a wide range of valuable industrial control signals and control systems. Our product line includes RS-232 to RS-485 Converter, Digital I/O, Timer/Counter, Data Display, and application programs. I-7000 modules are good for a small amount of I/O channels, while I-87K I/O expansion units are good for medium amount of channels. |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
|
|
|
