VXC-142U/VXC-142iU
Universal PCI Bus, 2-port RS-422/485 Communication Board |
 |
 |
 |
 |
 |
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The VXC-142U/VXC-142iU card provides two independent RS-422/RS-485 serial ports, while the VXC-142iU card provides isolation voltage up to 3 kV. Each port can be configured as either RS-485 for half-duplex or RS-422 for full-duplex communication. It is equipped with 128 bytes hardware FIFO for each port, offers speed up to 115200 bps and supports full-duplex communication.
The user can select a specified COM port number manually by setting dip switch, or let the driver to choose an available number automatically. The driver provides a maximum of 128 KB software FIFO for each COM port under Windows. It's practical for large file transmission.
In the harsh industrial environment, the on board ESD protection can protect the computer and equipment from being damaged by high potential voltage, along with the basic communication features. |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Built-in COM-Selector
- Self-Tuner Inside
- Up to 128 KB software FIFO for each COM port under Windows
- Short Card Design
- Supports 3.3 V/5 V PCI bus, Plug and Play
- Provides 2-port RS-422/485
- +/-4 kV ESD Protection
- LED diagnostic indicators
[VXC-142iU only]
- 3 kV Isolated ports
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- DOS Lib
- Driver for Windows NT 4.0
- Driver for Windows 2000/XP/2003
- Driver for Linux
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Industrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Models |
VXC-142U |
VXC-142iU |
| Communication Port |
| COM1 ~ COM2 |
RS-422/485 |
The RS-422 and RS-485 cannot be used simultaneously |
| RS-422 |

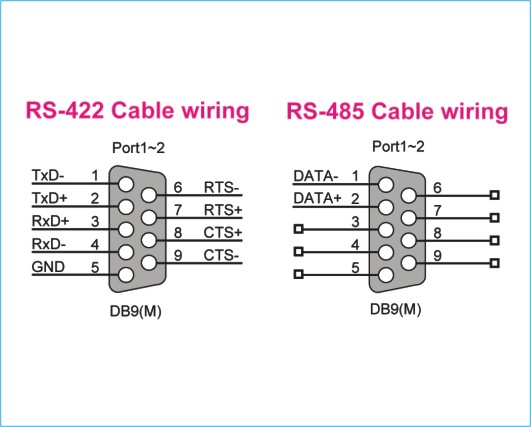

TxD+, TxD-, RxD-, RxD+, RTS+, RTS-, CTS+, CTS-, GND |
| RS-485 |
Data+, Data-, GND |
| UART |
16C950 compatible |
| Baud Rate |
50 ~ 115200 bps |
| Data bit |
5, 6, 7, 8 |
| Stop bit |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Mark, Space |
| FIFO |
Internal 128 bytes |
| Isolation |
- |
3000 V |
| General |
| Bus Type |
Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play mechanism |
| COM-Selector |
Yes (8-bit DIP switch) |
| Connector |
2 x DB9 (Male) |
| Power Consumption |
100 mA @ 5 V |
480 mA @ 5 V |
| Operating Temperature |
0 ¢XC ~ +60 ¢XC |
| Storage Temperature |
-20 ¢J ~ 70 ¢J |
| Humidity |
0 ~ 90% RH, non-condensing |
| Dimensions (L x W) |
130 mm x 105 mm |
140 mm x 95 mm |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| VXC-142U |
Universal PCI Bus, 2-port RS-422/485 Communication Board |
| VXC-142iU |
Universal PCI Bus, 2-port Isolated RS-422/485 Communication Board |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-0910F |
9-pin Female-Female D-sub Cable 1 M |
| DN-09-2F |
I/O Connector Block with DIN-Rail Mounting and two 9-pin Male Header. Includes CA-0910F x 2 (9-pin Female-Female D-sub Cable 1 M). |
| CA-090910 |
9-pin Female D-sub cable for RS-422 connector, 1 M |
| CA-PC09F |
9-pin Female D-sub connector with plastic cover |
| CA-0915 |
9-pin Male-Female D-sub cable, 1.5 M |
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
