XP-8049-CE6 / XP-8349-CE6 / XP-8749-CE6
XP-8000 Programmable Automation Controller with InduSoft inside |
|
| |
| ~ Phased-out ~ |
|
|
|

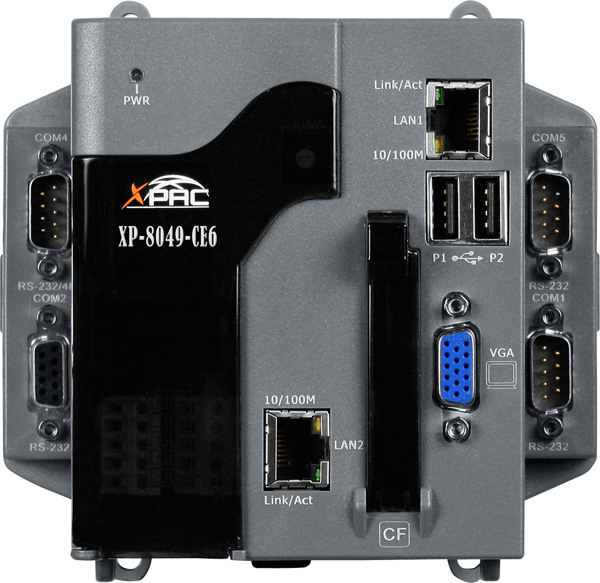

Model: XP-8049-CE6 |

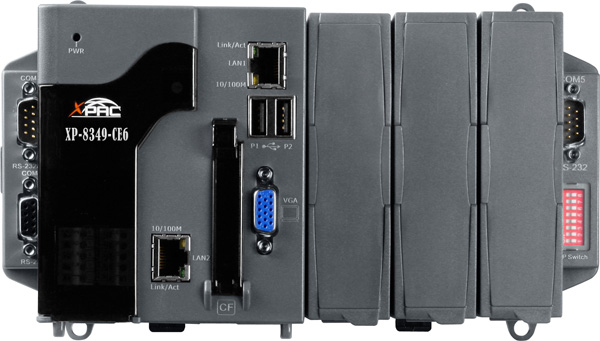

Model: XP-8349-CE6 |

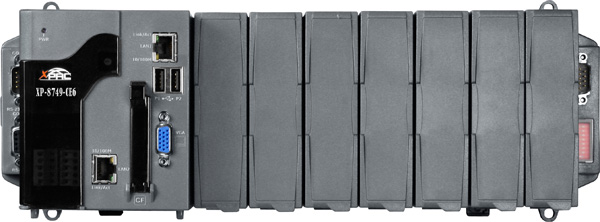

Model: XP-8749-CE6 |
|
| |
| |
 |
XP-8x49-CE6 is the new generation Windows CE6.0 embedded PAC (Programmable Automation Controller) with InduSoft Runtime pre-installed. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop HMI (Human Machine Interface) and SCADA (Supervisory Control and Data Acquisition system.
XP-8000-CE6 series equips a AMD LX 800 CPU (500MHz), variant connectivity (VGA, USB, Ethernet, RS-232/RS-485), and 3/7 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules).
Its operating system, Windows CE6.0 is an operating system with resource saving and real-time capability as their main features.
|
| |
| |
| |
|

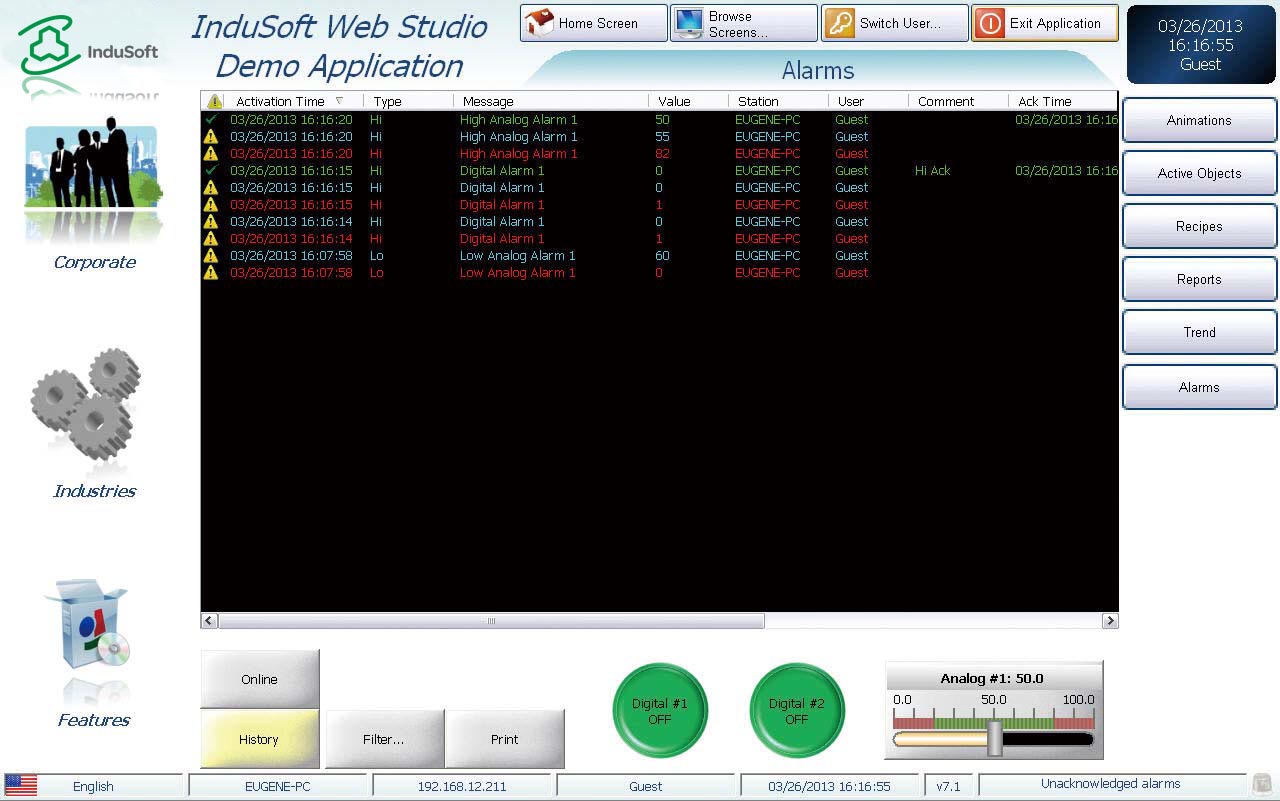

 Alarms |
| In addition to the many alarm functions you expect from InduSoft Web Studio,v7.1 also sends online alarms or reports using multi-media formats like PDF.Alarms are real-time and historical; log data in binary format or to any database.Use remote notification to have alarms sent right to your inbox, printer,or smartphone! Custom Alarm fields allow you to customize up to 10 additional fields to the history of alarms. |
| |
 |
| |
| back |
|
| |

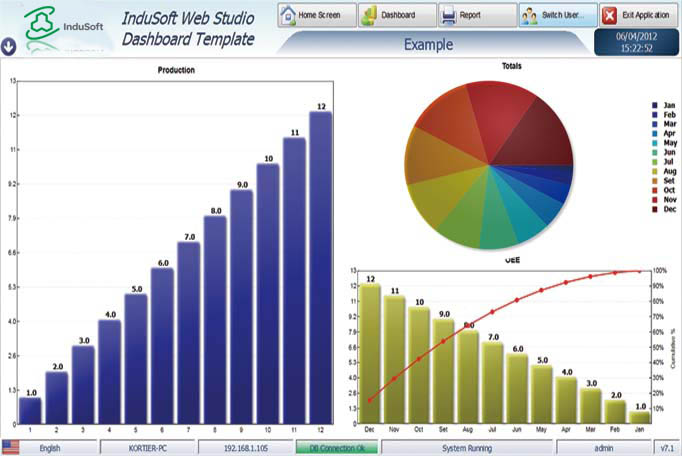

| Recipe / Report |
| Save time and maintain consistency by automating part parameters or production quantities with flexible recipe management tools. Create clear,concise reports in plain text, RTF, XML, PDF, HTML, and CSV or integrate with Microsoft Office programs such as Excel. Get the data you need, in the format you need it, to make informed decisions, fast. InduSoft has also partnered with Ocean Data Systems to offer further reporting capabilities through Dream Report for Indu-Soft Web Studio, available as an add-on. |
| |
 |
| |
| back |
|
| |

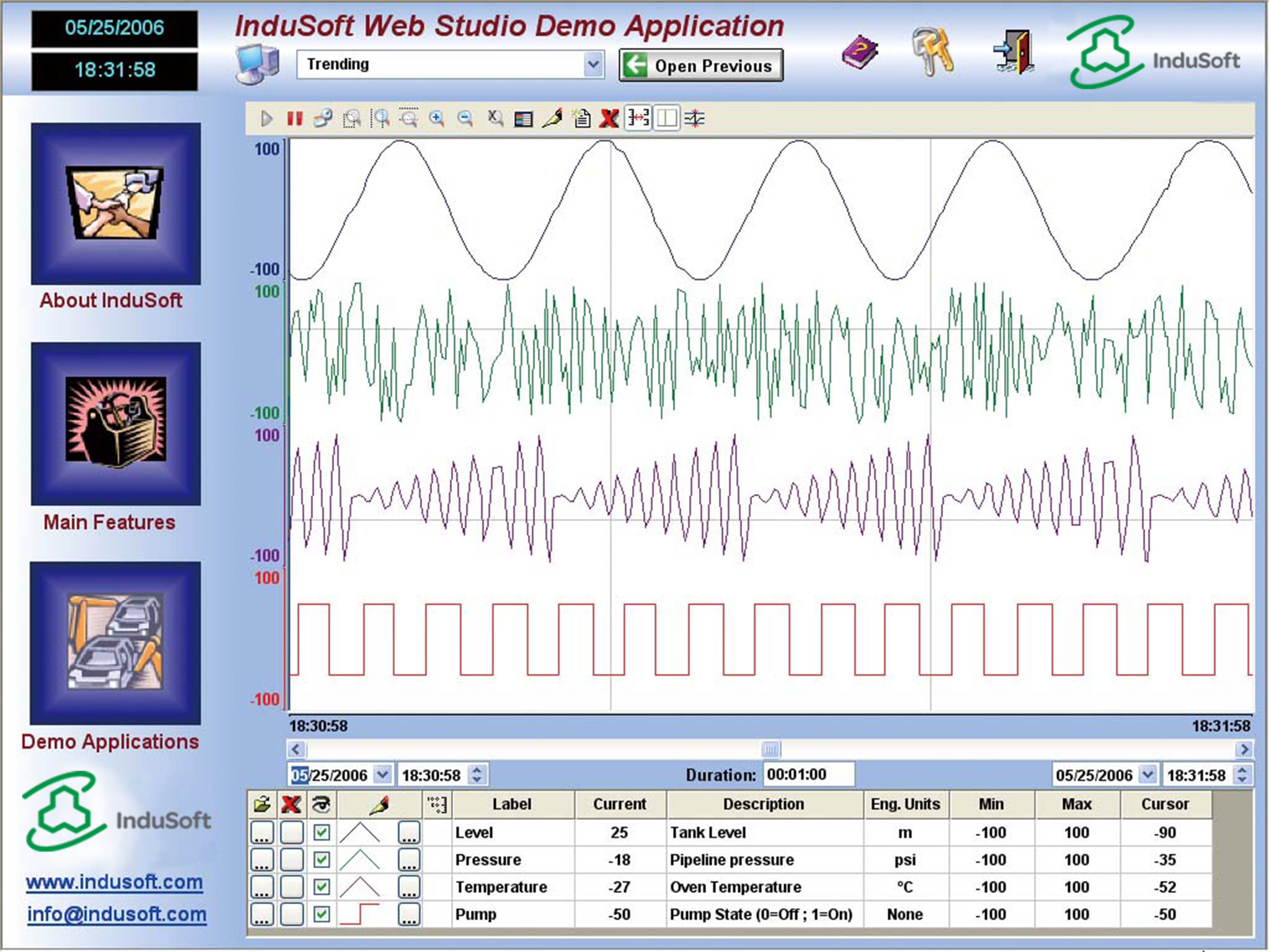

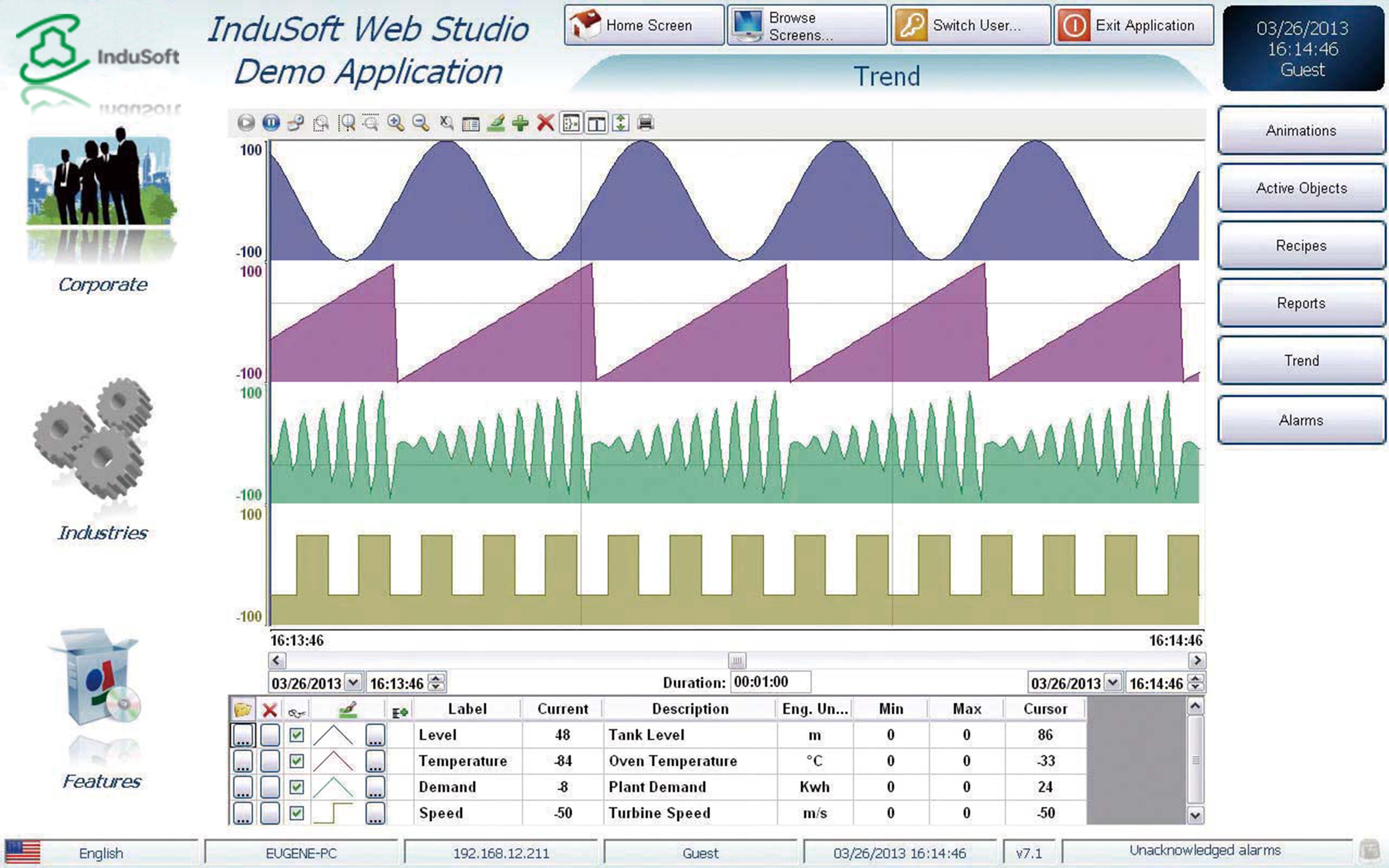

| Trend |
| Real-time and Historical trends, and SPC functionality are supported.Log data in binary format. or to any local or remote SQL database. Color or fill trends with graphic elements to enhance clarity of data. Date/Time based or numeric (X/Y plot) trends give you the flexibility to display information that best suits your application. InduSoft Web Studio supports vertical and horizontal trending. |
| |
 |
| |
 |
| |
| back |
|
| |
| Database |
| Connect to any SQL database (MS SQL, MySQL, Sybase, Oracle), or MS Access or Excel, and ERP/MES systems (including SAP), even from Windows Embedded CE.InduSoft Web Studio is flexible, offering a built in interface that doesn’t require knowledge of SQL (for trends, alarms/events, grid and other objects). Use any SQL statement you need, anywhere you need it. |
| |
 |
| |
| back |
|
| |

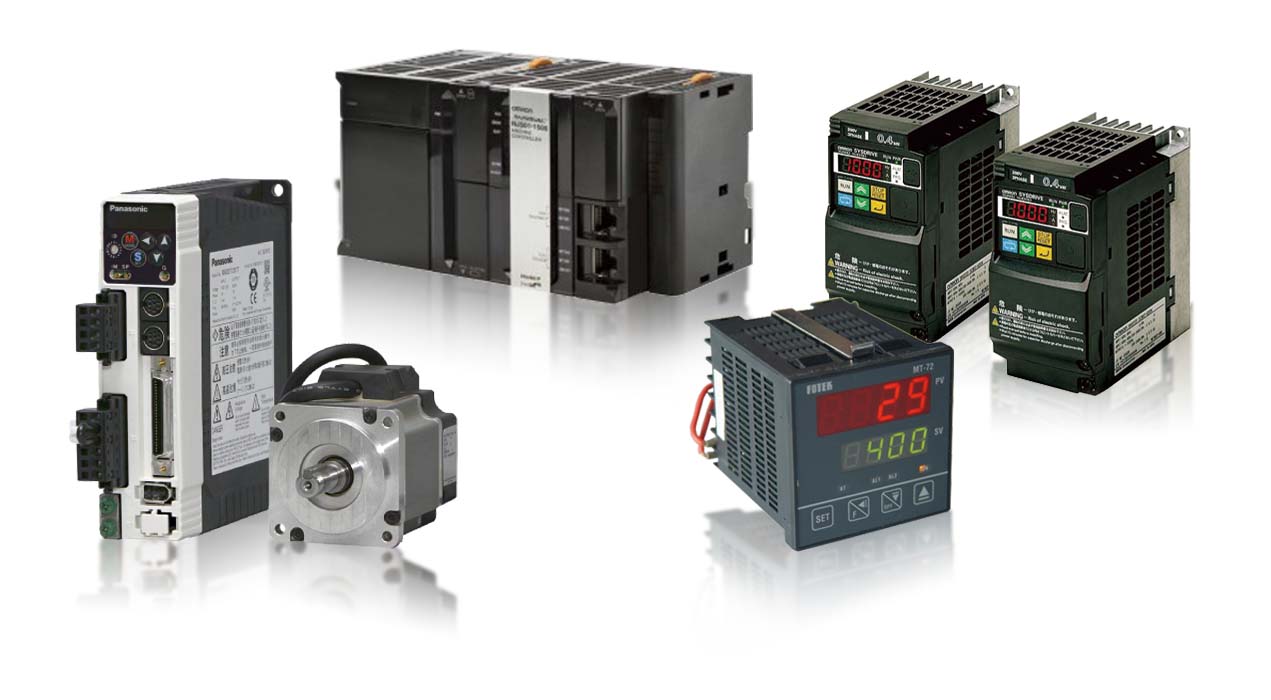

| Driver / OPC |
| provides over 240 native communication drivers for PLCs, temperature controllers, motion controllers, bar code/2D/RFID readers, and many other devices. Use these built in drivers, or connect to an OPC server. InduSoft driver toolkits even allow you the flexibility to build your own drivers. |
| |
 |
| |
| back |
|
| |
| Thin Clients |
| Remotely view screens as web pages using Internet Explorer web browser, or InduSoft Secure Viewer. Without installing any additional software and provide embedded firewall, remote client command disabled and login authority functions to protect the system security. |
| |
|
| |
| back |
|
| |
|
- AMD LX800 CPU (32-bit and 500MHz)
- 1 GB RAM
- 4GB Built-In Flash Disk
- Built-in VGA Port
- 64-bit Hardware Serial Number
- Dual Watchdog Timer
- Dual Battery-Backup SRAM (512KB)
- Dual Ethernet Port
- Redundant Power Input
- Ventilated Housing Design Allows Operation Between -25℃ ~ +75℃
|
| |
| back |
|
| |
|
| Models |
XP-8049-CE6 |
XP-8349-CE6 |
XP-8749-CE6 |
| System Software |
| OS |
Microsoft Windows CE 6.0 |
| Preloaded Software |
Runtime InduSoft Web Studio (CEView Pro: 300 Tags, 1 Drivers, and 4 Web Thin Clients) |
| CPU Module |
| CPU |
AMD LX800 processor (500MHz) |
| System Memory |
1 GB RAM |
| Dual Battery Backup SRAM |
512 KB (for 5 years data retain) |
| Flash |
4 GB as IDE Master |
| EEPROM |
16 KB |
| Data Retention: 40 years; 1,000,000 erase/write cycles |
| CF Card |
4 GB (support up to 32 GB) |
| 64-bit Hardware Serial Number |
Yes |
| Dual Watchdog Timer |
Yes |
| Rotary Switch |
Yes (0 ~ 9) |
| DIP Switch |
- |
Yes (8 bits) |
| VGA & Communication Ports |
| VGA |
640 x 480 ~ 1600 x 1200 |
| Ethernet Port |
RJ-45 x 2, 10/100 Base-TX Ethernet Controller
(Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| USB 2.0 |
2 |
| COM 1 |
- |
Internal communication with I-87K modules in slots |
| COM 2 |
RS-232 (RXD, TXD and GND); Non-isolation |
| COM 3 |
RS-485 |
D2+, D2-; self-tuner ASIC inside |
| Isolation |
3000 VDC |
| COM 4 |
RS-232 (RXD, TXD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation |
RS-232/RS-485 (RXD, TXD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); Non-isolation |
| COM 5 |
- |
RS-232 (RXD, TXD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation |
| I/O Expansion Slots |
| Slot Number |
0 slot |
3 slots |
7 slots |
| Hot Plug * Will be available |
- |
I/O Module Hot Swap Ability |
| Mechanical |
| Dimensions (W x L x H) |
116 mm x 132 mm x 125 mm |
231 mm x 132 mm x 125 mm |
355 mm x 132 mm x 125 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environmental |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +85 °C |
| Ambient Relative Humidity |
5% ~ 90% RH, non-condensing |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Isolation |
1 kV |
| Redundant Power Input |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
1.8A, 5V supply to CPU and backplane, total 15 W |
1.8A, 5V supply to CPU and backplane, 5.2A, 5V supply to I/O expansion slots, total 35 W |
2.0A, 5V supply to CPU and backplane, 5.0A, 5V supply to I/O expansion slots, total 35 W |
| Consumption |
14.4 W (0.6 A @ 24 VDC) |
14.4 W (0.6 A @ 24 VDC) |
16.8 W (0.7 A @ 24 VDC) |
|
| |
| back |
|
| |
|
| InduSoft Default Runtime License: 300 Tags, 3 Drivers |
| XP-8049-CE6 CR |
0 I/O slot InduSoft Based XPAC with WinCE 6.0 (OS: Multi-Language version) (RoHS) |
| XP-8349-CE6 CR |
3 I/O slots InduSoft Based XPAC with WinCE 6.0 (OS: Multi-Language version) (RoHS) |
| XP-8749-CE6 CR |
7 I/O slots InduSoft Based XPAC with WinCE 6.0 (OS: Multi-Language version) (RoHS) |
| |
| InduSoft Default Runtime License: 1500 Tags, 3 Drivers |
| XP-8049-CE6-1500 CR |
0 I/O slot InduSoft Based XPAC with WinCE 6.0 (OS: Multi-Language version) (RoHS) |
| XP-8349-CE6-1500 CR |
3 I/O slots InduSoft Based XPAC with WinCE 6.0 (OS: Multi-Language version) (RoHS) |
| XP-8749-CE6-1500 CR |
7 I/O slots InduSoft Based XPAC with WinCE 6.0 (OS: Multi-Language version) (RoHS) |
|
| |
| back |
|
| |
|
| DP-660 |
24 VDC/2.5 A, 60 W and 5 VDC/0.5 A, 2.5 W Power Supply with DIN-Rail Mounting |
| DP-1200 |
24 VDC/5.0 A, 120 W Power Supply with DIN-Rail Mounting |
| MDR-20-24 |
24 VDC/1.0 A, 24 W Power Supply with DIN-Rail Mounting |
| MDR-60-24 |
24 VDC/2.5 A, 60 W Power Supply with DIN-Rail Mounting |
| NS-205 CR |
Unmanaged 5-port Industrial Ethernet Switch (RoHS) |
| NS-208 CR |
Unmanaged 8-port Industrial 10/100 Base-T Ethernet Switch (RoHS) |
| RU-87Pn |
Remote Intelligent I/O Expansion Unit (It used to expand I-87K series I/O modules over the RS-485) |
| ADP-1080T-R |
8" Color Industrial Display Monitor with Sealed Touch Screen, RS-232 Interface |
| Touch 500 |
Touch LCD Monitor (RS-232/RS-485) |
|
| |
