    PFN-2053

    PROFINET I/O Module



    The PFN-2053 is specially designed for PROFINET IO device. It has 16-channel dry contact non-isolated digital inputs and, and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.



    Applications
    • Industrial Automation
    • Factory Automation
    • Process Automation
    • Etc…


    Features
    • Protocol: PROFINET IO Device
    • PROFINET Conformance Class B and RT Class 1
    • Cyclic Time: 1ms (min)
    • Generic GSDML File Provided (Version 2.25)
    • 4 kV Contact ESD protection for any terminal
    • Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +75°C)


    Utility

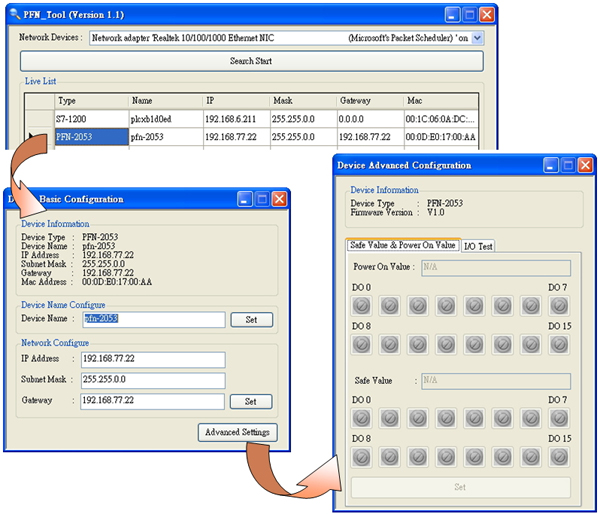

    ICP DAS provides the PFN_Tool configuration utility to configure devices.
    • Provide device search function
    • Show firmware version
    • Support network parameters configuration
    • Provide I/O test function



    Hardware Specifications
    Hardware
    CPU 32-bit CPU Core
    RAM/Flash/EEPROM 32 MB / 4 MB / 8 KB
    Watchdog CPU built-in
    ESD Protection 4 kV class A
    PROFINET Interface
    Protocol PROFINET IO Device
    Conformance Classes Class B
    Services RTC, RTA, CL-RPC, DCP, LLDP, I&M
    Cycle Time 1 ms (min)
    Ethernet Interface
    Controller 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
    Connector RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch
    Services ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
    Digital Input
    Channels 16, Dry Contact: Source,
    Dry Contact Level Off Voltage Level : Open, On Voltage Level : Close to GND
    LED
    Round LED PWR LED, S1A LED, S1B LED, S2A LED, S2B LED
    Power
    Power supply Unregulated +10 ~ +30 VDC
    Protection Power reverse polarity protection, Over-voltage brown-out protection
    Power Consumption 4 W
    Mechanism
    Installation DIN-Rail
    Dimensions 33 mm x 107 mm x 126 mm (W x L x H)
    Environment
    Operating Temp. -25 ~ 75 ℃
    Storage Temp. -30 ~ 80 ℃
    Humidity 10 ~ 90% RH, non-condensing


    Ordering Information
    PFN-2053 CR
    		 PROFINET I/O Module (Dry contact Non-Isolated 16-ch DI) (RoHS)
