  • GW-7662

    PROFINET to Modbus RTU/ASCII Gateway




    The GW-7662 specially designed for PROFINET IO device. It allows PROFINET controller to access Modbus devices. These Modbus devices maybe a PLC, a sensor, ICPDAS M-7000 series modules and so forth. We also provide a utility software for users to configure GW-7662. By using this module, users can put their Modbus devices into PROFINET network easily.

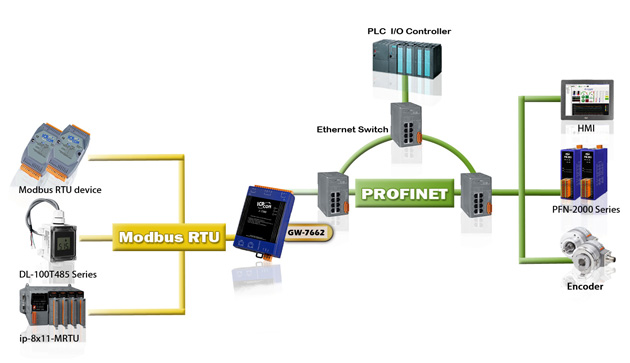

    Applications
    • Industrial Automation
    • Factory Automation
    • Process Automation
    • Etc…


    Features
    • Protocol: PROFINET IO Device
    • PROFINET Conformance Class B and RT Class 1
    • Cyclic Time: 1ms (min)
    • Generic GSDML File Provided (Version 2.25)
    • Max length of input/output data is 512/512 Bytes
    • Support Modbus Master and Slave mode
    • Support Modbus RTU and ASCII format
    • Support several kinds of baud rate for COM1 from 1.2 to 460.8 kbps
    • Provide LED indicators
    • 4 kV Contact ESD protection for any terminal
    • Wide range of power input (+10 to +30 VDC) and operating temperature (-25 to 75°C)


    Utility
    ICP DAS provides the PFN_Tool configuration utility to configure devices.
    • Provide Modbus device setting
    • Show diagnostic messages
    • Provide Modbus test function
    • Provide Communication Log of Modbus network

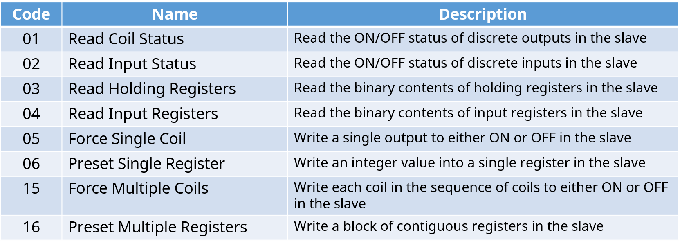

    Modbus Support


    Hardware Specifications
    Hardware
    CPU 32-bit CPU Core
    RAM/Flash/EEPROM 32 MB / 4 MB / 8 KB
    Watchdog CPU built-in
    ESD Protection 4 kV class A
    PROFINET Interface
    Protocol PROFINET IO Device
    Conformance Classes Class B
    Services RTC, RTA, CL-RPC, DCP, LLDP, I&M
    Cycle Time 1 ms (min)
    Ethernet Interface
    Controller 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
    Connector RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch
    Services ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
    UART Interface
    COM RS-232/RS-422/RS-485 (can't be used simultaneously)
    COM Connector 3-pin screwed terminal block (RxD, TxD, GND)
    4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-)
    2-pin screwed terminal block (DATA+, DATA-)
    Baud Rate (bps) 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800
    Data bit 7, 8
    Stop bit 1, 2
    Parity None, Even, Odd
    LED
    Round LED AP LED, BOOT LED, ERR LED
    Power
    Power supply Unregulated +10 ~ +30 VDC
    Protection Power reverse polarity protection, Over-voltage brown-out protection
    Power Consumption 3.4 W
    Mechanism
    Installation DIN-Rail
    Dimensions 42 mm x 76 mm x 119 mm (W x L x H)
    Environment
    Operating Temp. -25 ~ 75
    Storage Temp. -30 ~ 80
    Humidity 10 ~ 90% RH, non-condensing


    Ordering nformation
    GW-7662 CR
    PROFINET to Modbus RTU/ASCII Gateway (RoHS)
