    PROFIBUS/Single mode Fiber Converter

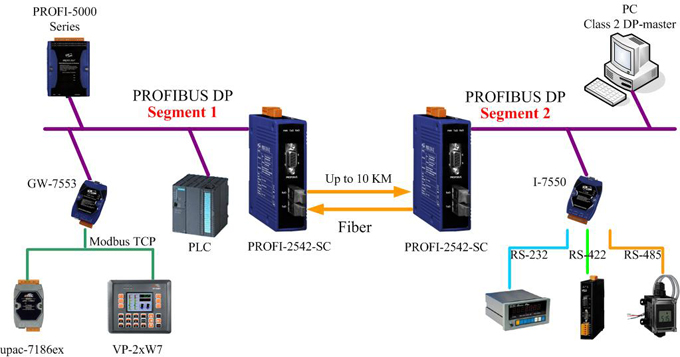

    Fiber optic transmission medium is a good material to protect data transmission from EMI/RFI interference and has been used in harsh environment extensively. On the other hand, PROFIBUS is famous in industrial application. In order to solve the problem between different transmission medium, PROFI-2542-SC is specially designed for converting PROFIBUS signal to single mode fiber optic cables.

    The fiber length between two PROFI-2542-SCs can be up to 10km. PROFI-2542-SC is the economic solution for applications which require protecting the data transmission from electrical exposure, surges, lightning or chemical corrosion.



    Applications
    • Industrial Automation
    • Factory Automation
    • Process Automation
    • Etc…


    Features
    • Support for PROFIBUS DP protocol
    • Detect transmission rate automatically(Max. 12Mbps)
    • Transparency on both side
    • Up to 32 stations per segment on PROFIBUS side
    • Fiber Wave Length: 1310 nm
    • Network Isolation Protection
    • 3000VDC isolation protection on PROFIBUS side
    • 4KV ESD Protection (contact for any terminal)


    Hardware Specifications
    Hardware
    ESD Protection 4 kV class A
    PROFIBUS Interface
    Transceiver ADI ADM2486
    Connector 9-pin female D-Sub
    Baud Rate (bps) 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
    Transmission Distance (m) Depend on baud rate (for example, max. 1200 m at 9.6 kbps )
    Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
    Fiber Interface
    Connector ST / SC ; Single mode ; 100 Base-FX
    Wave length 1310 nm
    Fiber Cable 9 / 125 μm recommended
    Transmission Distance (m) 10 KM (indicative only)
    LED
    Round LED PWR LED, TxD LED, RxD LED
    POWER
    Power supply Unregulated +10 ~ +30 VDC
    Protection Reverse polarity protection, Over-voltage brown-out protection
    Power Consumption 1 W
    Mechanism
    Installation DIN-Rail
    Dimensions 33.0 mm x 126.8 mm x 104.5 mm (W x L x H)
    Environment
    Operating Temp. -25 ~ 75℃
    Storage Temp. -30 ~ 85℃
    Humidity 5 ~ 95% RH, non-condensing


    Ordering Information
    PROFI-2542 CR
    		 PROFIBUS to Single mode Fiber Converter (ST type)
    PROFI-2542-SC CR
    		 PROFIBUS to Single mode Fiber Converter (SC type)
