I-7550E
 |
I-7550E-M
~ Available soon ~ |
|
|
|
|

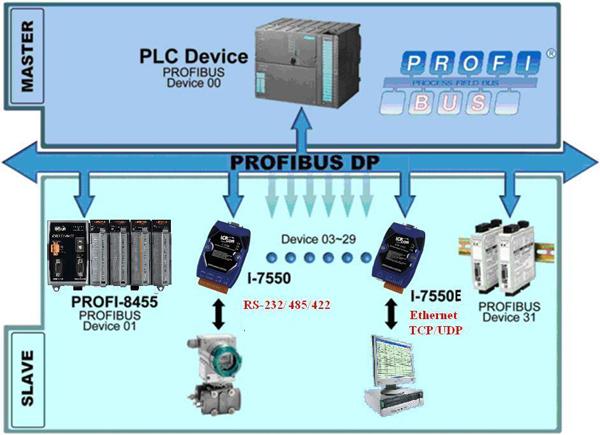

The I-7550E Converter is specially designed for the slave device of PROFIBUS DP protocol. It allows the PROFIBUS master to access any kinds of Ethernet devices supporting TCP/UDP protocol. The I-7550E can be set as TCP/UDP server and client, it's flexible for user to match their requirement. In addition, the I-7550E module built-in web server, the user can set the module by web browser. By using this module, users can put their Ethernet devices into PROFIBUS network very easily.
|
|
|
|
| Applications |
|
|
|
-
Industrial Automation
-
Factory Automation
-
Process Automation
-
Etc…
|
 |
|
|
|
|
| Features |
|
|
|
| Protocol & Hierarchy |
DP-V0 Slave |
| Supports PROFIBUS Transmission Rate (kbps) |
9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000 |
| Transmission Rate Setting |
detected automatically |
| Max Input Data Length |
240 Bytes |
| Max Output Data Length |
240 Bytes |
| Address Setting |
0~126 set by DIP switch or EEPROM |
| Supports Ethernet Protocol |
TCP/UDP Server/Client |
| Configuration |
Web Configuration |
| Ethernet |
10/100 Base-TX |
| Indicators |
PWR, ERR, and RUN LEDs |
| Network Isolation Protection |
2500 Vrms High Speed iCoupler |
| DC Isolation Protection |
3000 VDC on PROFIBUS side |
|
|
|
|

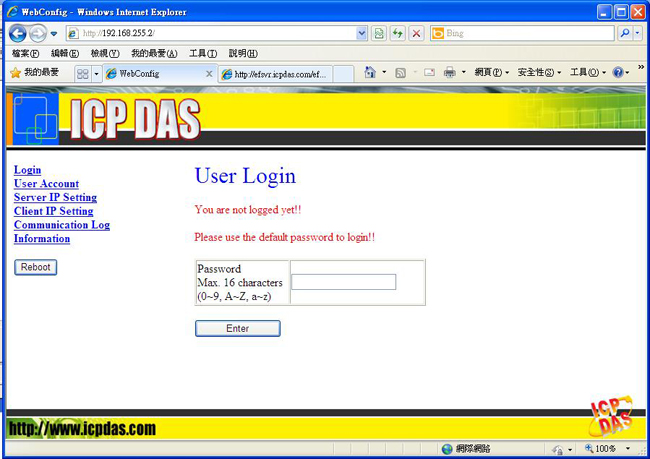

| Web-based Administration |
|
|
|
- Provide network configuration
- Provide TCP/UDP Server/Client configuration
- Show diagnostic messages and device information
- Show communication log between I-7550E and Ethernet devices
|
|
|
|
| Ethernet Protocol Support |
|
|
|
| TCP/UDP |
Server/Client
Total Maximum 8 Clients for Server mode
Total Maximum 8 remotes for Client mode |
|
|
|
|
| Hardware Specifications |
|
|
|
| Hardware |
| CPU |
80186, 80 MHz or compatible |
| SRAM/Flash/EEPROM |
512 KB / 512 KB / 16 KB |
| Watchdog |
Watchdog IC
CPU built-in |
| ESD Protection |
4 kV class A |
| PROFIBUS Interface |
| Controller |
Profichip VPC3+C |
| Transceiver |
ADI ADM2486 |
| Connector |
9-pin female D-Sub |
| Baud Rate (bps) |
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Transmission Distance (m) |
Depend on baud rate (for example, max. 1200 m at 9.6 kbps ) |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol |
DP-V0 |
| UART Interface |
| COM |
RS-232 (For updating firmware) |
| COM Connector |
5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND ) |
| Baud Rate (bps) |
115200 |
| Data bit |
8 |
| Stop bit |
1 |
| Parity |
None |
| Ethernet Interface |
| Controller |
10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) |
| Connector |
RJ-45 with LED indicator |
| LED |
| Round LED |
PWR LED, RUN LED, ERR LED |
| Power |
| Power supply |
Unregulated +10 ~ +30 VDC |
| Protection |
Power reverse polarity protection, Over-voltage brown-out protection |
| Power Consumption |
2.5 W |
| Mechanism |
| Installation |
DIN-Rail |
| Dimensions |
72mm x 33mm x 119mm (W x L x H) |
| Environment |
| Operating Temp. |
-25 ~ 75 ℃ |
| Storage Temp. |
-30 ~ 85 ℃ |
| Humidity |
5 ~ 95% RH, non-condensing |
|
|
|
|
| Ordering Information |
|
|
|
I-7550E CR
|
PROFIBUS/Ethernet Converter(RoHS) |
I-7550E-M CR
|
PROFIBUS/Ethernet Converter(RoHS) (Metal casing) |
|
|
| |
|
